Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

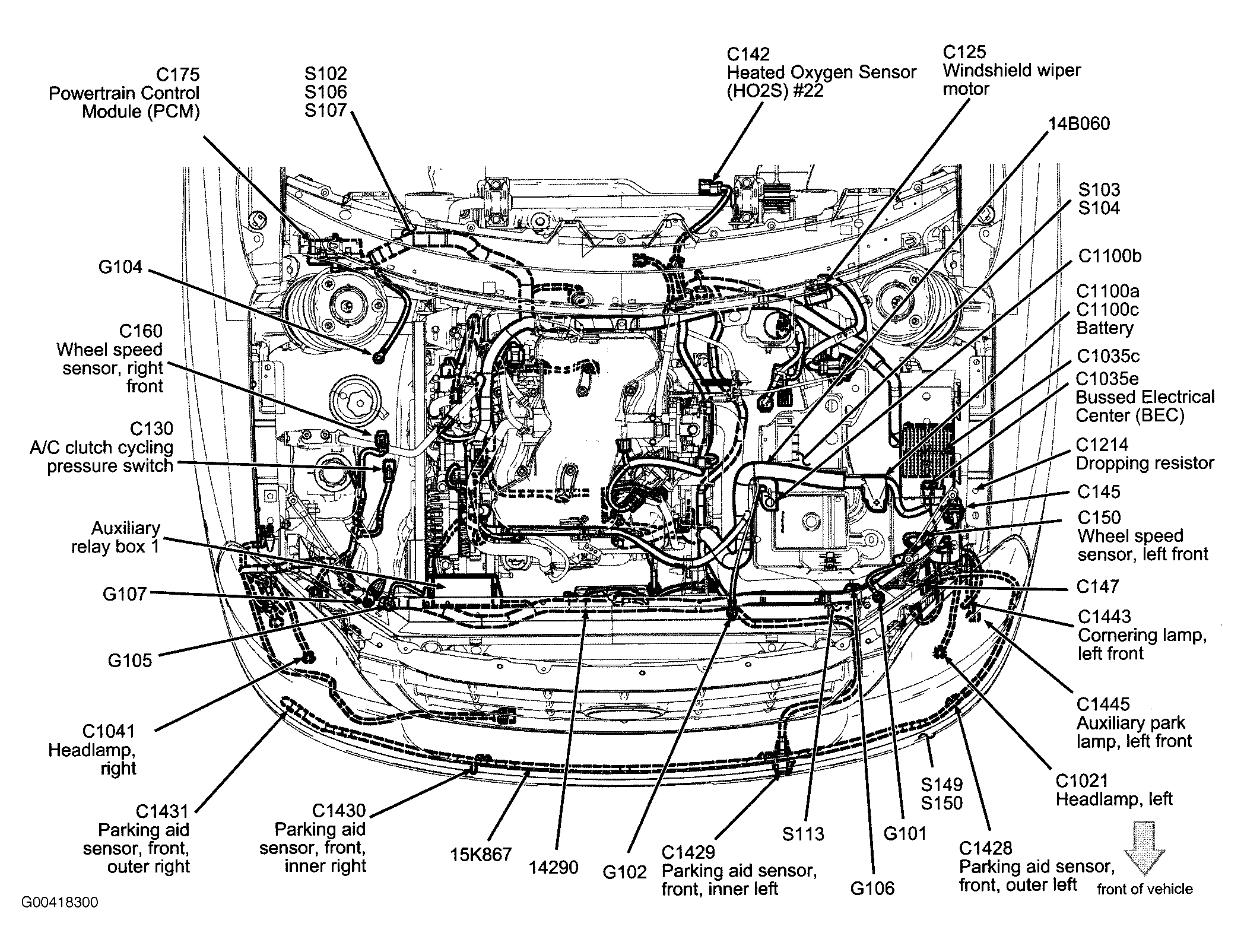

| S102 | In engine control sensor & fuel charge harness, near breakout to G104. See Figure. |
| S103 | In dash to headlight junction harness, in breakout to battery. See Figure. |
| S104 | In dash to headlight junction harness, in breakout to battery. See Figure. |

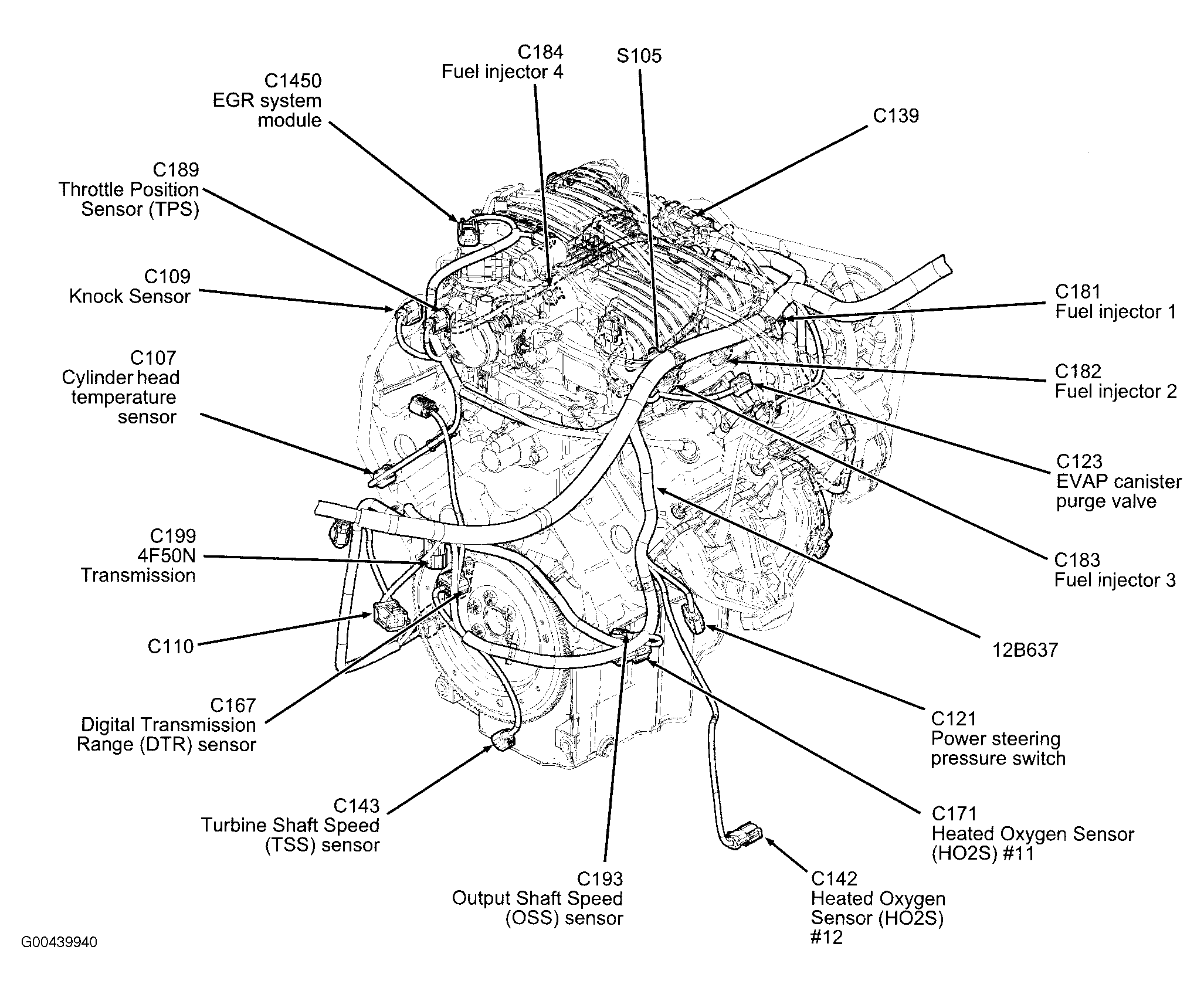

| S105 | In engine control sensor & fuel charge harness, near breakout to evap canister purge valve. See Figure. |
| S106 | In engine control sensor & fuel charge harness, near breakout to G104. See Figure. |
| S107 | In engine control sensor & fuel charge harness, near breakout to G104. See Figure. |

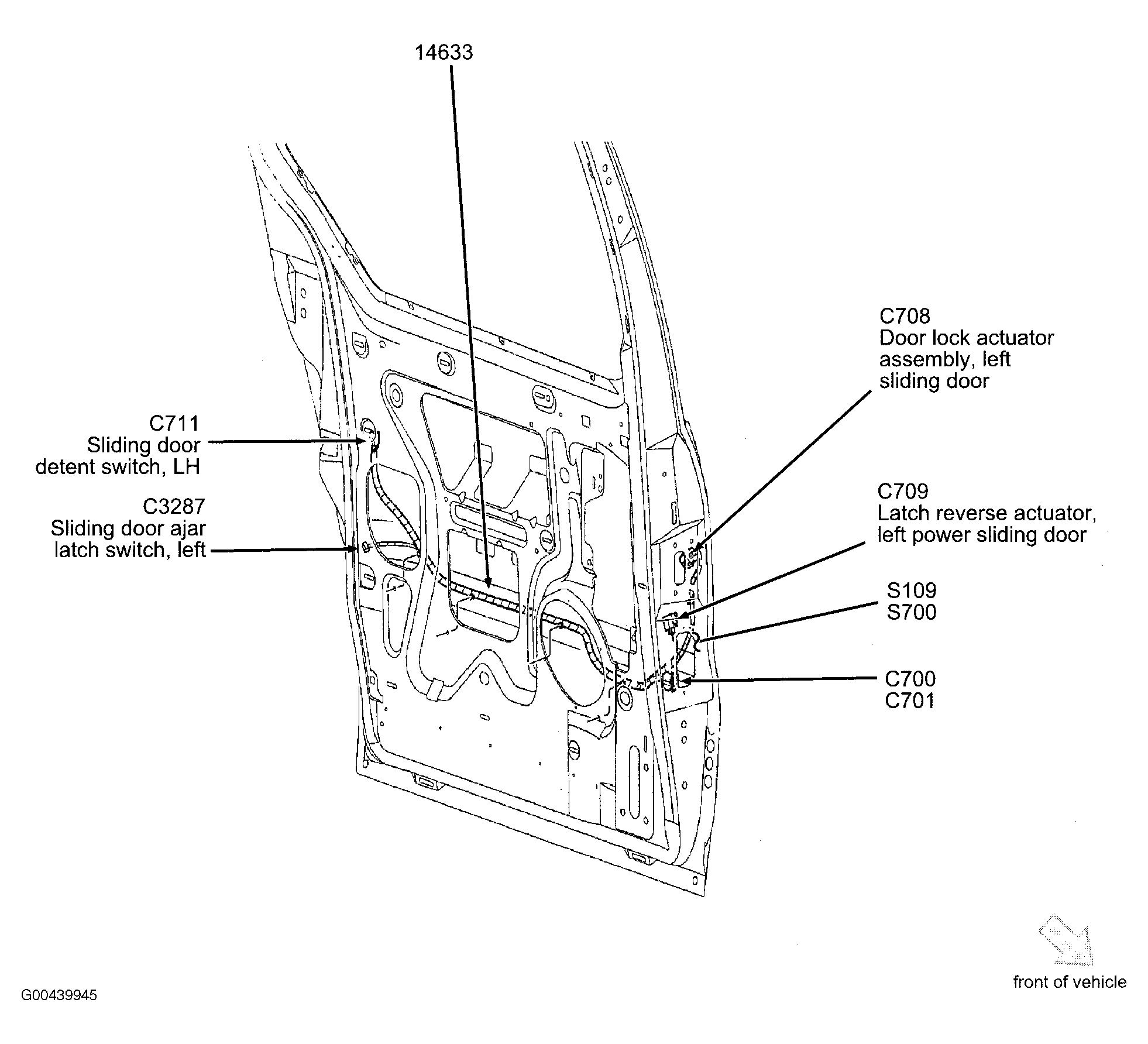

| S109 | In left rear door window regulator harness, near breakout to left power sliding door latch reverse actuator. See Figure. |

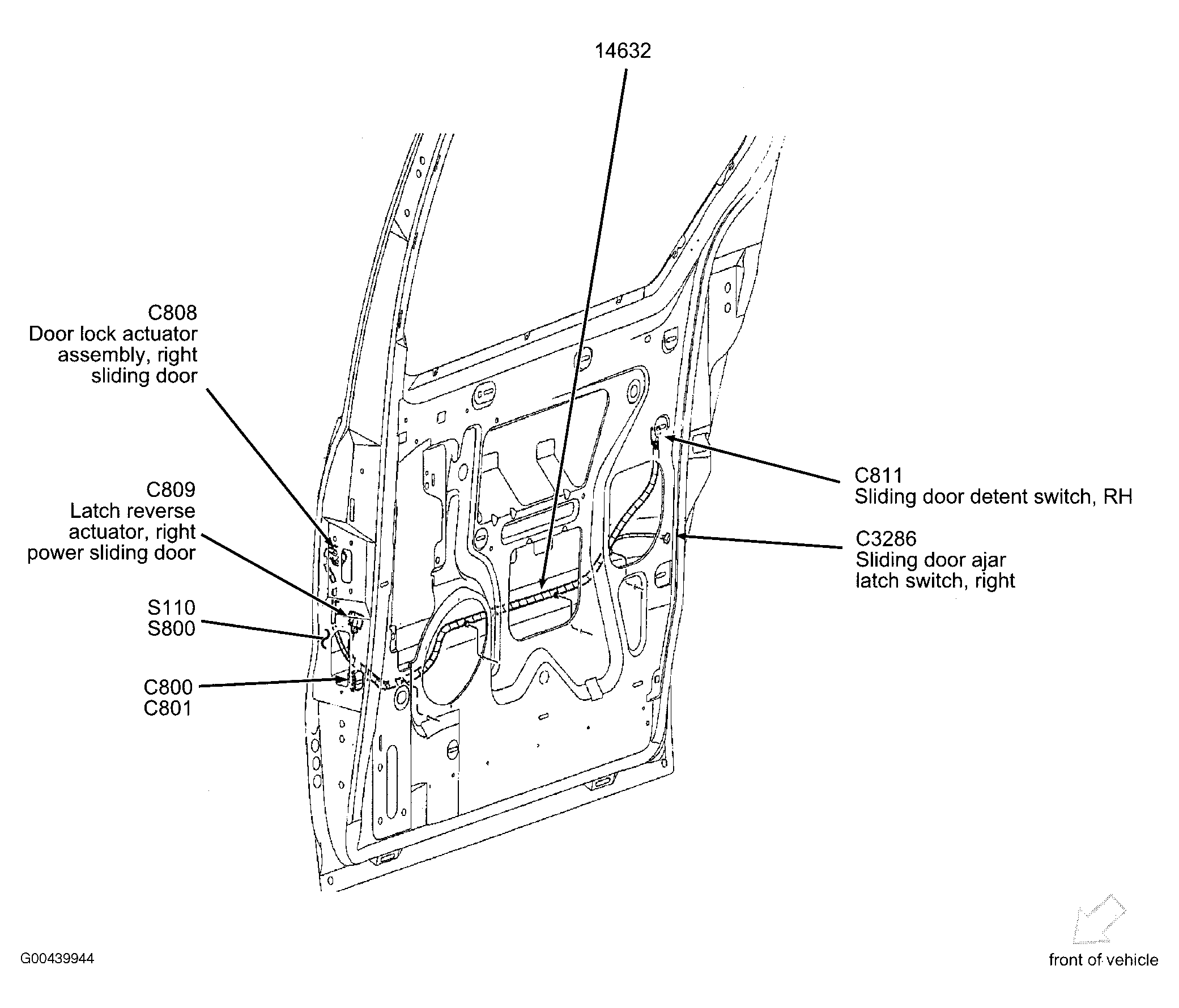

| S110 | In right rear door window regulator harness, near breakout to right power sliding door latch reverse actuator. See Figure. |
| S111 | In turn signal harness, in breakout to right front side light. See Figure. |
| S113 | In dash to headlight junction harness, near breakout to C1024. See Figure. |
| S114 | In turn signal harness, in breakout to left front side light. See Figure. |

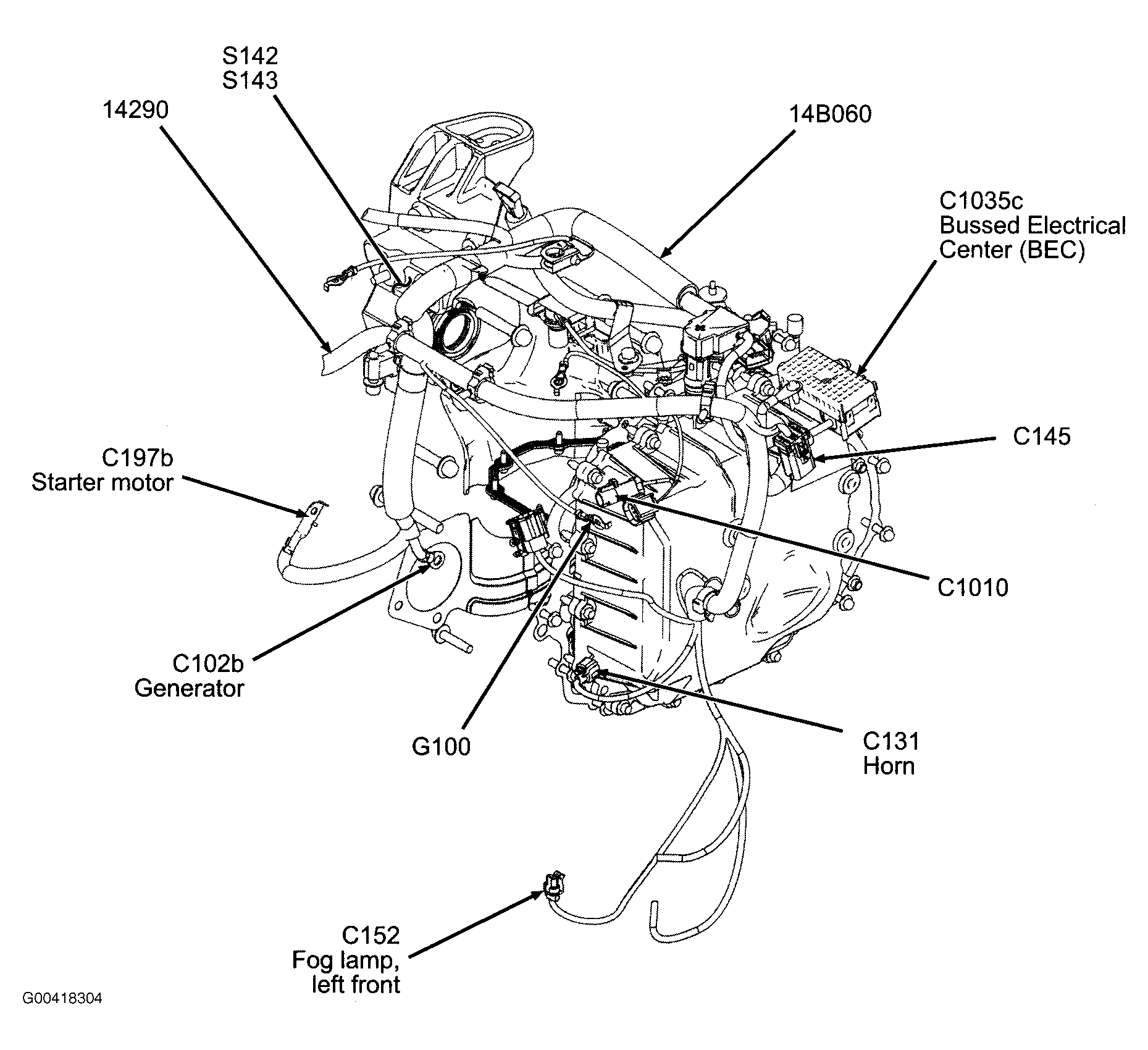

| S142 | In starter motor & battery ground harness, near breakout to generator. See Figure. |
| S143 | In starter motor & battery ground harness, near breakout to generator. See Figure. |

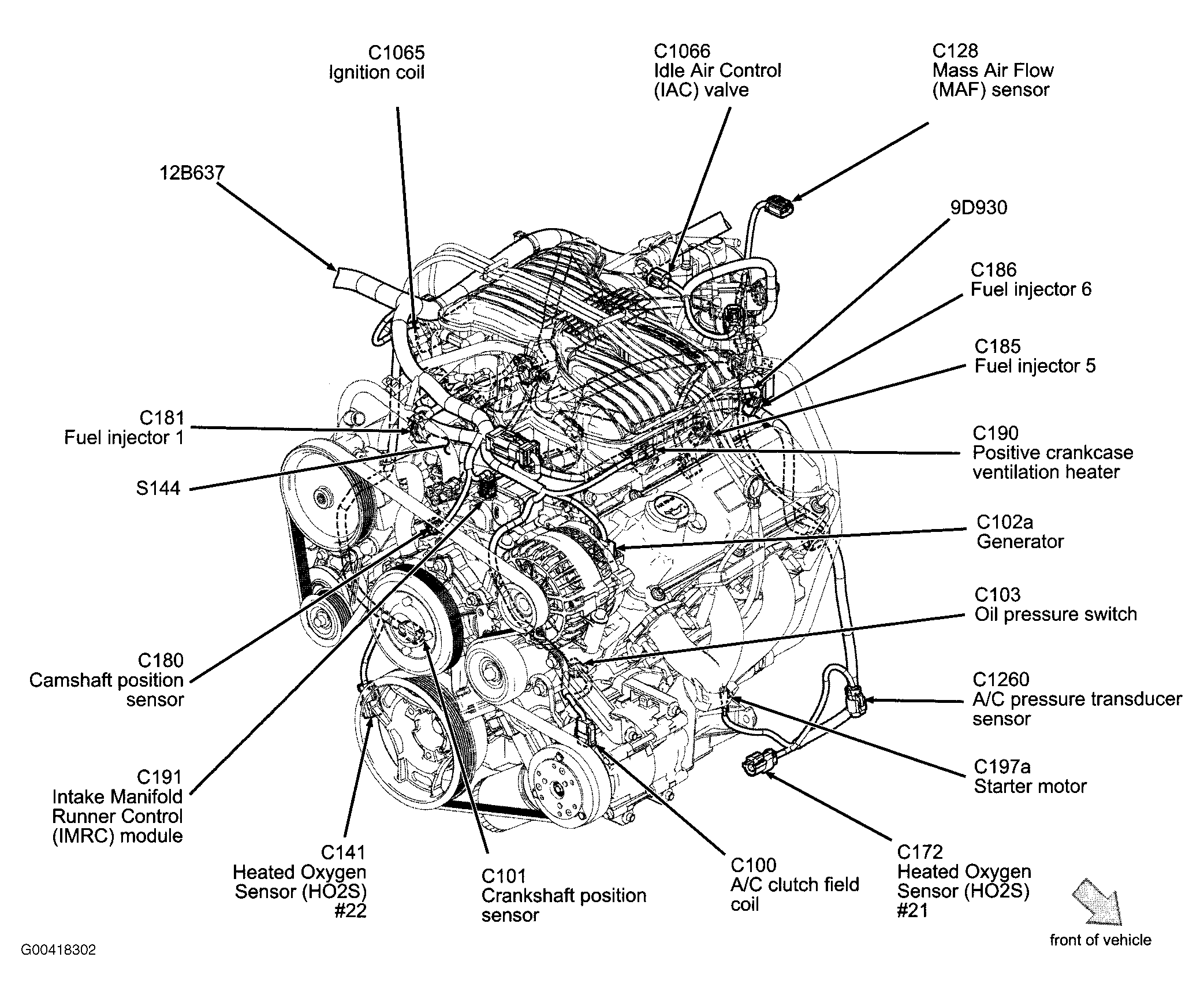

| S144 | In fuel charge harness, near breakout to C139. See Figure. |
| S149 | In front parking aid sensor harness, near breakout to left outer parking aid sensor. See Figure. |
| S150 | In front parking aid sensor harness, near breakout to left outer parking aid sensor. See Figure. |

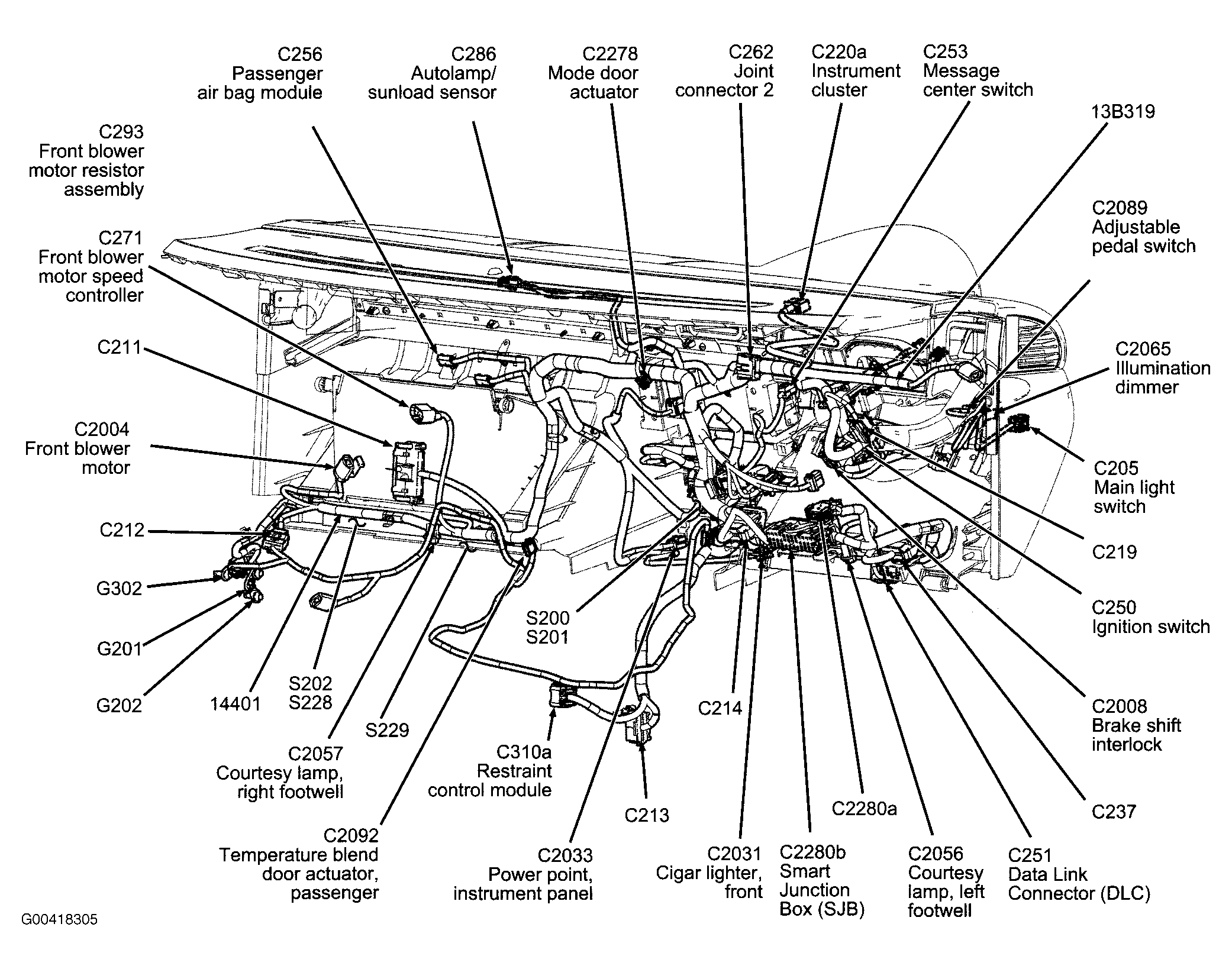

| S200 | In main harness, near breakout to C214. See Figure. |
| S201 | In main harness, near breakout to C214. See Figure. |
| S202 | In main harness, near breakout to joint connector 1. See Figure. |

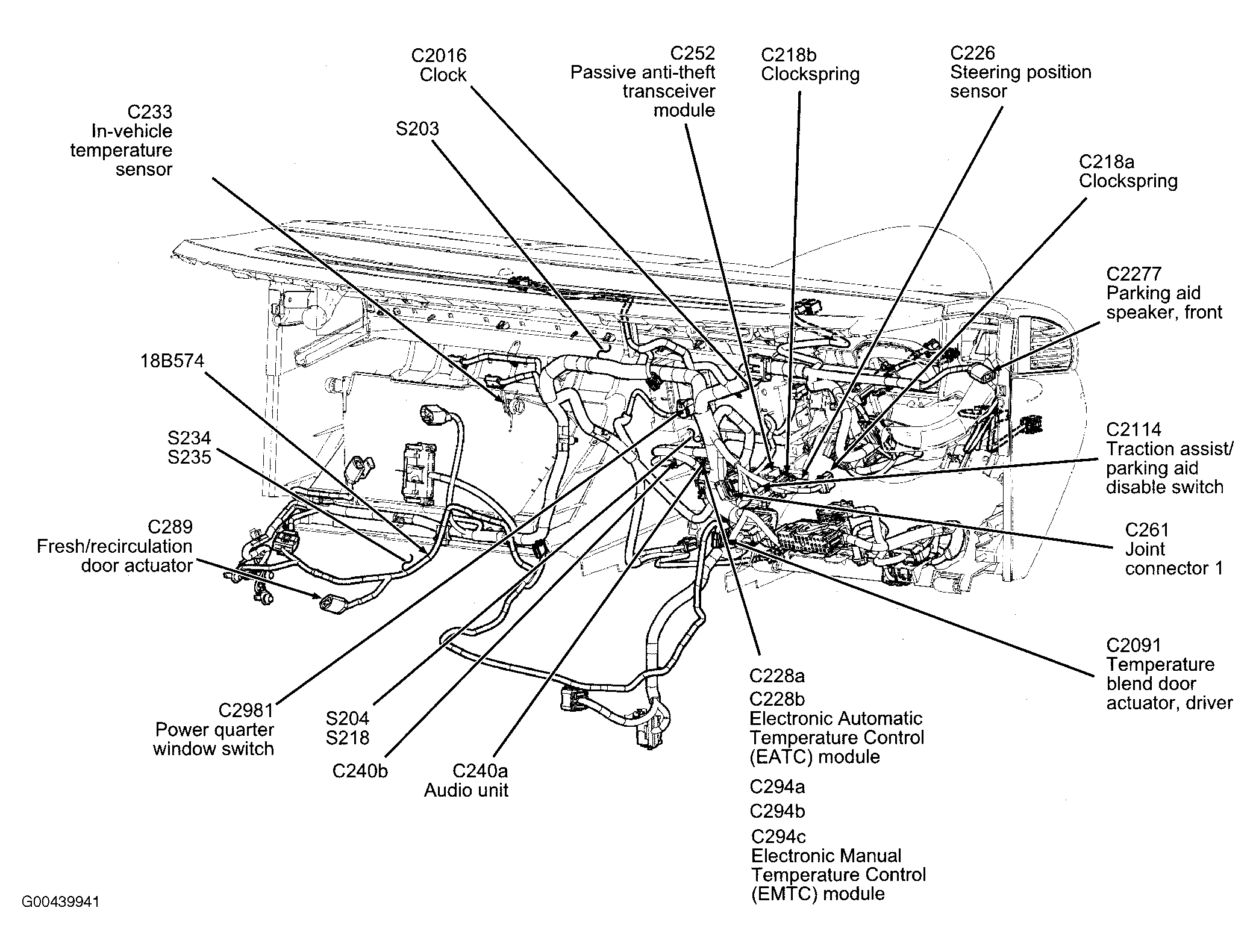

| S203 | In main harness, near breakout to passenger air bag module. See Figure. |
| S204 | In main harness, near breakout to joint connector 1. See Figure. |
| S218 | In main harness, near breakout to joint connector 1. See Figure. |
| S228 | In main harness, near breakout to joint connector 1. See Figure. |
| S229 | In main harness, near breakout to front blower motor resistor assembly. See Figure. |
| S234 | In heater blower motor harness, near breakout to C212. See Figure. |
| S235 | In heater blower motor harness, near breakout to C212. See Figure. |

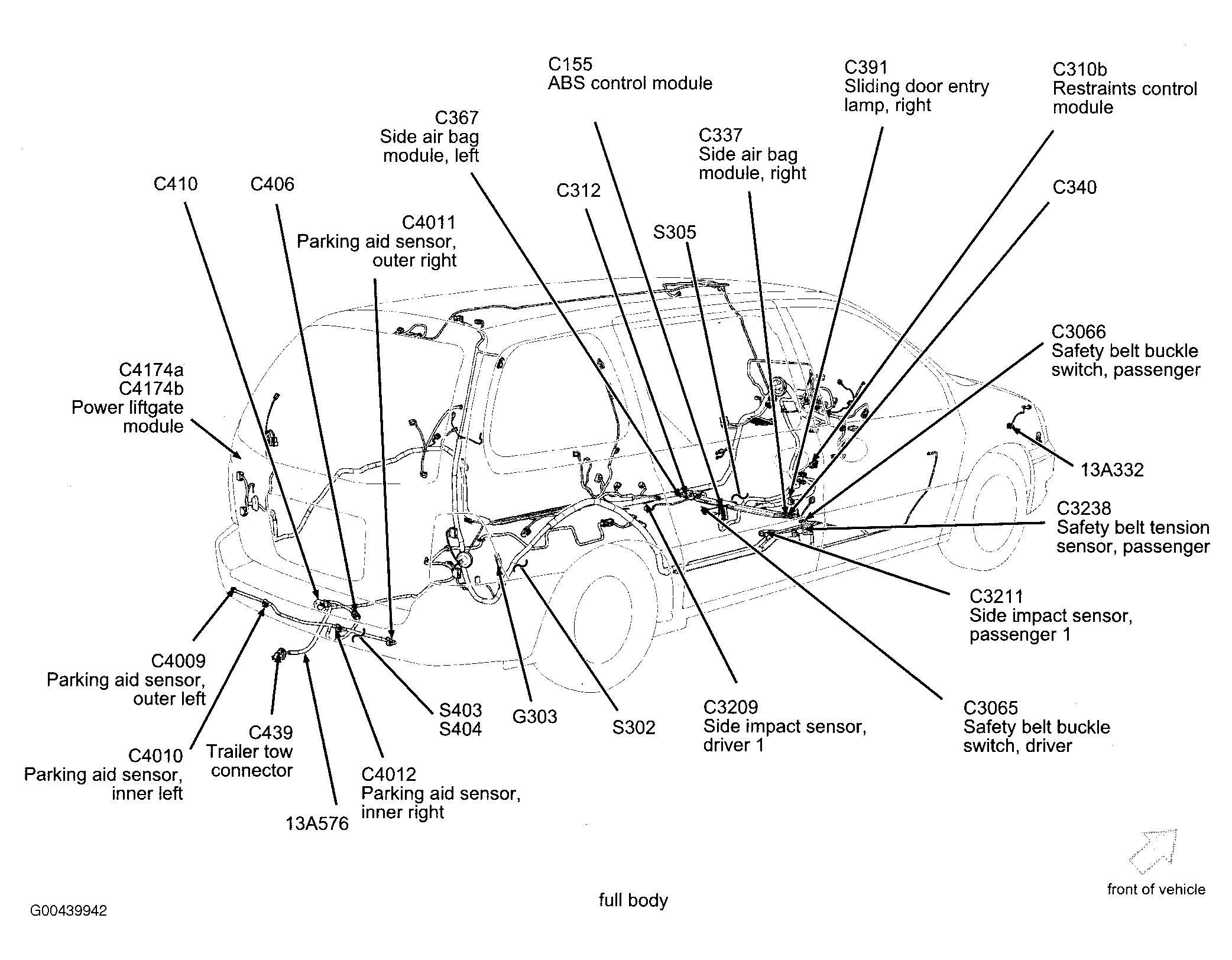

| S302 | In body main harness, near breakout for G303. See Figure. |

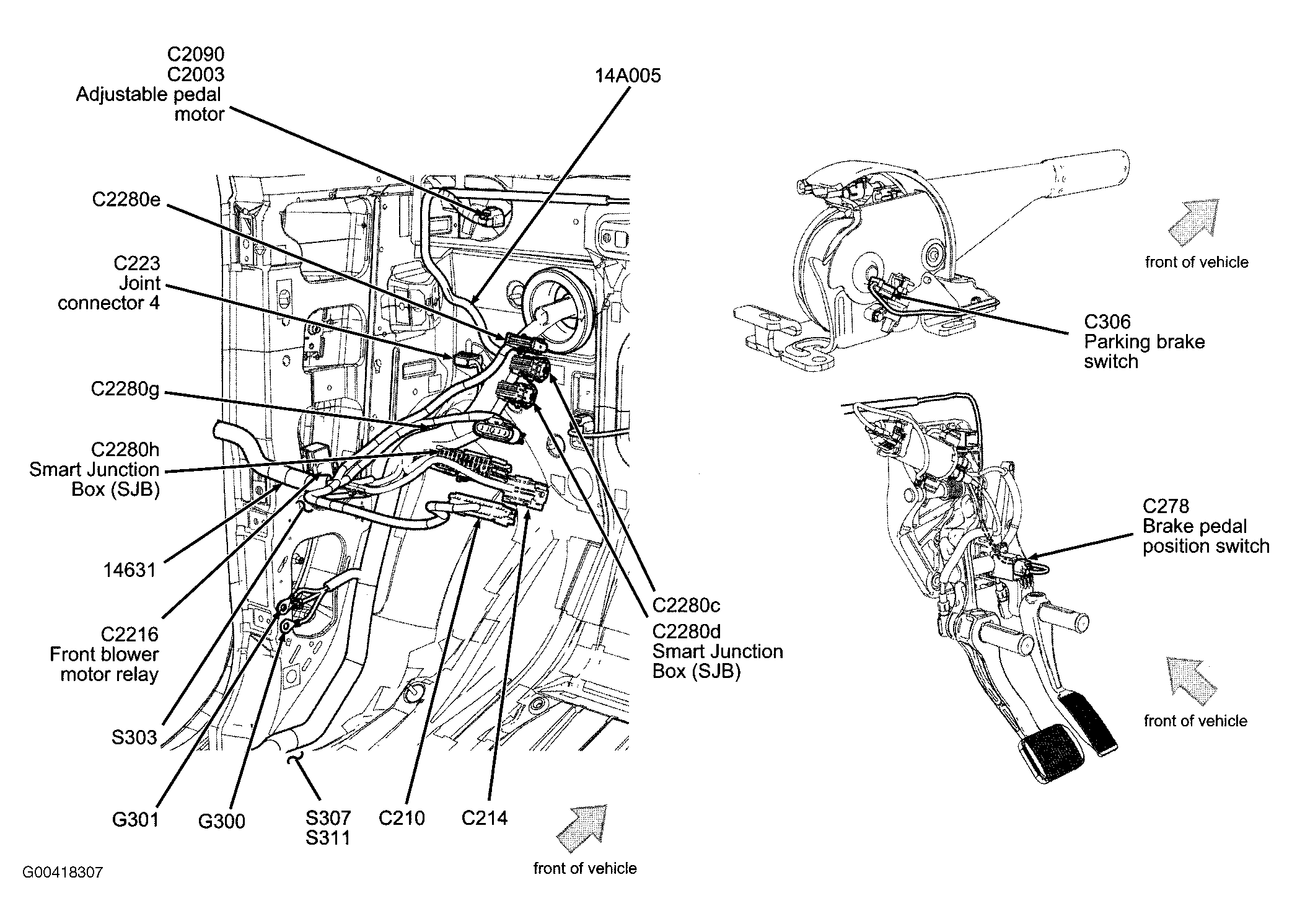

| S303 | In body main harness, near breakout to front blower motor relay. See Figure. |
| S305 | In body main harness, near breakout to C312. See Figure. |
| S307 | In body main harness, near breakout to front blower motor relay. See Figure. |

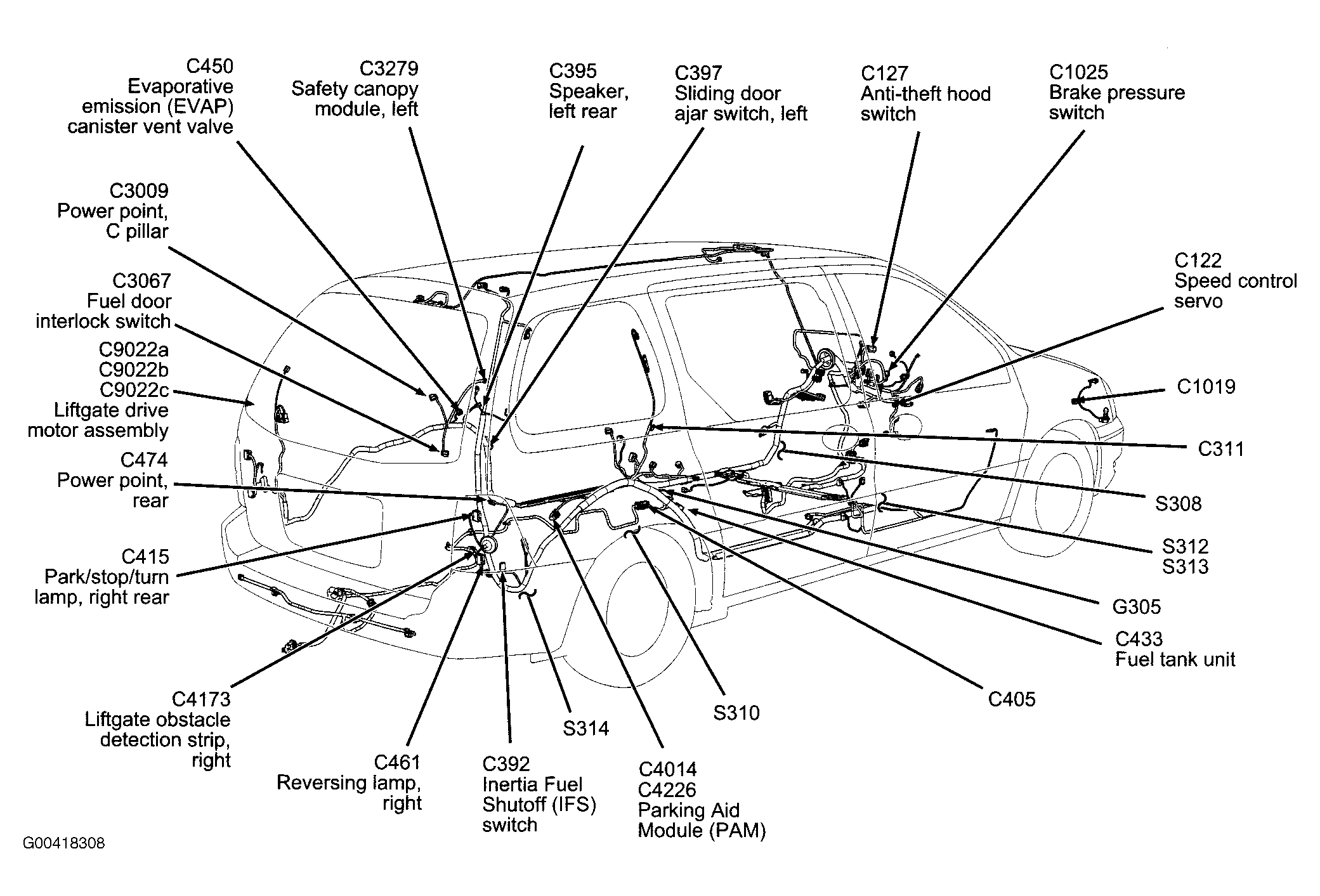

| S308 | In body main harness, near breakout to driver side impact sensor 1. See Figure. |
| S310 | In body main harness, near breakout to left side power sliding door module. See Figure. |
| S311 | In body main harness, near breakout to front blower motor relay. See Figure. |
| S312 | In body main harness, near breakout to C213. See Figure. |
| S313 | In body main harness, near breakout to C213. See Figure. |
| S314 | In body main harness, near breakout to inertia fuel shutoff switch. See Figure. |
| S315 | In body main harness, near breakout to right rear speaker. See Figure. |

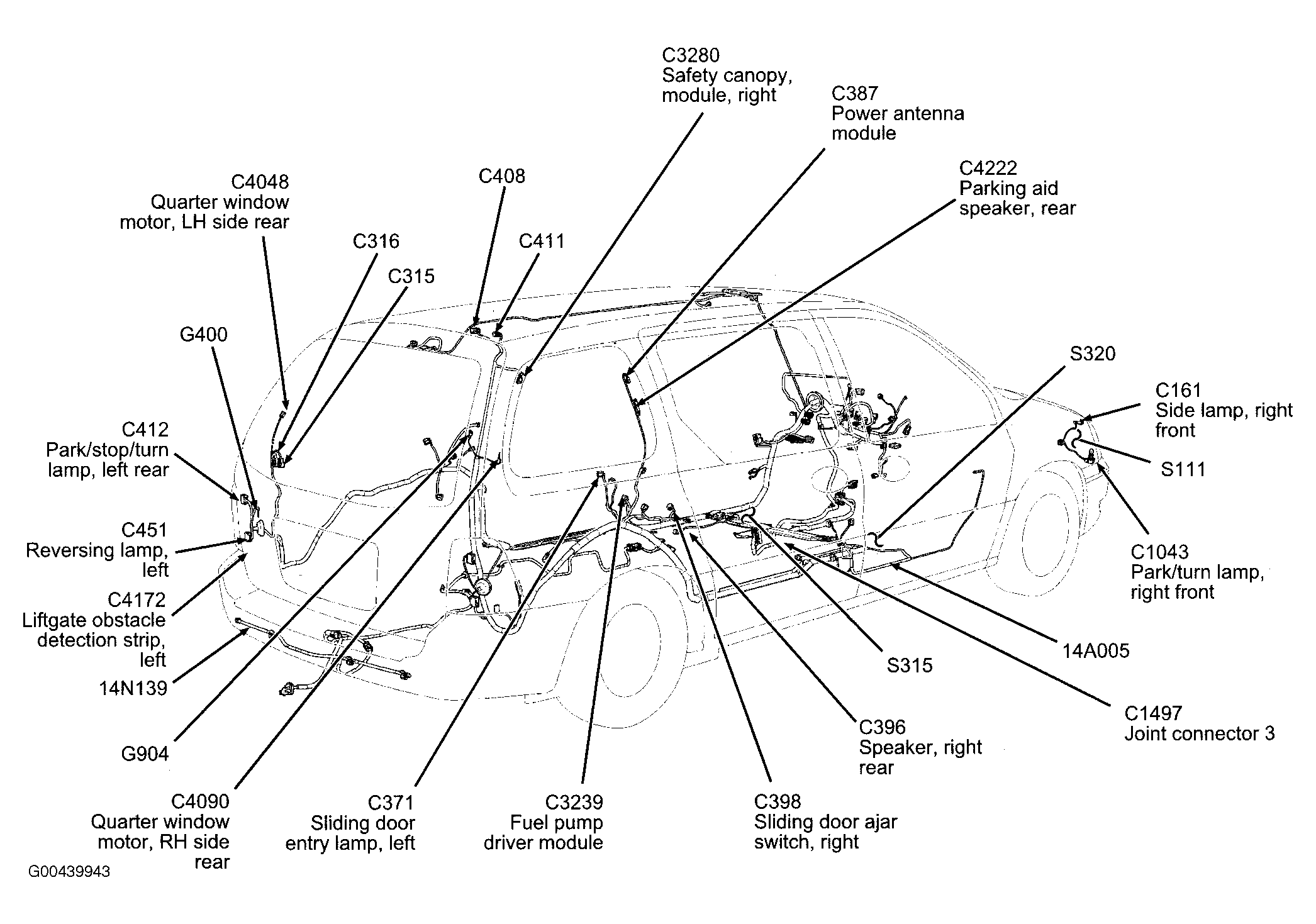

| S320 | In body main harness, near breakout to right side air bag module. See Figure. |

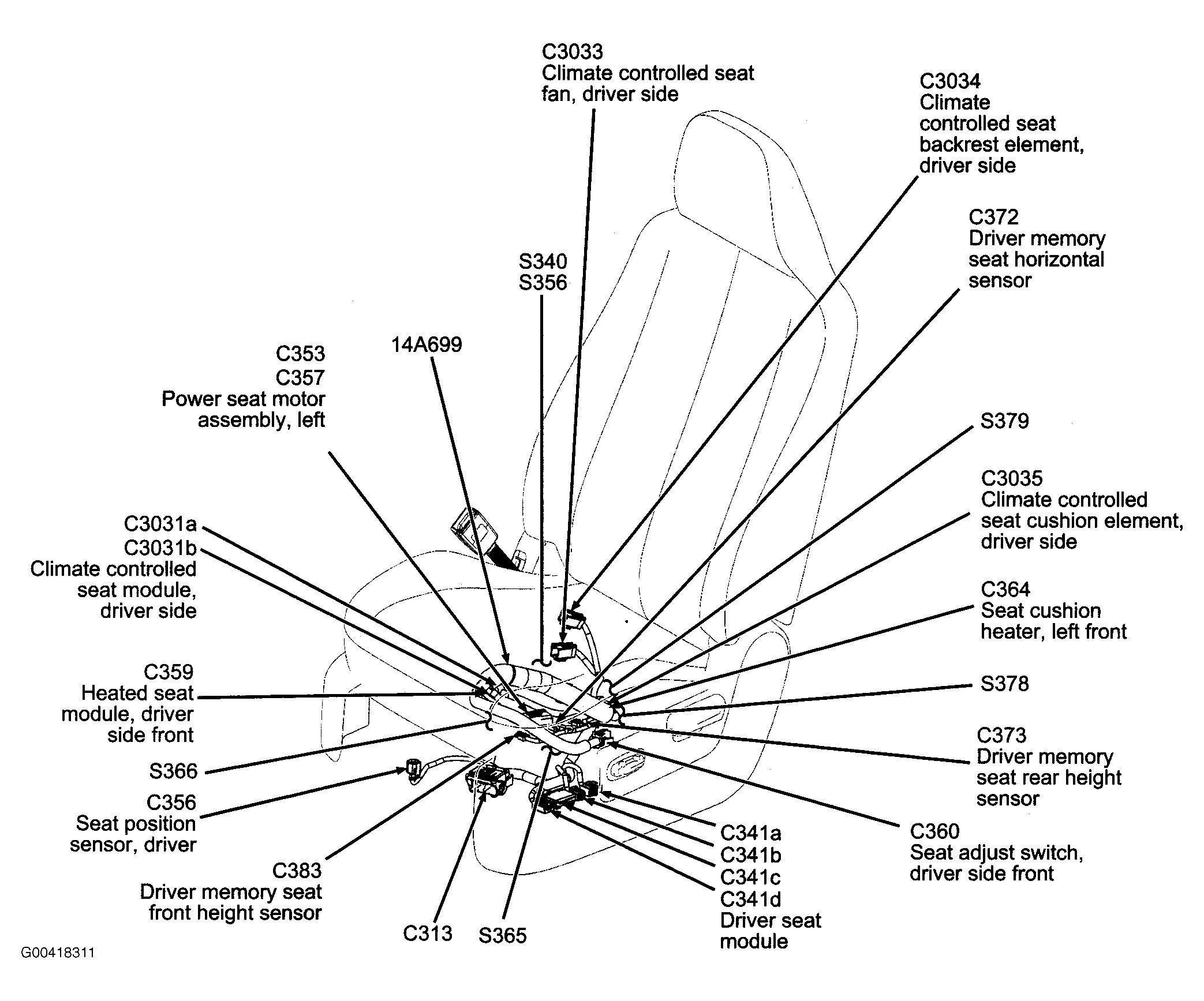

| S340 | In power seats harness, near breakout to left front seat cushion heater. See Figure. |
| S341 | In passenger seat sensor switch harness, near breakout to passenger side heated seat module. See Figure. |
| S342 | In passenger seat sensor switch harness, near breakout to passenger side heated seat module. See Figure. |

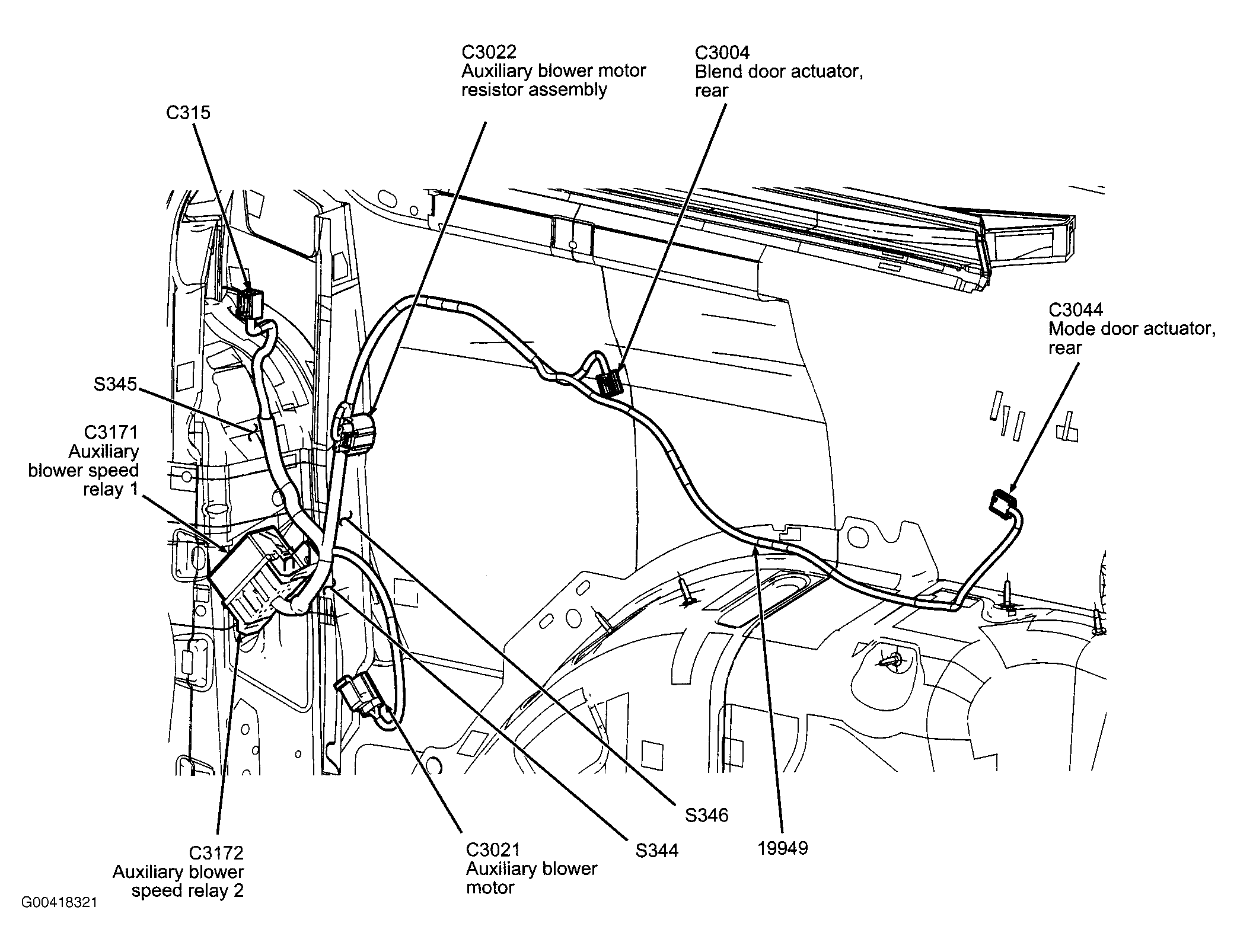

| S344 | In A/C blower motor harness, in breakout to C3172. See Figure. |
| S345 | In A/C blower motor harness, near breakout to C315. See Figure. |
| S346 | In A/C blower motor harness, near breakout to C3121. See Figure. |
| S356 | In power seats harness, near breakout to left front seat cushion heater. See Figure. |

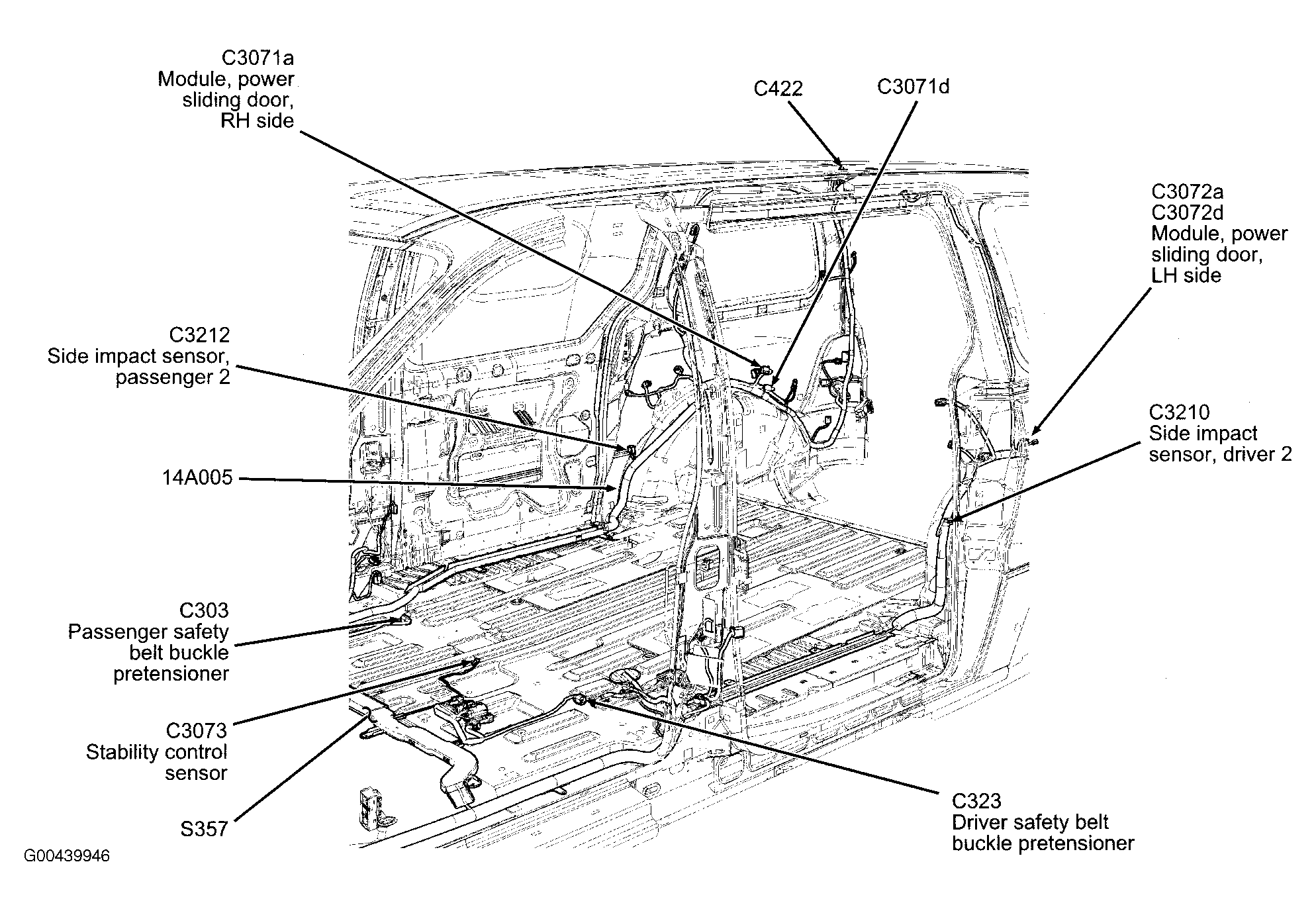

| S357 | In body main harness, near breakout to stability control sensor. See Figure. |
| S365 | In power seats harness, near breakout to driver memory seat rear height sensor. See Figure. |
| S366 | In power seats harness, near breakout to left power seat motor assembly. See Figure. |
| S378 | In power seats harness, near breakout to driver's seat module. See Figure. |
| S379 | In power seats harness, near breakout to left front seat cushion heater. See Figure. |

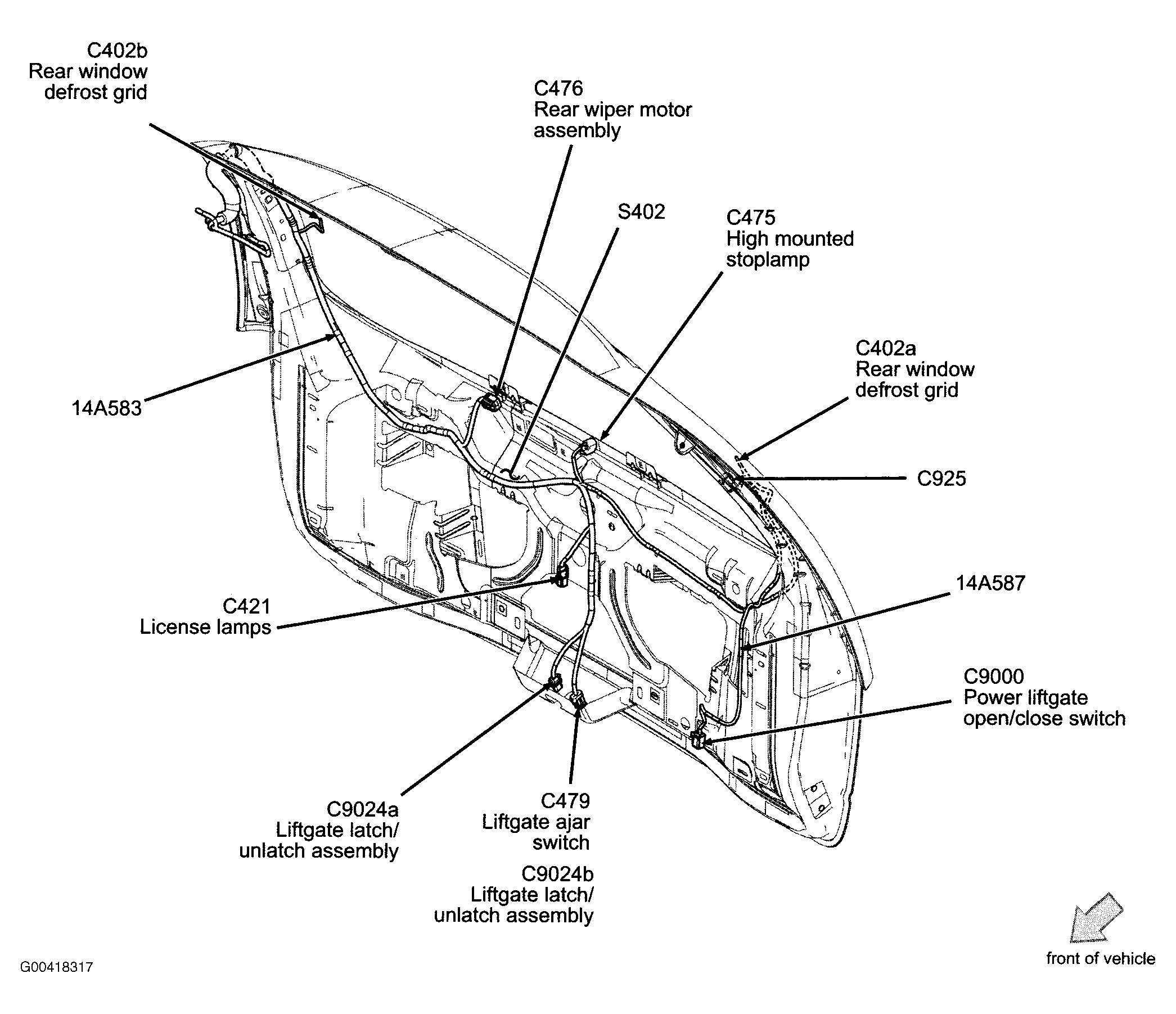

| S402 | In tailgate warning switch harness, near breakout to high mounted stop light. See Figure. |
| S403 | In backup alarm jumper harness, in breakout for C406. See Figure. |
| S404 | In backup alarm jumper harness, in breakout for C406. See Figure. |

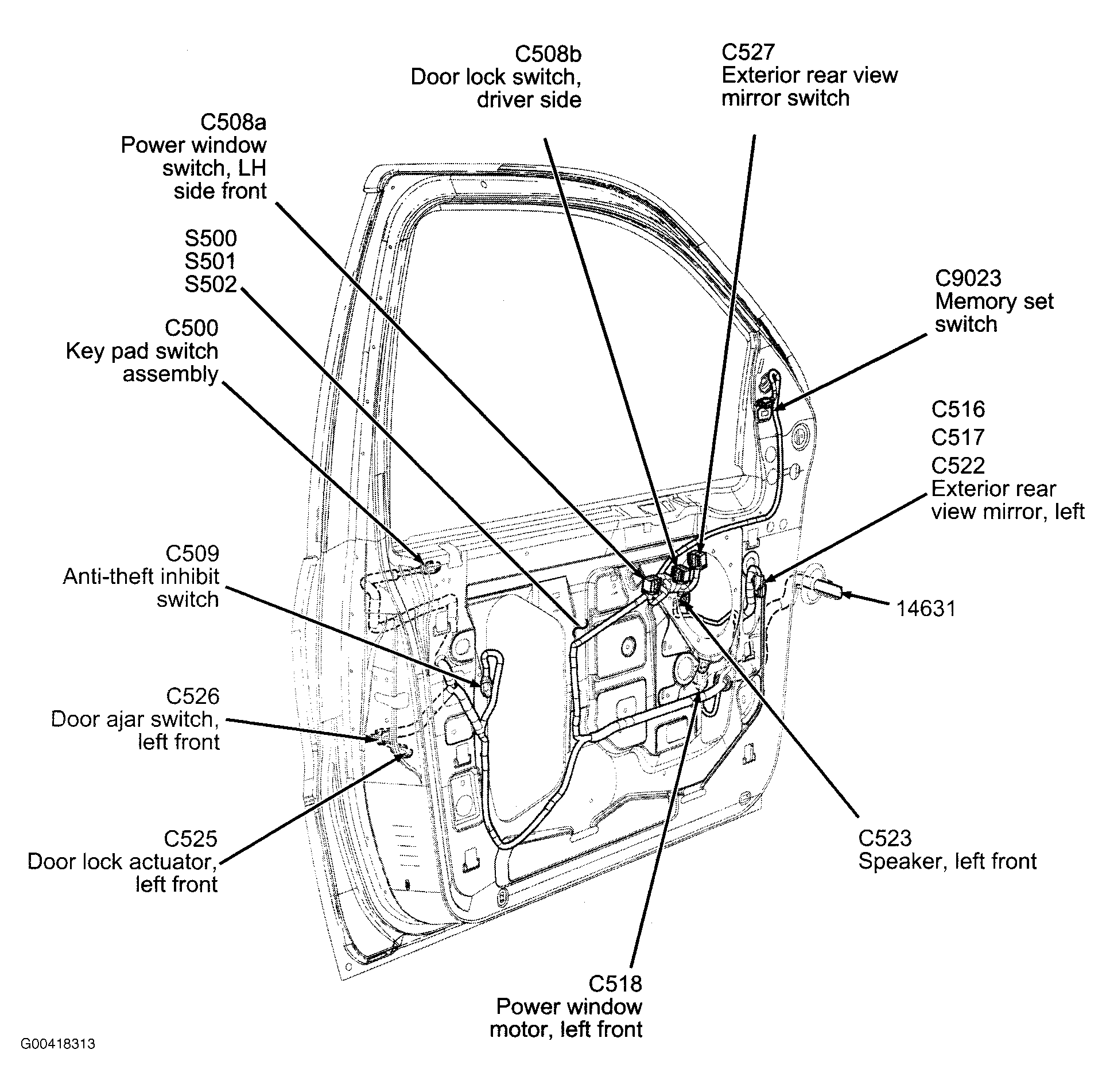

| S500 | In left front door window regulator harness, near breakout to exterior mirror switch. See Figure. |
| S501 | In left front door window regulator harness, near breakout to exterior mirror switch. See Figure. |
| S502 | In left front door window regulator harness, near breakout to exterior mirror switch. See Figure. |

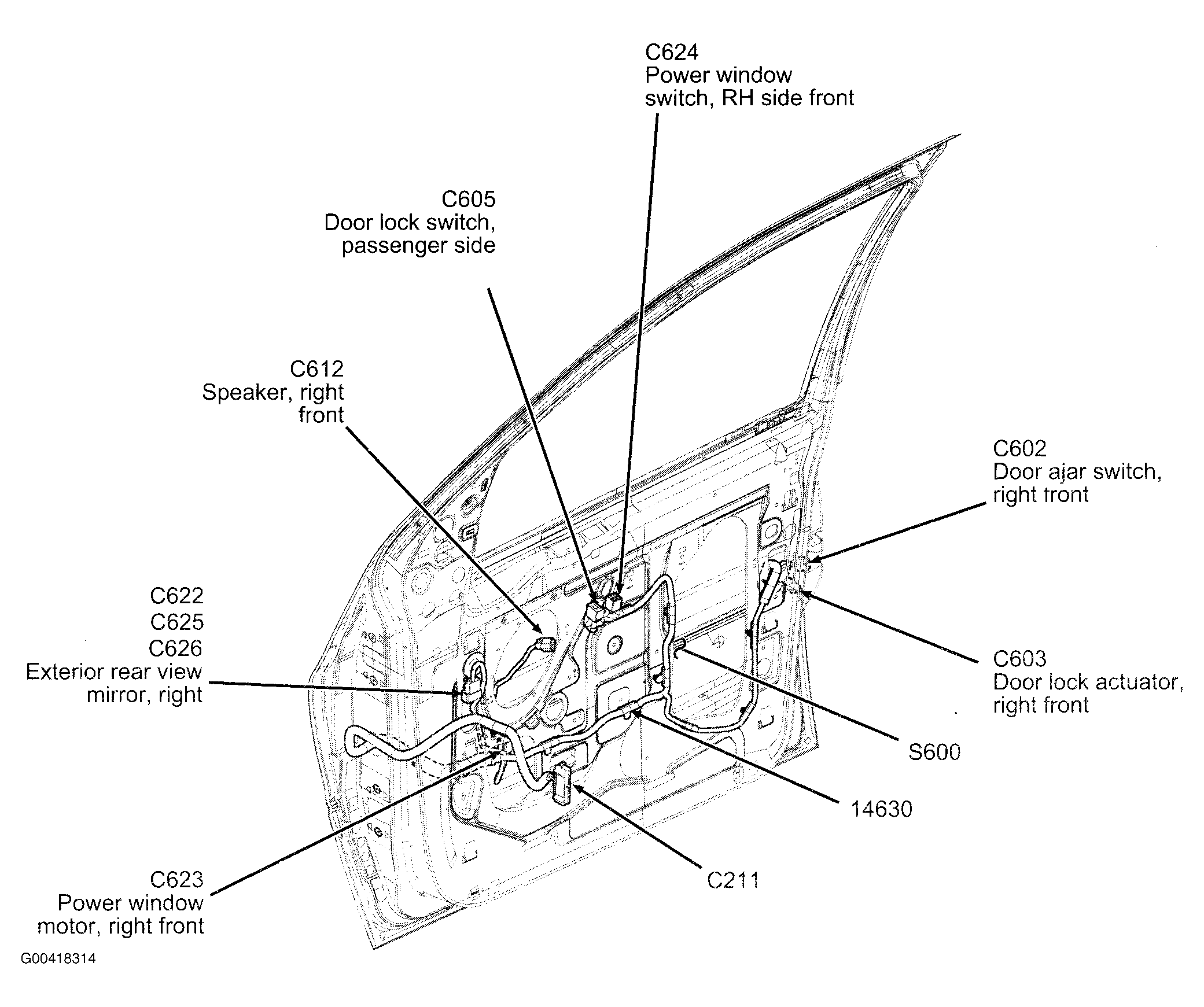

| S600 | In right front door window regulator harness, near breakout to power window switch. See Figure. |
| S700 | In left rear door window regulator harness, near breakout to left power sliding door latch reverse actuator. See Figure. |
| S800 | In right rear door window regulator harness, near breakout to right power sliding door latch reverse actuator. See Figure. |

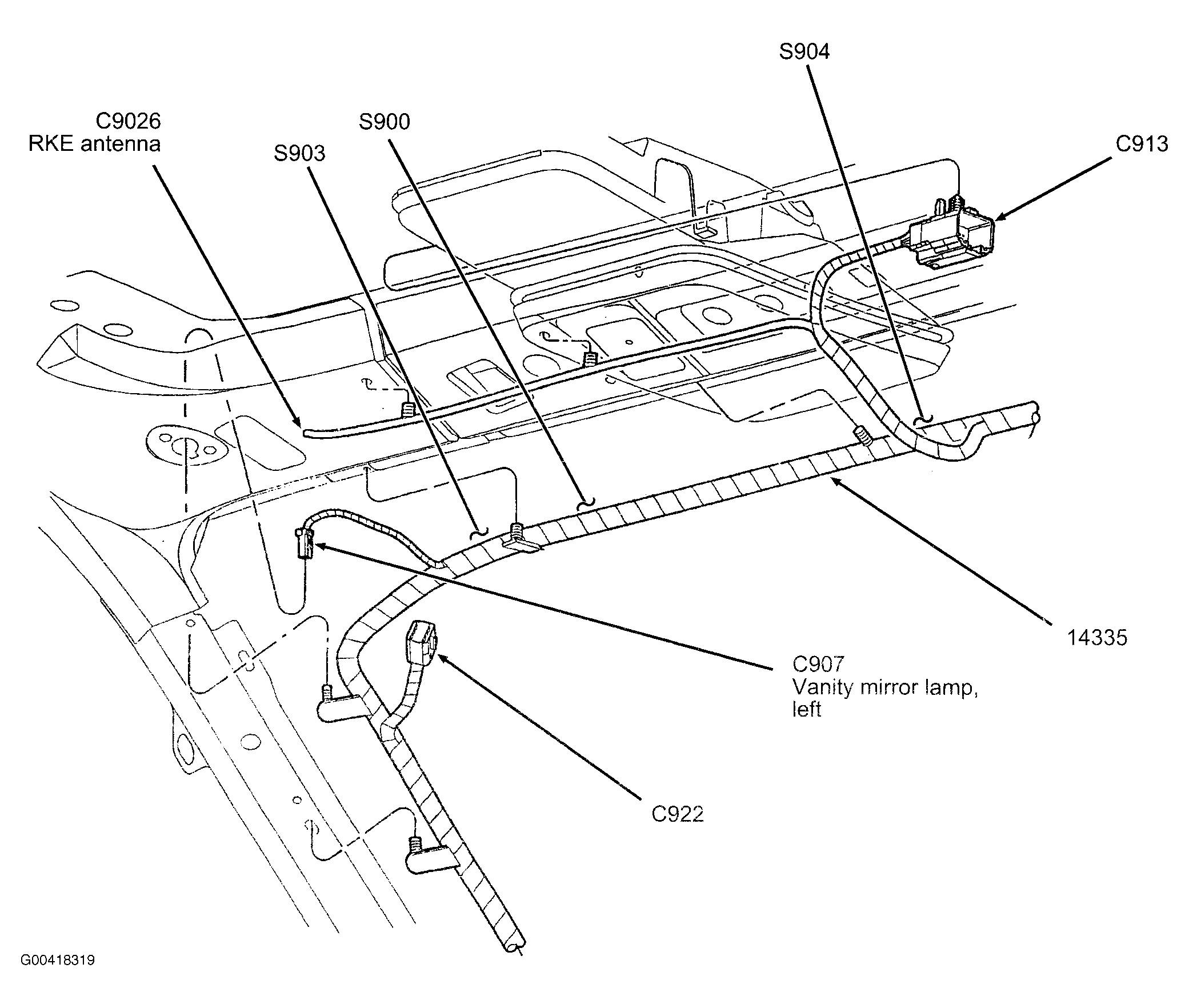

| S900 | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |

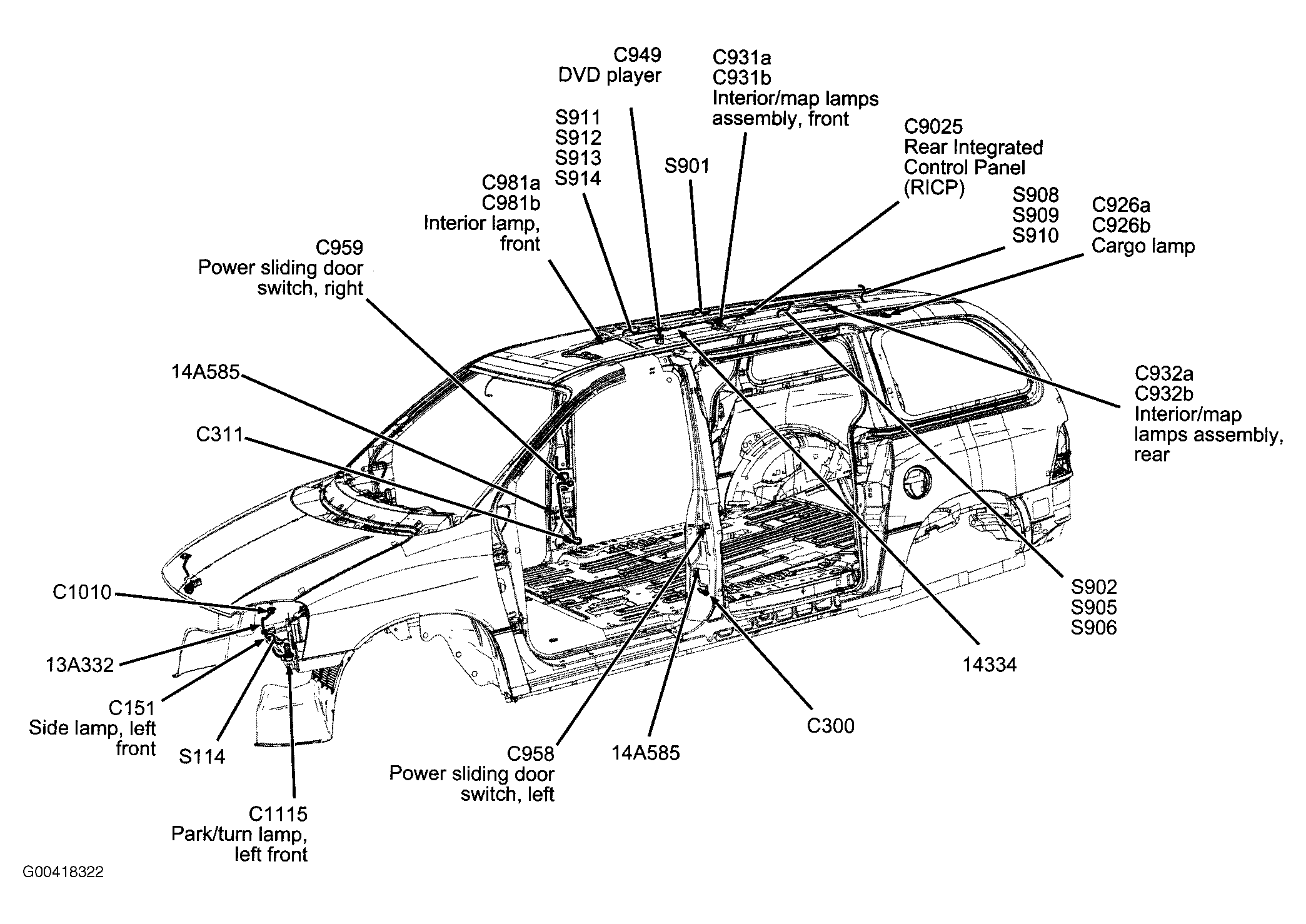

| S901 | In interior lights harness, near breakout to rear integrated control panel. See Figure. |
| S902 | In interior lights harness, near breakout to rear integrated control panel. See Figure. |
| S903 | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |
| S904 | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |
| S905 | In interior lights harness, near breakout to rear integrated control panel. See Figure. |
| S906 | In interior lights harness, near breakout to rear integrated control panel. See Figure. |

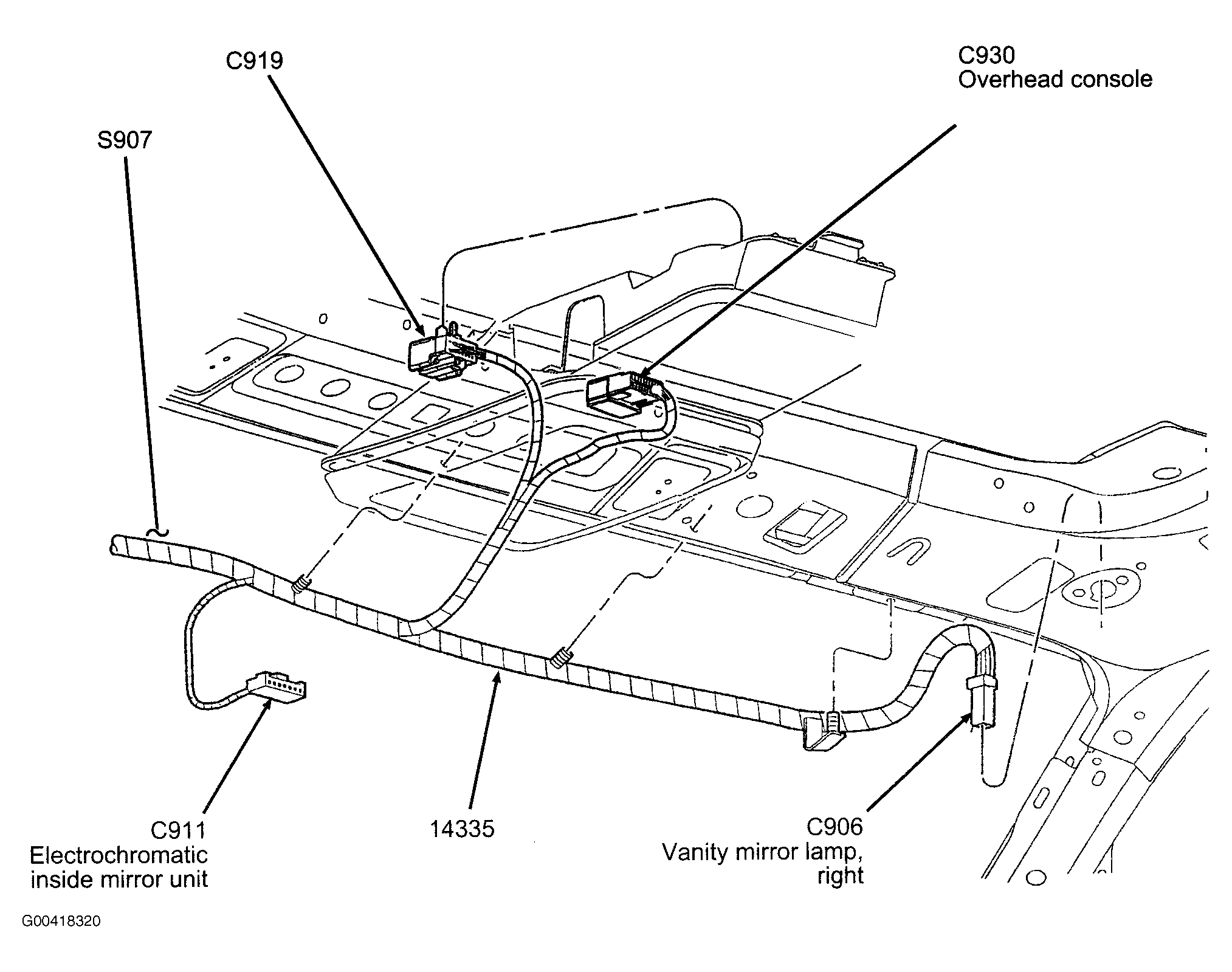

| S907 | In interior illumination harness, near breakout to electrochromatic inside mirror unit. See Figure. |
| S908 | In interior lights harness, near breakout to rear integrated control panel. See Figure. |
| S909 | In interior lights harness, near breakout to rear integrated control panel. See Figure. |
| S910 | In interior lights harness, near breakout to rear integrated control panel. See Figure. |
| S911 | In interior lights harness, near breakout for C919. See Figure. |
| S912 | In interior lights harness, near breakout for C919. See Figure. |
| S913 | In interior lights harness, near breakout for C919. See Figure. |
| S914 | In interior lights harness, near breakout for C919. See Figure. |
