Engine Mounts - Exploded View

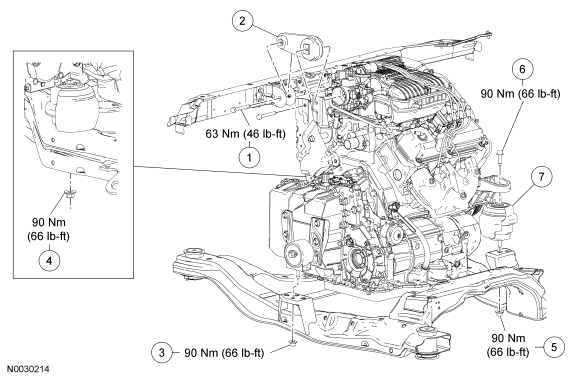

Fig 1: Exploded View Of Transaxle & Engine Mounts With Torque Specifications
GF0033065Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W560727 Engine roll restrictor bolt (2 required)
2 6F050 Engine roll restrictor
3 W705605 Transaxle support insulator nut
4 W705605 LH engine mount nut
5 W705605 RH engine mount nut
6 W500643 RH engine mount bolt
7 6068 RH engine mount

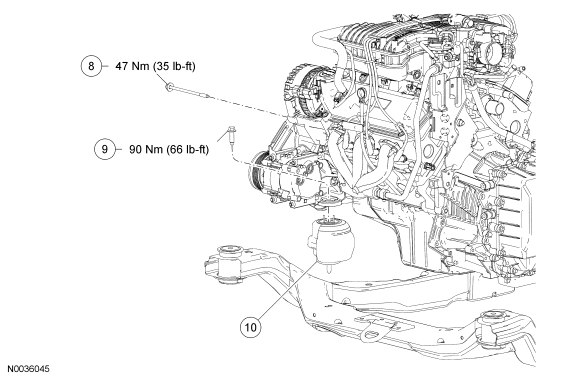

Fig 2: Exploded View Of Left Engine Mount With Torque Specifications
GF0033066Courtesy of FORD MOTOR CO.
Item Part Number Description
8 W707116 Generator brace bolt
9 W500643 LH engine mount bolt
10 6038 LH engine mount
  1. For additional information, refer to the following procedures.
