Lower End Components - Exploded View

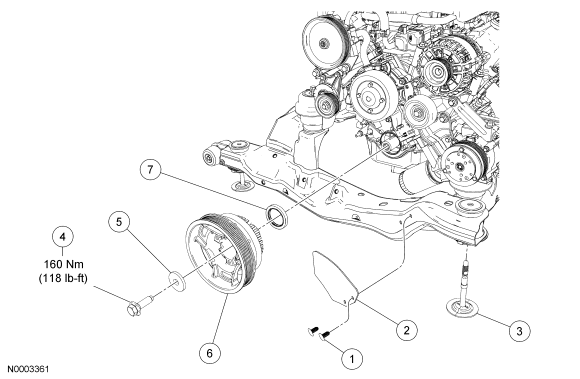

Fig 1: Exploded View Of Crankshaft Pulley & Front Seal With Torque Specifications
GF0033025Courtesy of FORD MOTOR CO.
Item Part Number Description
1 388930 Pin-type retainer (2 required)
2 16102 Shield
3 N808852 Subframe bolt (2 required)
4 6A340 Crankshaft pulley bolt
5 6378 Crankshaft pulley washer
6 6B321 Crankshaft pulley
7 6700 Crankshaft front seal

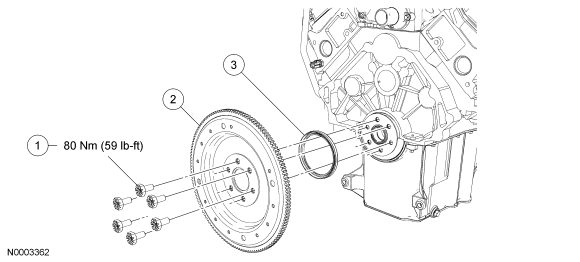

Fig 2: Exploded View Of Flexplate & Crankshaft Rear Seal With Torque Specifications
GF0033026Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707770 Flexplate bolt (6 required)
2 6375 Flexplate
3 6701 Crankshaft rear seal
  1. For additional information, refer to the following procedures.
