Lower Intake Manifold: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Motorcraft Metal Surface Cleaner ZC-21 |
WSE-M5B392-A |

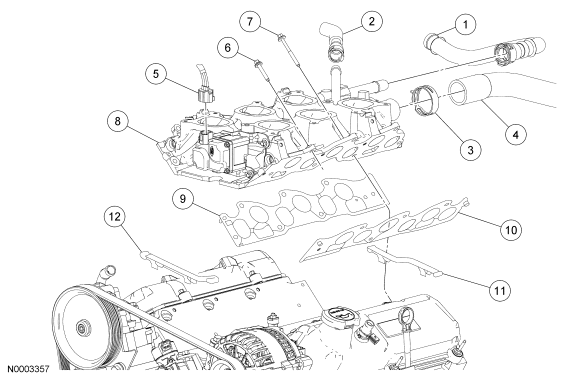

| Item | Part Number | Description |
|---|---|---|
| 1 | 18472 | Heater hose |
| 2 | 18472 | Heater hose |
| 3 | 8287 | Upper radiator hose clamp |
| 4 | 8260 | Upper radiator hose |
| 5 | 12B637 | Intake manifold runner control (IMRC) electrical connector |
| 6 | W701568 | Lower intake manifold bolt (short, 8 required) |
| 7 | W701569 | Lower intake manifold bolt (long, 6 required) |
| 8 | 9424 | Lower intake manifold |
| 9 | 9439 | RH lower intake manifold gasket |
| 10 | 9439 | LH lower intake manifold gasket |
| 11 | 9A424 | Lower intake manifold rear seal |
| 12 | 9A425 | Lower intake manifold front seal |
