Steering Column - Exploded View

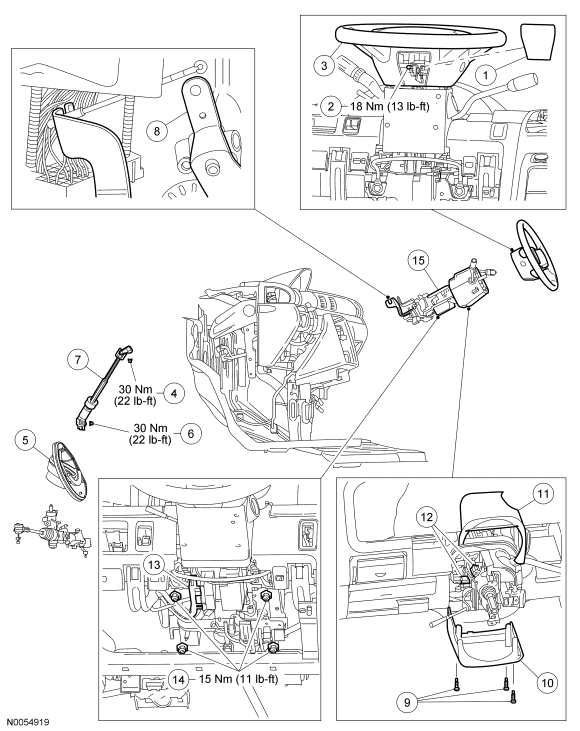

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering wheel access cover (part of 3600)
2	-	Steering wheel bolt gear drive (part of 3600)
3	3600	Steering wheel
4	N808349	Upper steering column-to-intermediate shaft bolt
5	-	Intermediate shaft dust boot
6	N808349	Lower intermediate shaft-to-steering gear bolt
7	3C662	Intermediate shaft
8	7E395	Transaxle shift cable
9	55929	Lower steering column shroud screws (3 required)
10	3533	Lower steering column shroud
11	3530	Upper steering column shroud
12	-	Multi-function switch electrical connectors (part of 14401)
13	-	Ignition switch electrical connector (part of 14401)
14	N806423	Steering column-to-instrument panel nuts (4 required)
15	3C529	Steering column
