Drive Sprocket/Turbine Shaft: Notes

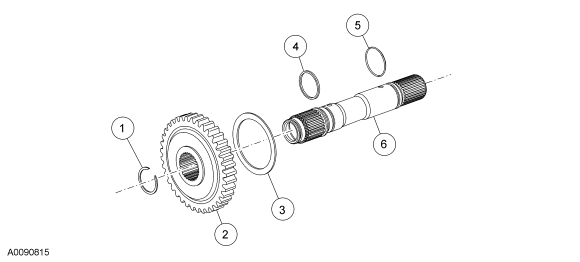

Fig 1: Exploded View Of Drive Sprocket/Turbine Shaft Components
GF0033475Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N803178-S Retainer ring (holds the turbine shaft to the drive sprocket)
2 7G129 Drive sprocket
3 7G099 Driver sprocket thrust washer
4 7G091 Turbine shaft rear seal
5 6749 Turbine shaft O-ring seal
6 7F213 Turbine shaft
