Driven Sprocket

Special Tools

Illustration Tool Name Tool Number
GF0001106
 Adapter for 303-224 (Handle) 205-153 (T80T-4000-W)
GF0020292
 Installer, Driven Sprocket Wheel 307-344 (T95P-7H150-A)

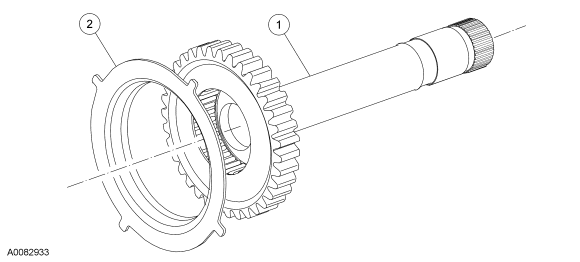

Fig 1: Exploded View Of Driven Sprocket Components
GF0033474Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7G132 Driven sprocket and race
2 7H150 Driven sprocket speed sensor wheel
  1. Check the bearing race to verify that it has not moved out of position or become scored. If worn or scored, install a new driven sprocket.

    Inspect the sensor wheel for bent or damaged tabs.

    2. Fig 2: Bearing Race
    GF0020293Courtesy of FORD MOTOR CO.
    NOTE: Install a new speed sensor wheel only if damaged.
  2. Remove the speed sensor wheel.
    3. Fig 3: Speed Sensor Wheel
    GF0020294Courtesy of FORD MOTOR CO.
  3. Using the special tools, install a new speed sensor ring.
    4. Fig 4: Installing Speed Sensor Wheel
    GF0020295Courtesy of FORD MOTOR CO.
