Driven Sprocket Support: Notes

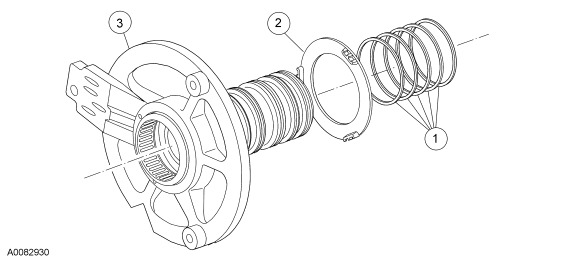

Fig 1: Exploded View Of Driven Sprocket Support Components
GF0033473Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7D019 Forward clutch cylinder seals
2 7D014 Front support thrust washer
3 7G166 Driven support sprocket
