Automatic Transmission: Installation: Transaxle

Special Tools

Illustration	Tool Name	Tool Number
	Lifting Bracket Set, Engine	303-D095 (D94L-6001-A) or equivalent
	Support Bar, Engine	303-290-A
	Adapter for 303-290A (Support Leg)	303-290A-03A
	Adapter for 303-290A (Spreader Bar)	303-290A-10
	Adapter for 303-290A (Support Bracket)	303-290A-11
	Adapter for 303-290A (Strut)	303-290A-09

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) US; CXT-5LM12 (Canada)	MERCON® V
Multi-Purpose Grease XG-4 and/or XL-5	ESB-M1C93-B

1. Secure the transaxle on a high lift transmission jack. Apply multi-purpose grease to the torque converter pilot hub.
Fig 1: Torque Converter Pilot Hub
Courtesy of FORD MOTOR CO.
2. Install the shift cable bracket and bolts.
   • Tighten to 35 Nm (26 lb-ft).
Fig 2: Locating Transmission Selector Cable Bracket
Courtesy of FORD MOTOR CO.
3. If not previously installed, install the heat shield.
Fig 3: Locating Heat Shield
Courtesy of FORD MOTOR CO.
4. If not previously installed, install the rear engine support bracket.
   • Tighten to 62 Nm (46 lb-ft).
Fig 4: Locating Rear Engine Support Mount Bracket Bolts
Courtesy of FORD MOTOR CO.

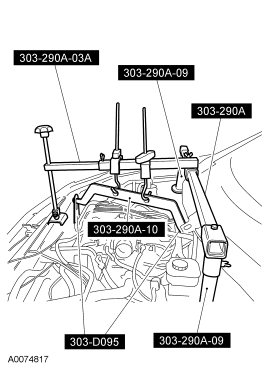

5. Verify the position of the special tools.
Fig 5: Identifying Position Of Special Tools (303--290A), (303--290A-03A), (303--290A-09), (303--290A-10), And (303--D095)
Courtesy of FORD MOTOR CO.
6. Position the transaxle to the back of the engine.
7. Position the transaxle to the engine assembly, and install the transaxle retaining bolts.
   • Tighten to 62 Nm (46 lb-ft).
Fig 6: Identifying Transaxle Retaining Bolts
Courtesy of FORD MOTOR CO.
8. Install the oil pan-to-transaxle case bolt.
   • Tighten to 48 Nm (35 lb-ft).
Fig 7: Identifying Oil Pan-To-Transaxle Retaining Bolt
Courtesy of FORD MOTOR CO.
9. Install the oil pan-to-transaxle case bolt.
   • Tighten to 48 Nm (35 lb-ft).
Fig 8: Locating Oil Pan-To-Transaxle Retaining Bolt
Courtesy of FORD MOTOR CO.
10. Install the front lower retaining bolt.
    • Tighten to 90 Nm (66 lb-ft).
Fig 9: Front Lower Retaining Bolt
Courtesy of FORD MOTOR CO.
11. Install the rear lower retaining bolt.
    • Tighten to 90 Nm (66 lb-ft).
Fig 10: Rear Lower Retaining Bolt
Courtesy of FORD MOTOR CO.
12. Remove the high-lift transmission jack.
13. Connect the turbine shaft speed (TSS) sensor electrical connector.
Fig 11: Turbine Shaft Speed (TSS) Sensor Connector
Courtesy of FORD MOTOR CO.
14. Connect the output shaft speed (OSS) sensor electrical connector.
Fig 12: Output Shaft Speed (OSS) Sensor Connector
Courtesy of FORD MOTOR CO.
15. Install the RH halfshaft.
Fig 13: Right Halfshaft
Courtesy of FORD MOTOR CO.
16. Install the LH halfshaft.
Fig 14: Left Halfshaft
Courtesy of FORD MOTOR CO.
NOTE: Locate and align the orange dot adjacent to the stud on the torque converter with the orange dot on the flexplate.
17. Install 4 new torque converter nuts.
    • Tighten to 47 Nm (35 lb-ft).
Fig 15: Torque Converter Nut
Courtesy of FORD MOTOR CO.
18. Install the 2-piece transaxle housing cover.
Fig 16: Inspection Cover
Courtesy of FORD MOTOR CO.
19. Install the pushpin for the inspection cover.
Fig 17: Identifying Pushpin For Inspection Cover
Courtesy of FORD MOTOR CO.
20. Tighten the transaxle inspection cover bolt and pushpin.
    • Tighten to 10 Nm (89 lb-in).
Fig 18: Locating Inspection Cover Bolt
Courtesy of FORD MOTOR CO.
21. Install the starter motor.
    • Tighten to 25 Nm (18 lb-ft).
Fig 19: Starter Fasteners
Courtesy of FORD MOTOR CO.
22. Install the ground strap.
    • Tighten to 20 Nm (15 lb-ft).
Fig 20: Locating Ground Strap Bolt
Courtesy of FORD MOTOR CO.
23. Raise the subframe assembly into position. Connect the heat shield to the subframe.
24. Using a 19 mm (0.76 in) dowel, check the front subframe alignment.
    • The dowel should slide directly through the front subframe and body without tilting.
Fig 21: Dowel
Courtesy of FORD MOTOR CO.
25. Install the sway bar assembly.
Fig 22: Locating Sway Bar Assembly
Courtesy of FORD MOTOR CO.
26. Install 2 bolts for the RH sway bar retainer.
    • Tighten to 62 Nm (46 lb-ft).
Fig 23: Locating RH Sway Bar Retainer Bolts
Courtesy of FORD MOTOR CO.
27. Install 2 bolts for the LH sway bar retainer.
    • Tighten to 62 Nm (46 lb-ft).
Fig 24: Locating LH Sway Bar Retainer Bolts
Courtesy of FORD MOTOR CO.
28. Install the right rear subframe bolt.
    • Tighten to 175 Nm (129 lb-ft).
Fig 25: Locating Right Rear Subframe Bolt
Courtesy of FORD MOTOR CO.
29. Install the left rear subframe bolt.
    • Tighten to 175 Nm (129 lb-ft).
Fig 26: Identifying Left Rear Subframe Bolt
Courtesy of FORD MOTOR CO.
30. Install the right front subframe bolt.
    • Tighten to 175 Nm (129 lb-ft).
Fig 27: Locating Right Front Subframe Bolt
Courtesy of FORD MOTOR CO.
31. Install the left front subframe bolt.
    • Tighten to 175 Nm (129 lb-ft).
Fig 28: Locating Left Front Subframe Bolt
Courtesy of FORD MOTOR CO.
32. Install the rear engine mount.
    • Tighten to 90 Nm (66 lb-ft).
Fig 29: Locating Rear Engine Mount Bolts
Courtesy of FORD MOTOR CO.
33. Install the front engine mount.
    • Tighten to 90 Nm (66 lb-ft).
Fig 30: Identifying Front Engine Mount Bolt
Courtesy of FORD MOTOR CO.
34. Install the retainer for the power steering line.
    • Tighten to 6 Nm (53 lb-in).
Fig 31: Locating Retainer For Power Steering Line Bolt
Courtesy of FORD MOTOR CO.
35. Install the retainer for the power steering hose.
Fig 32: Locating Retainer For Power Steering Hose
Courtesy of FORD MOTOR CO.
36. Install the nuts for the power steering rack.
    • Tighten to 175 Nm (129 lb-ft).
Fig 33: Locating Power Steering Rack Nut
Courtesy of FORD MOTOR CO.
37. Connect the RH knuckle assembly.
    1. Connect the RH tie-rod assembly.
       • Tighten to 80 Nm (59 lb-ft).
    2. Connect the RH sway bar assembly.
       • Tighten to 103 Nm (76 lb-ft).
    3. Install the RH pinch bolt.
       • Tighten to 90 Nm (66 lb-ft).
Fig 34: Connecting RH Knuckle Assembly
Courtesy of FORD MOTOR CO.
38. Connect the LH knuckle assembly.
    1. Connect the LH tie-rod assembly.
       • Tighten to 80 Nm (59 lb-ft).
    2. Connect the LH sway bar assembly.
       • Tighten to 103 Nm (76 lb-ft).
    3. Install the LH pinch bolt.
       • Tighten to 90 Nm (66 lb-ft).
Fig 35: Connecting LH Tie-Rod Assembly
Courtesy of FORD MOTOR CO.
39. Install the catalytic converter assembly. For additional information, refer to EXHAUST SYSTEM article.
40. Install the rear transaxle mount nut.
    • Tighten to 90 Nm (66 lb-ft).
Fig 36: Locating Rear Transaxle Support Nut
Courtesy of FORD MOTOR CO.
41. Install the anti-roll bracket and the 4 bolts.
    1. Tighten to 62 Nm (46 lb-ft).
    2. Tighten to 30 Nm (22 lb-ft).
    3. Tighten to 90 Nm (66 lb-ft).
Fig 37: Identifying Anti-Roll Bracket And Bolts
Courtesy of FORD MOTOR CO.
42. Install the 2 transaxle retaining bolts.
    • Tighten to 90 Nm (66 lb-ft).
Fig 38: Locating Transaxle Retaining Bolts
Courtesy of FORD MOTOR CO.
43. Connect the transaxle fluid cooler tubes.
Fig 39: Locating Transaxle Fluid Cooler Tubes
Courtesy of FORD MOTOR CO.
44. Install the retaining clips.
Fig 40: Locating Fluid Cooler Tube Retaining Clips
Courtesy of FORD MOTOR CO.
45. Install the upper transaxle fluid filler tube and bolt.
    • Tighten to 14 Nm (10 lb-ft).
Fig 41: Locating Upper Transaxle Fluid Filler Tube And Bolt
Courtesy of FORD MOTOR CO.
46. Install the oil filler cap.
Fig 42: Identifying Oil Filler Cap
Courtesy of FORD MOTOR CO.
47. Install the hood latch.
    • Tighten to 12 Nm (9 lb-ft).
Fig 43: Identifying Hood Latch Position
Courtesy of FORD MOTOR CO.
48. Install the front upper radiator shield.
Fig 44: Front Upper Radiator Shield
Courtesy of FORD MOTOR CO.
49. Install the air intake tube.
Fig 45: Locating Air Intake Tube
Courtesy of FORD MOTOR CO.
50. Install the passenger compartment air intake box.
Fig 46: Locating Passenger Compartment Air Intake Box
Courtesy of FORD MOTOR CO.
51. Install the wiper arm and pivot assembly. For additional information, refer to WIPERS AND WASHERS article.
52. Install the hood.
53. Verify that the digital transmission range (TR) sensor is correctly adjusted. For additional information, refer to Digital Transmission Range (TR) Sensor .
54. Install the manual control lever and nut.
    • Tighten to 13 Nm (10 lb-ft).
Fig 47: Locating Manual Control Lever And Nut
Courtesy of FORD MOTOR CO.
55. Reconnect the harness retainer.
Fig 48: Locating Harness Retainer
Courtesy of FORD MOTOR CO.
56. Install the shift cable in the bracket.
Fig 49: Locating Shift Cable In Bracket
Courtesy of FORD MOTOR CO.
57. Connect the shift cable to the manual control lever.
Fig 50: Shift Cable At Manual Control Lever
Courtesy of FORD MOTOR CO.
58. Connect the electrical connectors.
    1. Connect the TR sensor electrical connector.
    2. Connect the transaxle electrical connector.
    3. Connect the speed control electrical connector.
Fig 51: Identifying Electrical Connectors
Courtesy of FORD MOTOR CO.
59. Install the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING article.
Fig 52: Locating Air Cleaner Assembly
Courtesy of FORD MOTOR CO.
60. Install the air cleaner tube and tighten the hose clamps.
Fig 53: Locating Air Cleaner Tube And Clamps
Courtesy of FORD MOTOR CO.
NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive shift strategy.
61. Install the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
62. Fill the transaxle using clean automatic transmission fluid.
63. Start the engine. Move the transaxle range selector lever through all positions. Check the fluid level. For additional information, refer Preliminary Inspection .
