Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| ABS Test Connector | Near master cylinder. See Figure. |

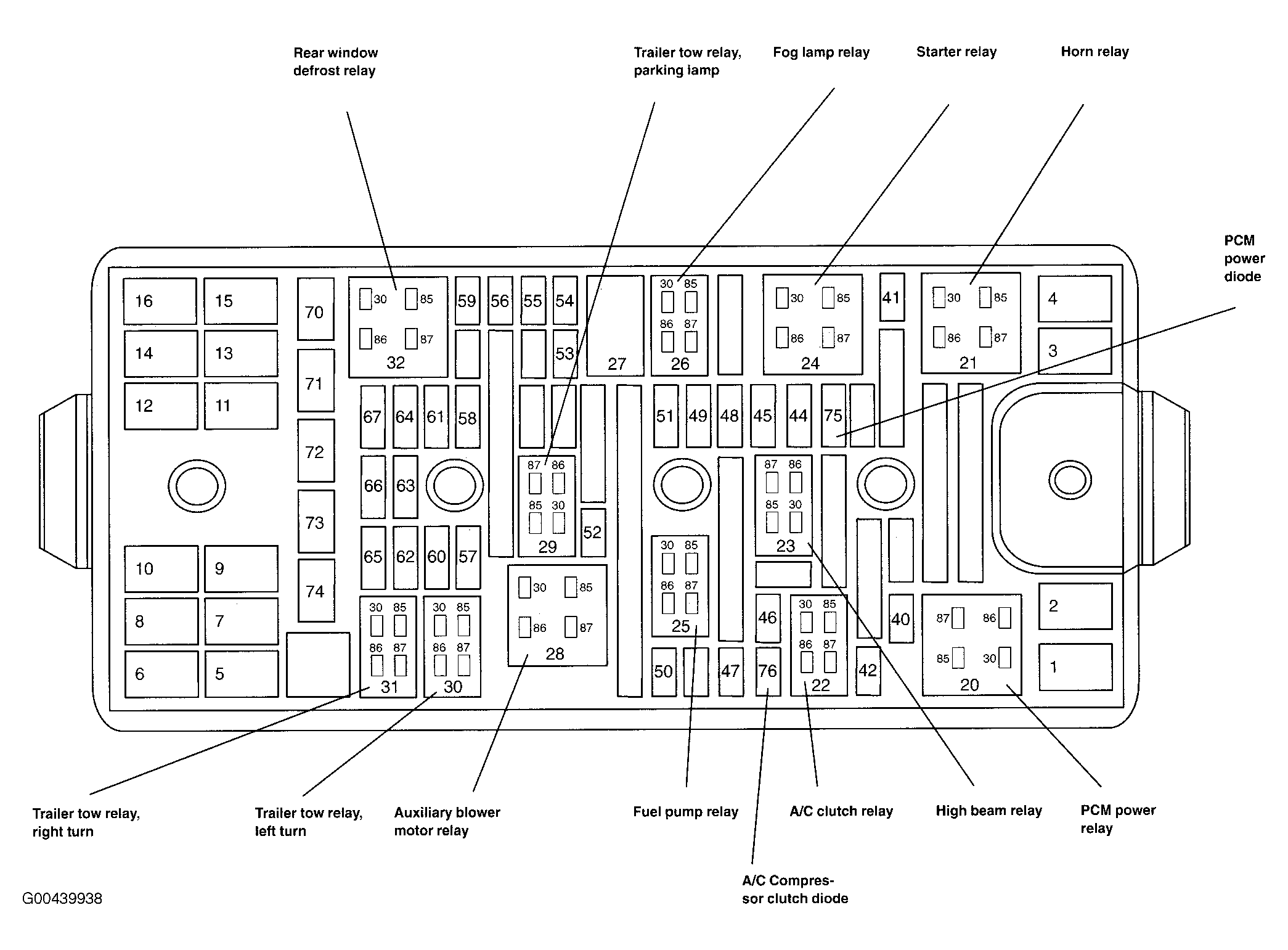

| A/C Compressor Clutch Diode | In bussed electrical center (BEC). See Figure. |
| Auxiliary Blower Motor Resistor Assembly | Behind panel, left of rear seat. See Figure. |
| Battery | Left side of engine compartment. See Figure. |
| Climate Controlled Seat Backrest Element (Driver Side) | In driver's seat backrest. See Figure. |
| Climate Controlled Seat Backrest Element (Passenger Side) | In passenger's seat backrest. See Figure. |
| Climate Controlled Seat Cushion Element (Driver Side) | In driver's seat cushion. See Figure. |
| Climate Controlled Seat Cushion Element (Passenger Side) | In passenger's seat cushion. See Figure. |

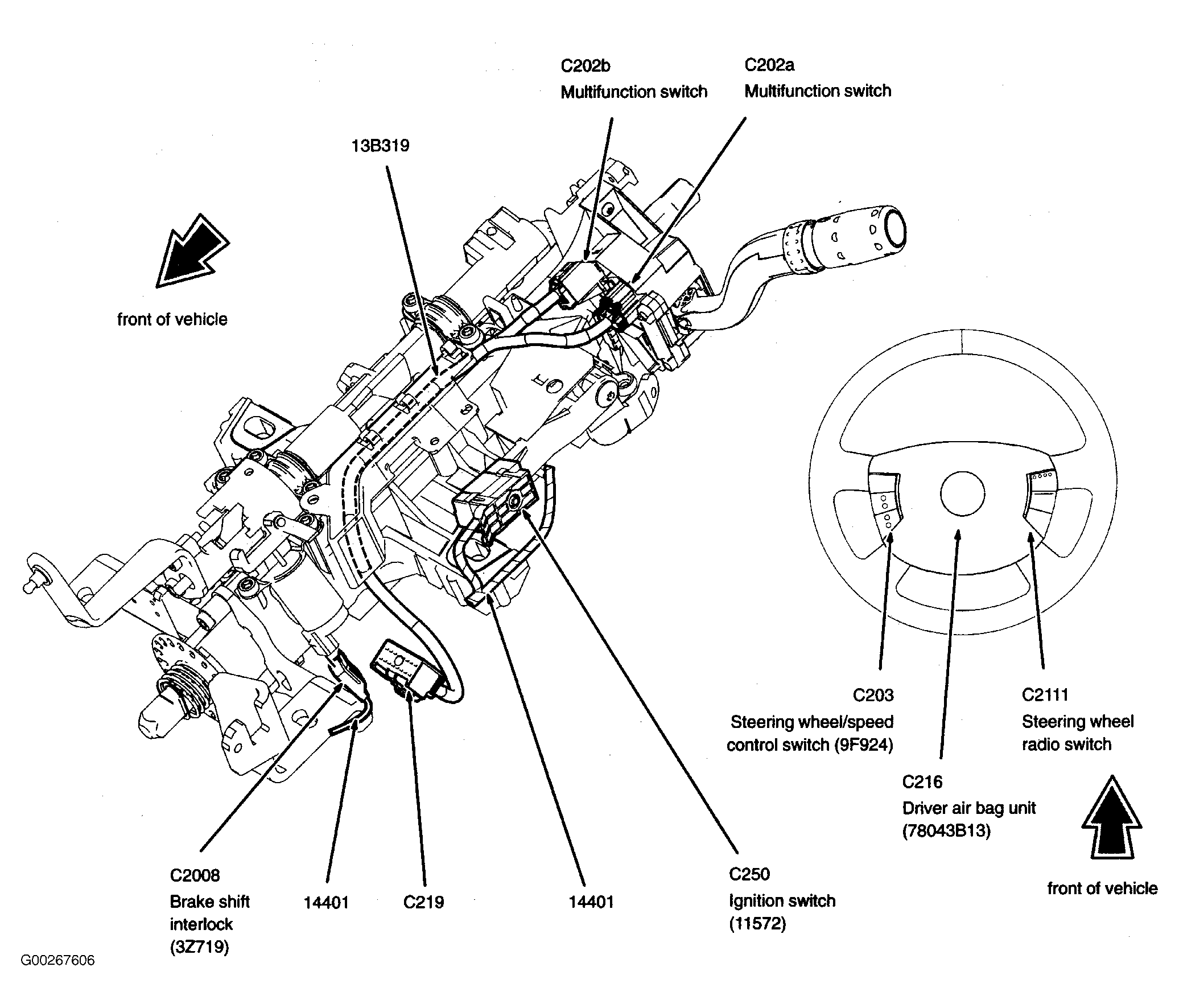

| Clockspring | Bottom of steering column. See Figure. |
| Data Link Connector (DLC) | Below dash, left of steering column. See Figure. |
| Driver Air Bag Unit | In steering wheel. See Figure. |

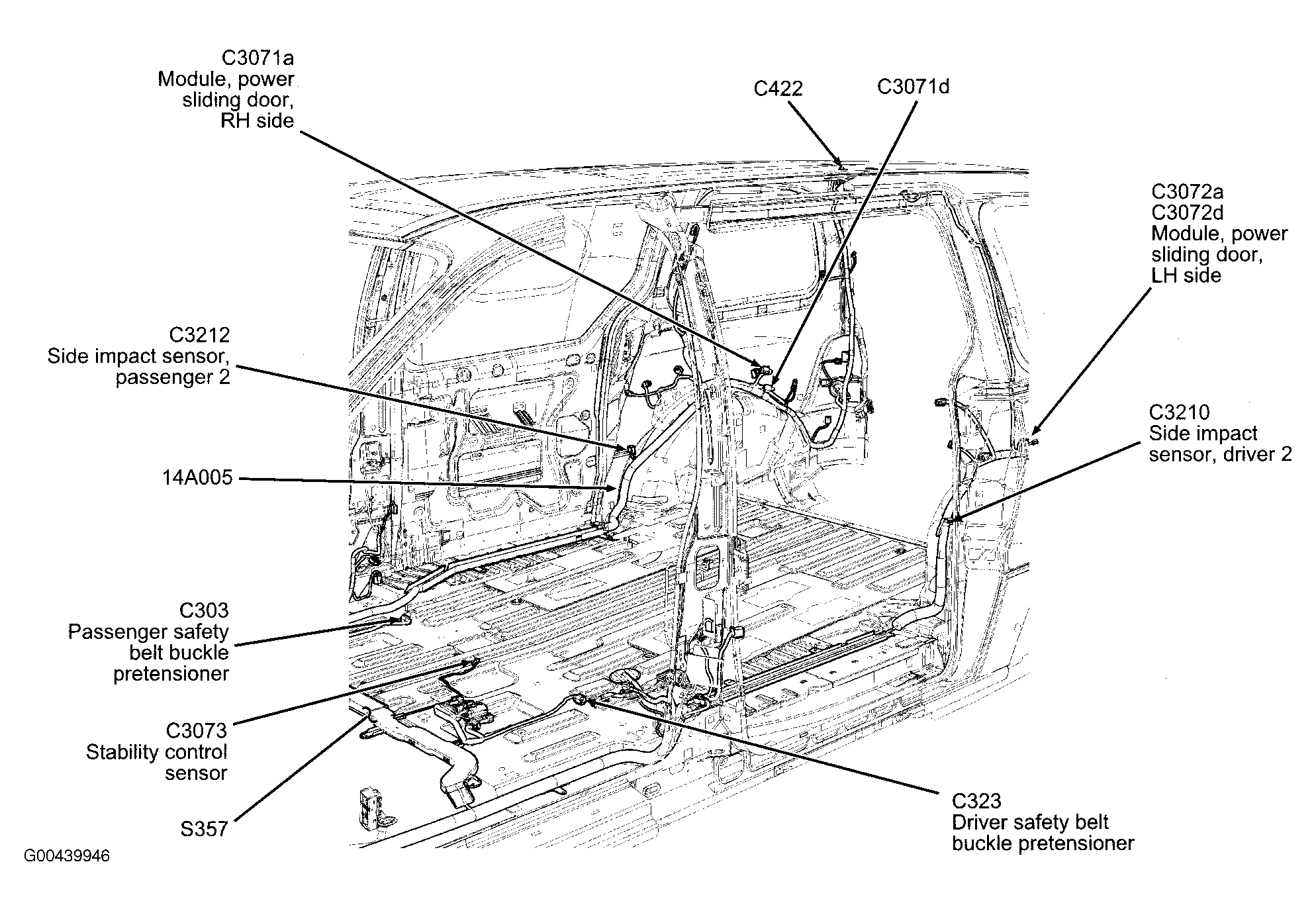

| Driver Safety Belt Buckle Pretensioner | Left side of center console. See Figure. |
| Dropping Resistor | Left front of engine compartment. See Figure. |
| Electrochromatic Inside Mirror Unit | Front center of passenger compartment. See Figure. |
| Front Blower Motor Resistor Assembly | Behind right side of dash. See Figure. |
| Fuel Tank Unit | In fuel tank. See Figure. |
| Generator | Left front of engine. See Figure. |
| Horn | Left front of engine compartment. See Figure. |
| Ignition Coil | Top right side of engine. See Figure. |

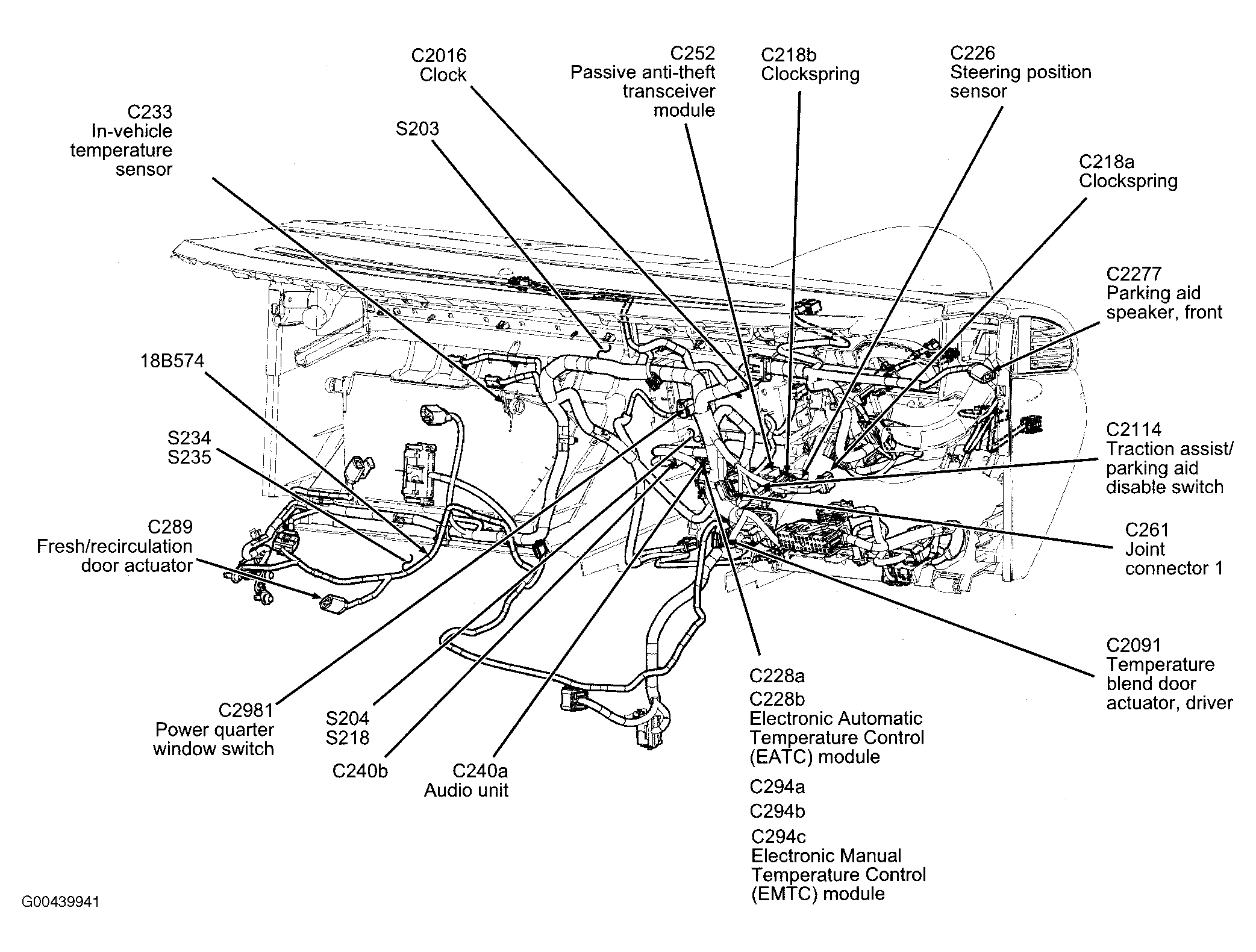

| Joint Connector 1 | Behind left side of dash. See Figure. |
| Joint Connector 2 | Behind center of dash. See Figure. |
| Joint Connector 3 | Under driver's seat. See Figure. |
| Joint Connector 4 | Below left side of dash. See Figure. |

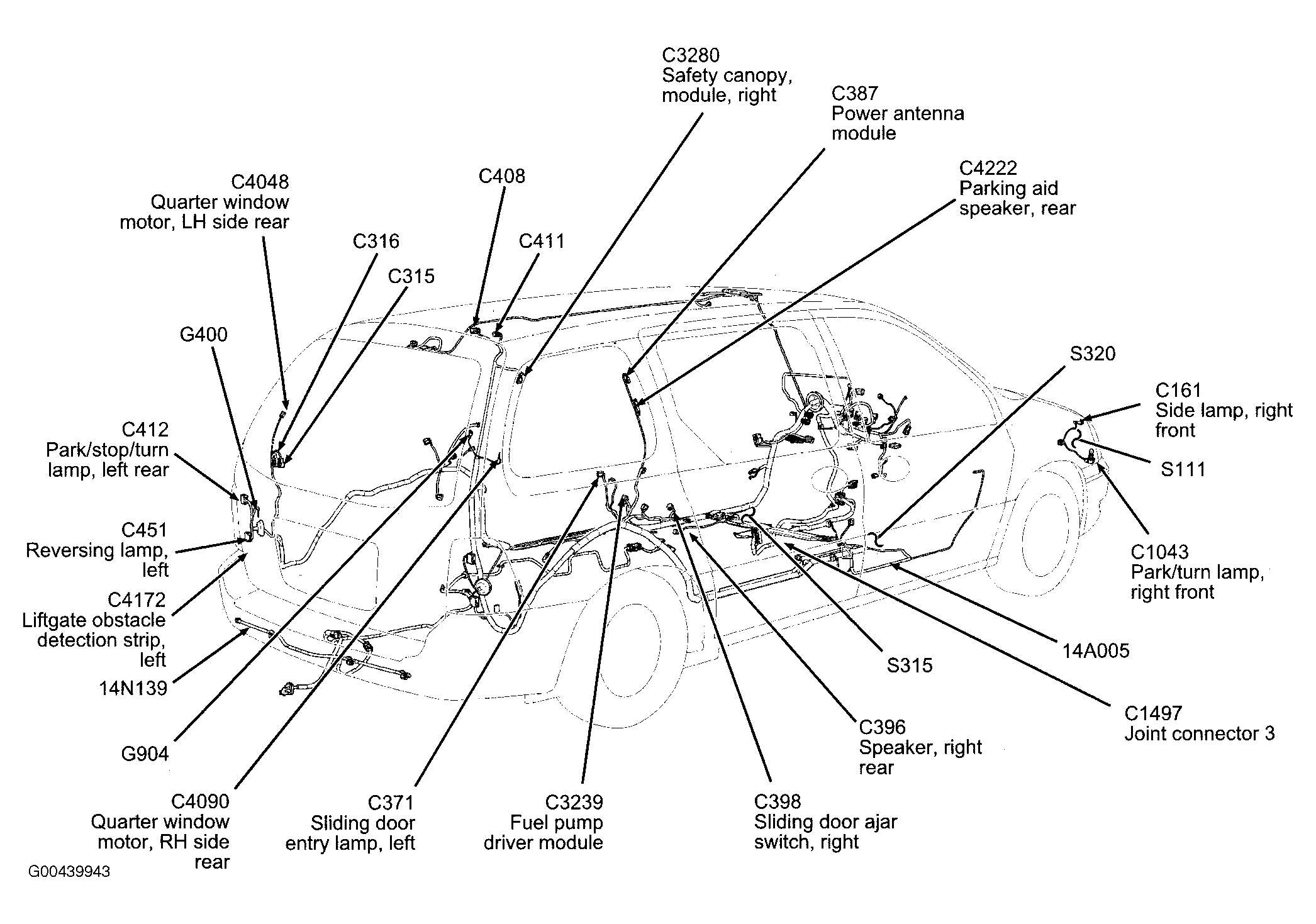

| Liftgate Obstacle Detection Strip (Left) | Left side of liftgate. See Figure. |
| Liftgate Obstacle Detection Strip (Right) | Right side of liftgate. See Figure. |
| Overhead Console | Front center top of passenger compartment. See Figure. |
| Parking Aid Speaker (Front) | Behind left end of dash. See Figure. |
| Parking Aid Speaker (Rear) | On right "D" pillar. See Figure. |
| Passenger Air Bag Module | Behind right side of dash. See Figure. |
| Passenger Safety Belt Buckle Pretensioner | Right of center console. See Figure. |
| PCM Power Diode | In bussed electrical center (BEC). See Figure. |
| Positive Crankcase Ventilation Heater | Top left side of engine. See Figure. |
| Rear Window Defrost Grid | In rear window. See Figure. |
| RKE Antenna | Behind left front of headliner. See Figure. |
| Safety Canopy Module (Left) | Top of left "D" pillar. See Figure. |
| Safety Canopy Module (Right) | Top of right "D" pillar. See Figure. |
| Seat Cushion Heater (Left Front) | In driver's seat cushion. See Figure. |
| Seat Cushion Heater (Right Front) | In passenger's seat cushion. See Figure. |
| Side Air Bag Module (Left) | In driver's seat back rest. See Figure. |
| Side Air Bag Module (Right) | In passenger's seat back rest. See Figure. |

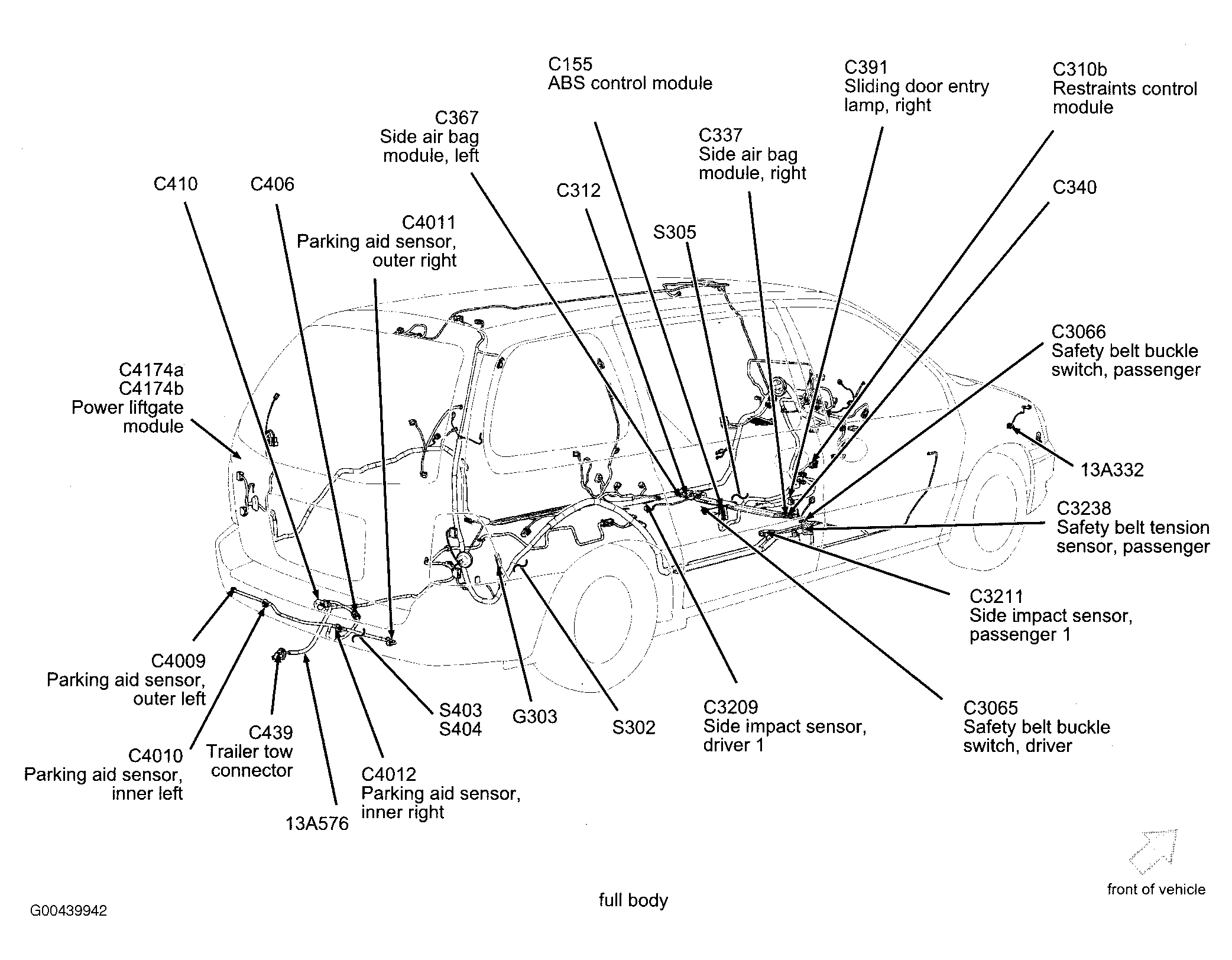

| Trailer Tow Connector | Rear center of vehicle. See Figure. |
