Exhaust System - Exploded View

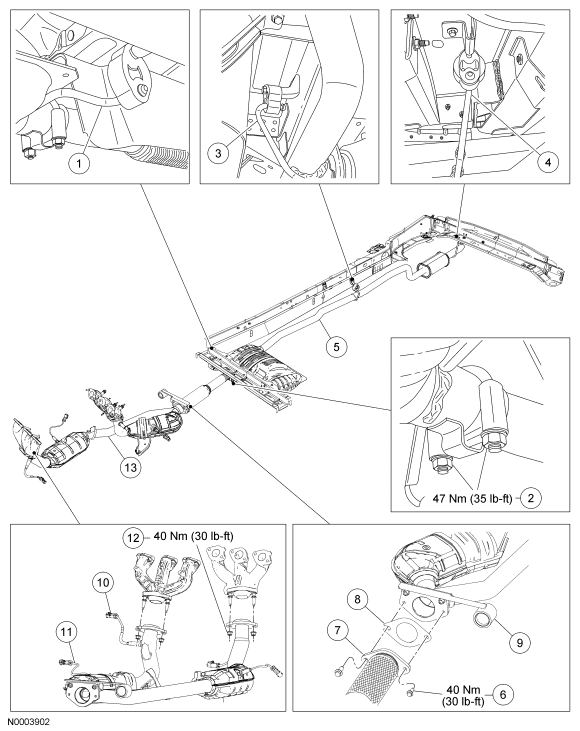

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5A262	Exhaust isolator hanger
2	N811574-S56	Exhaust clamp nuts (2 required)
3	5A262	Exhaust isolator hanger
4	5A262	Exhaust isolator hanger
5	5230	Muffler and tailpipe assembly
6	N806408-S439	Exhaust flexible pipe bolt (2 required)
7	5G203	Exhaust flexible pipe
8	5E241	Exhaust flexible pipe-to-catalytic converter gasket
9	5G209	Damper
10	9F472	Heated oxygen sensor (HO2S) (2 required)
11	9F472	Catalyst monitor sensor (2 required)
12	W705443-S900	Catalytic converter nut (4 required)
13	5F250	Catalytic converter
