Upper Intake Manifold: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000264
 Remover, Spark Plug Wire 303-106 (T74P-6666-A)
Material

Item Specification
Silicone Brake Caliper Grease and Dielectric Compound
XG-3-A		 ESE-M1C171-A

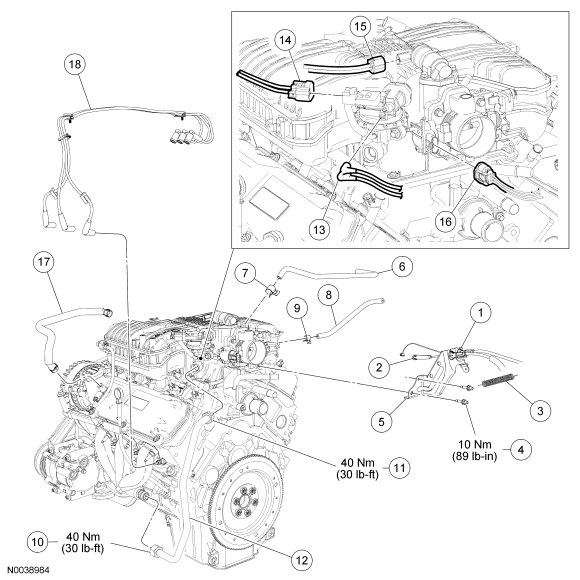

Fig 1: Exploded View Of Upper Intake Manifold Components & Connectors
GF0033010Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9A758 Accelerator cable
2 9A825 Speed control cable
3 9E894 Spring
4 N802388 Cable bracket stud bolt (2 required)
5 9728 Cable bracket
6 9G271 Evaporative (EVAP) emission return tube
7 - Clamp (part of 9G271)
8 2A047 Brake booster vacuum hose
9 - Clamp (part of 2A047)
10 - Exhaust gas recirculation (EGR) system module-to-exhaust manifold tube lower fitting (part of 9D477)
11 - EGR system module-to-exhaust manifold tube upper fitting (part of 9D477)
12 9D477 EGR system module-to-exhaust manifold tube
13 9E498 EGR system module vacuum connector
14 12B637 EGR system module electrical connector
15 12B637 Idle air control (IAC) electrical connector
16 12B637 Throttle position (TP) sensor electrical connector (part of 12B637)
17 6C342 Crankcase vent hose
18 12286 LH spark plug wire assembly (with retainers)

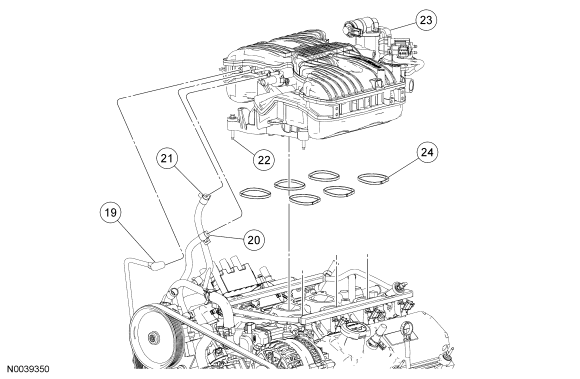

Fig 2: Exploded View Of Upper Intake Manifold
GF0033011Courtesy of FORD MOTOR CO.
Item Part Number Description
19 9E498 Upper intake manifold vacuum tube connector
20 - Coolant inlet hose (part of 18663)
21 - Coolant outlet hose (part of 18663)
22 - Upper intake manifold bolt (8 required) (part of 9424)
23 9424 Upper intake manifold
24 9441 Upper intake manifold gasket (6 required)
