Valve Cover - LH: Notes

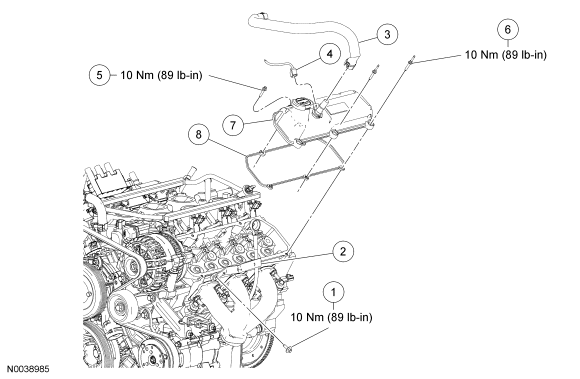

Fig 1: Exploded View Of Left Valve Cover With Torque Specifications
GF0033021Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W708650 Oil level indicator tube bolt
2 6754 Oil level indicator tube
3 6C342 Crankcase vent hose
4 12B637 Crankcase vent hose electrical connector
5 N807442 Valve cover bolt (3 required)
6 N807443 Valve cover stud bolt (2 required)
7 6582 LH valve cover
8 6584 LH valve cover gasket
