Fuel Rail and Fuel Injector - Exploded View

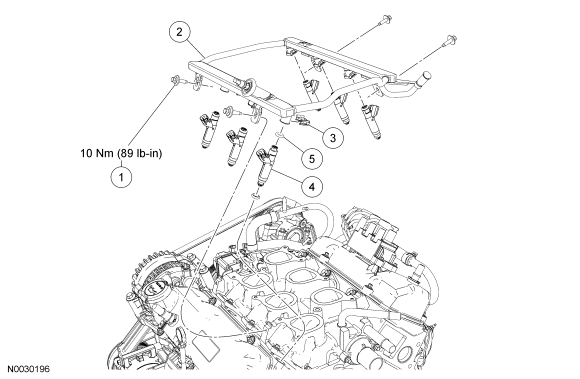

Fig 1: Exploded View Of Fuel Rail & Fuel Injector With Torque Specifications
GF0033234Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701775-S Fuel rail bolt (4 required)
2 9F792 Fuel rail
3 9C995 Fuel injector clip (6 required)
4 9F593 Fuel injector (6 required)
5 - Fuel injector O-ring seal (12 required)
  1. For additional information, refer to the following procedures.
