Brake Shift Interlock Actuator: Notes

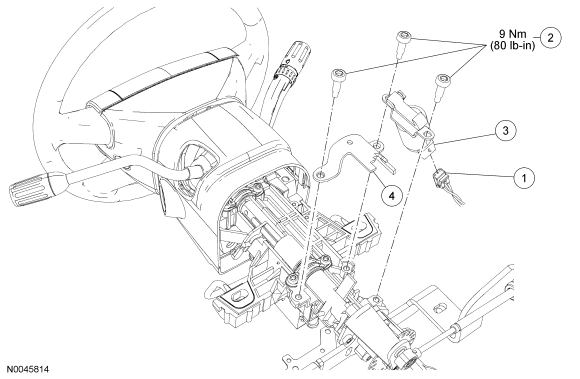

Fig 1: Exploded View Of Brake Shift Interlock Actuator With Torque Specifications
GF0033536Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14489 Brake shift interlock actuator electrical connector
2 N806584 Brake shift interlock actuator bolts (3 required)
3 3F770 Brake shift interlock actuator
4 7A216 Transmission shift position insert
