Selector Lever Cable and Bracket: Notes

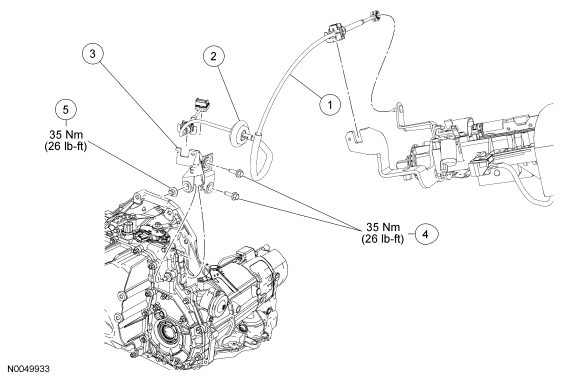

Fig 1: Exploded View Of Selector Lever Cable & Bracket With Torque Specifications
GF0033543Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 2L7P Selector lever cable grommet
3 7K499 Selector lever cable bracket
4 N804804 Selector lever cable bracket bolts (2 required)
5 N803766 Selector lever cable bracket nut
