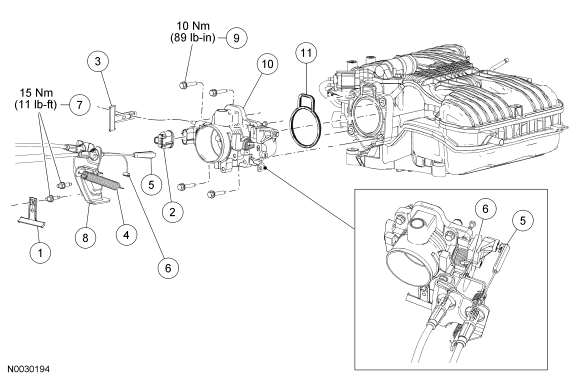

Throttle Body: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 13A506 | Harness retainer (part of 12B637) |
| 2 | 14A464 | Throttle position (TP) sensor electrical connector (part of 12B637) |
| 3 | 13A506 | Harness retainer (part of 12B637) |
| 4 | 9E894 | Throttle return spring |
| 5 | 9A825 | Speed control cable |
| 6 | 9A758 | Accelerator cable |
| 7 | N811881-S | Cable bracket bolts (2 required) |
| 8 | 9728 | Cable bracket |
| 9 | W701669-S | Throttle body (TB) bolts (4 required) |
| 10 | 9E926 | TB |
| 11 | 9E936 | TB gasket |
