Fuel Pump Driver Module (FPDM): Notes

NOTE: Five Hundred shown, Freestyle similar.

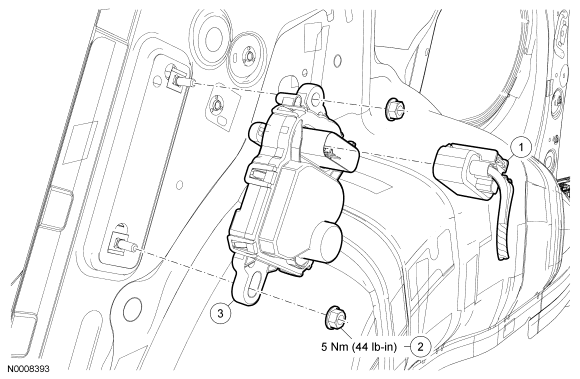

Fig 1: Exploded View Of Fuel Pump Driver Module FPDM With Torque Specifications
GF0017219Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel pump driver module (FPDM) electrical connector (part of 14A005)
2 W805320 FPDM nut (2 required)
3 9D370 FPDM
