Throttle Body: Notes
CAUTION:
The electronic throttle body is serviced as a complete assembly. Individual components cannot be serviced.

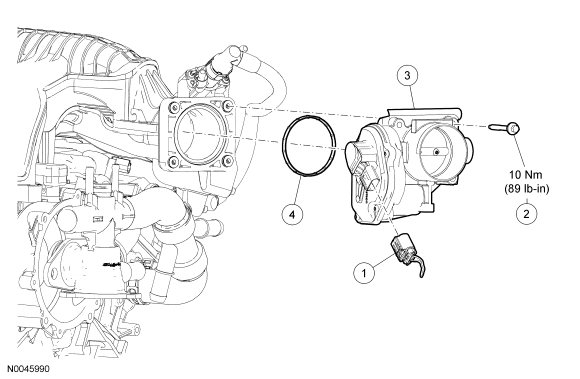

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Electronic throttle body electrical connector |
| 2 | W702251 | Electronic throttle body bolt (4 required) |
| 3 | 9E926 | Electronic throttle body |
| 4 | 9E936 | Electronic throttle body gasket |
