Driver Door Module (DDM)

DRIVER DOOR MODULE (DDM)







Removal and Installation

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Prior to the removal of the module, it is necessary to upload the module configuration information to the appropriate scan tool. This information needs to be downloaded into the new module once installed.

1. Upload the module configuration information from the DDM into the scan tool.
2. Remove the driver door trim panel.

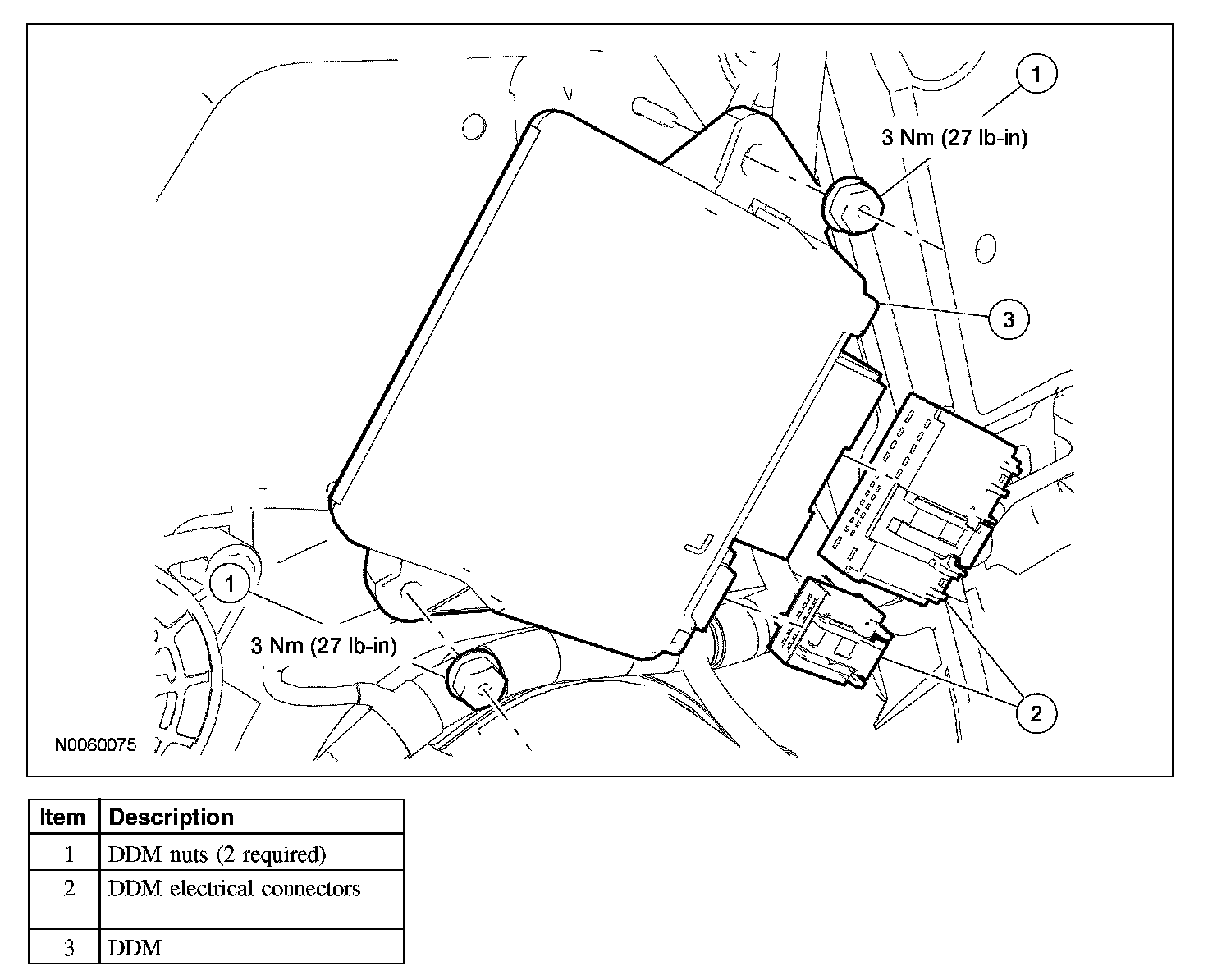

3. Remove the 2 nuts.
- To install, tighten to 3 Nm (27 lb-in).

4. Disconnect the 2 electrical connectors and remove the DDM.
5. To install, reverse the removal procedure.
- Download the DDM configuration from the scan tool into the new DDM.
