Engine Lubrication

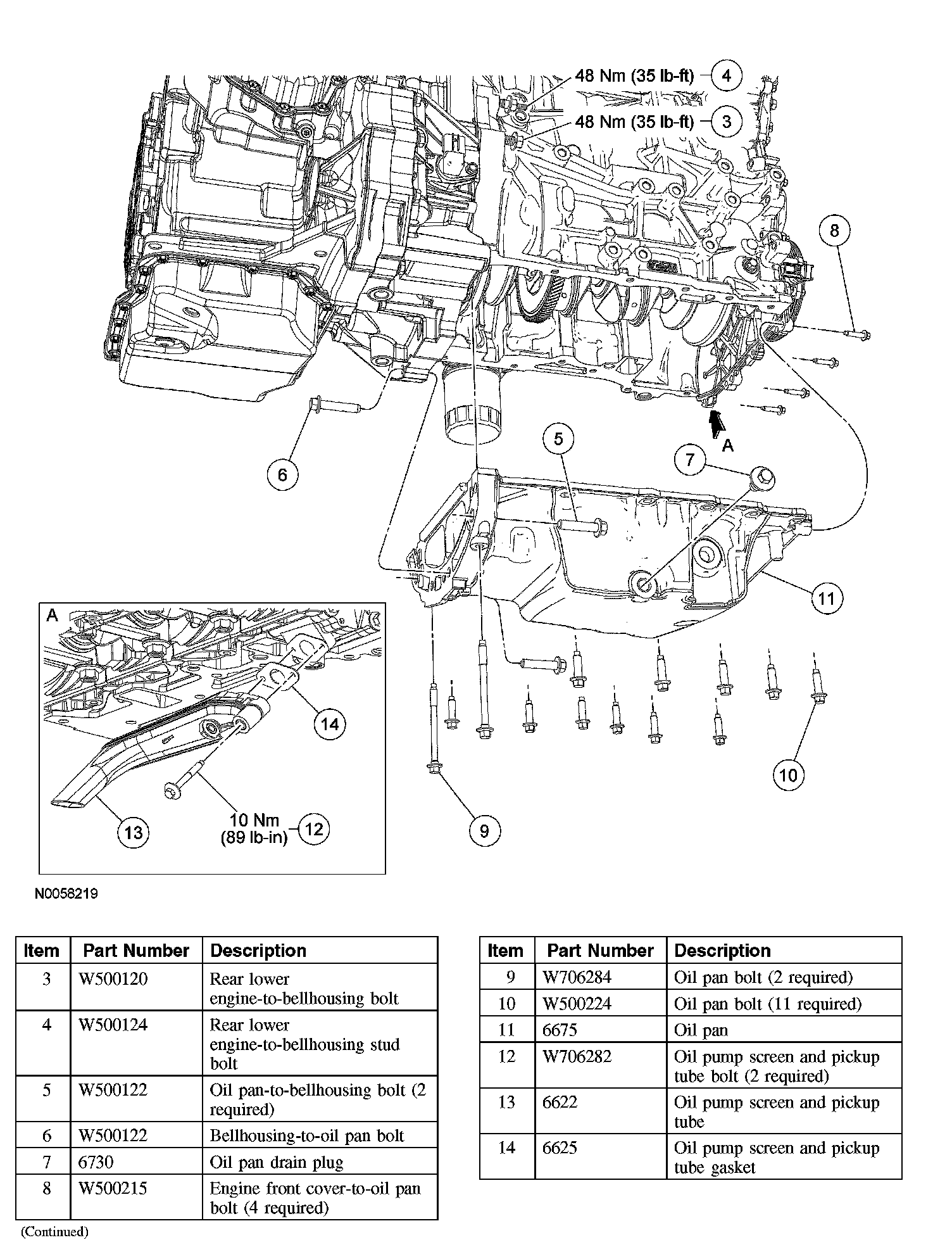

Engine Lubrication Components - Exploded View

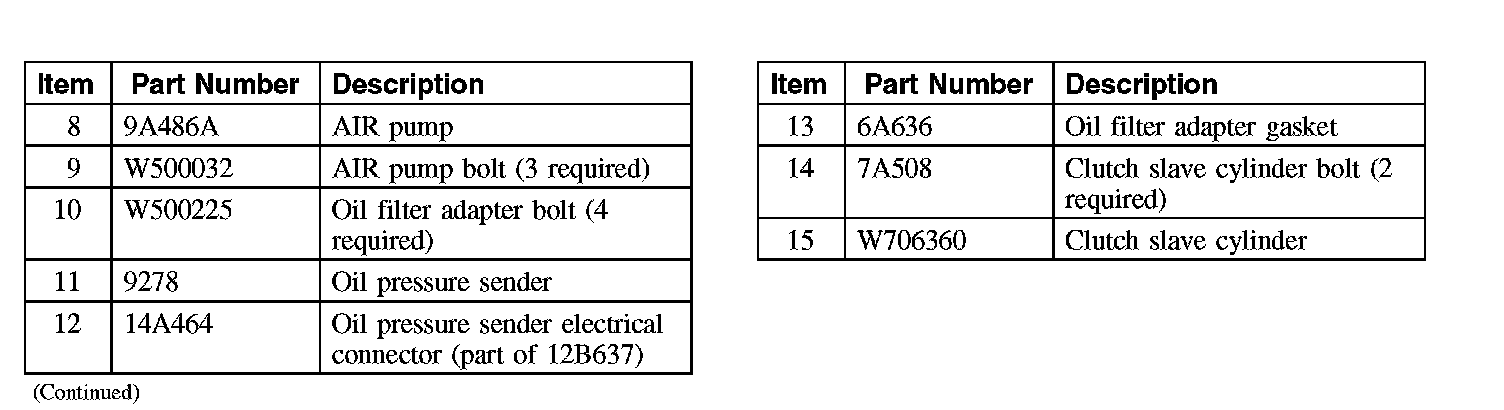

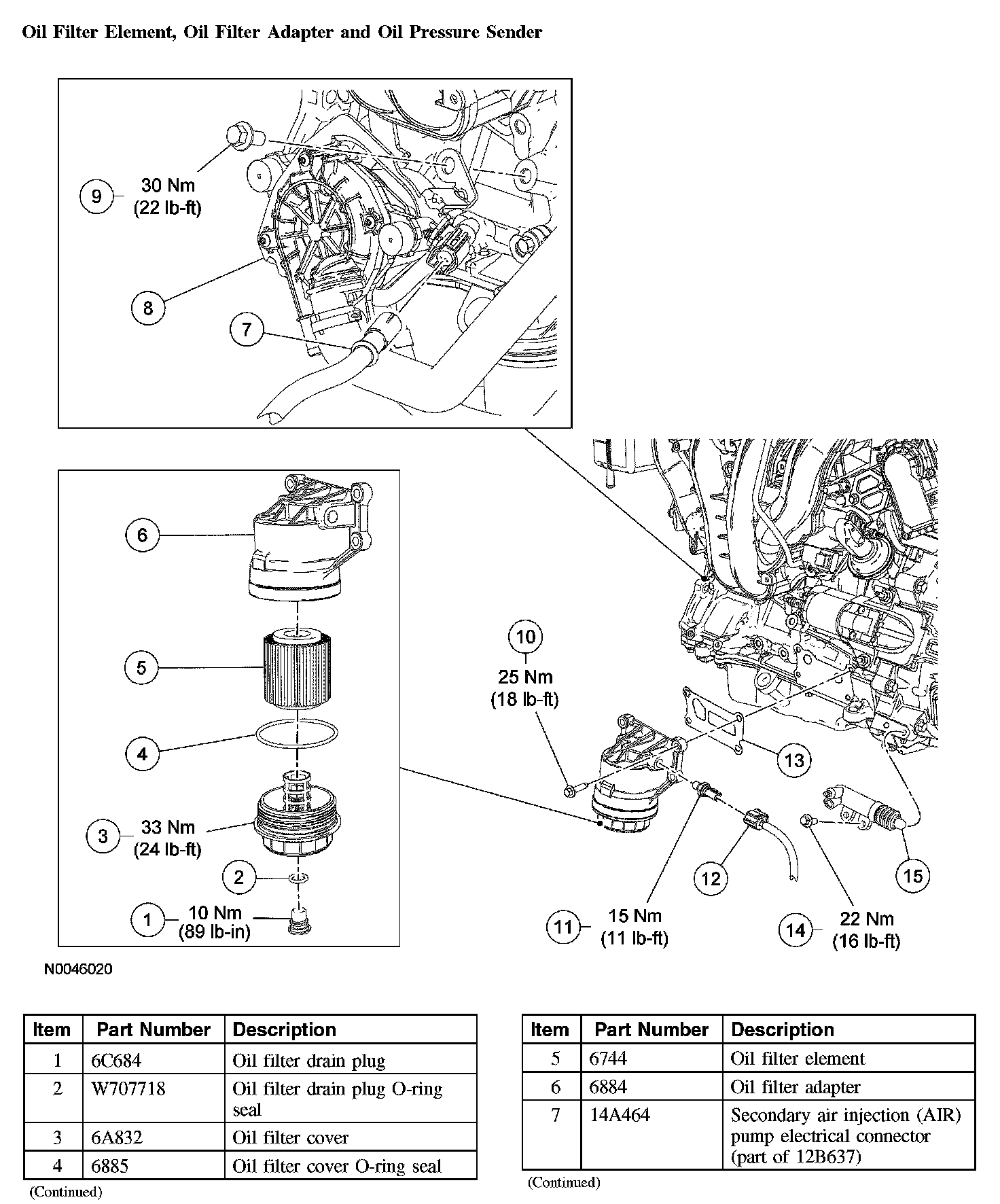

Oil Filter Element, Oil Filter Adapter and Oil Pressure Sender:

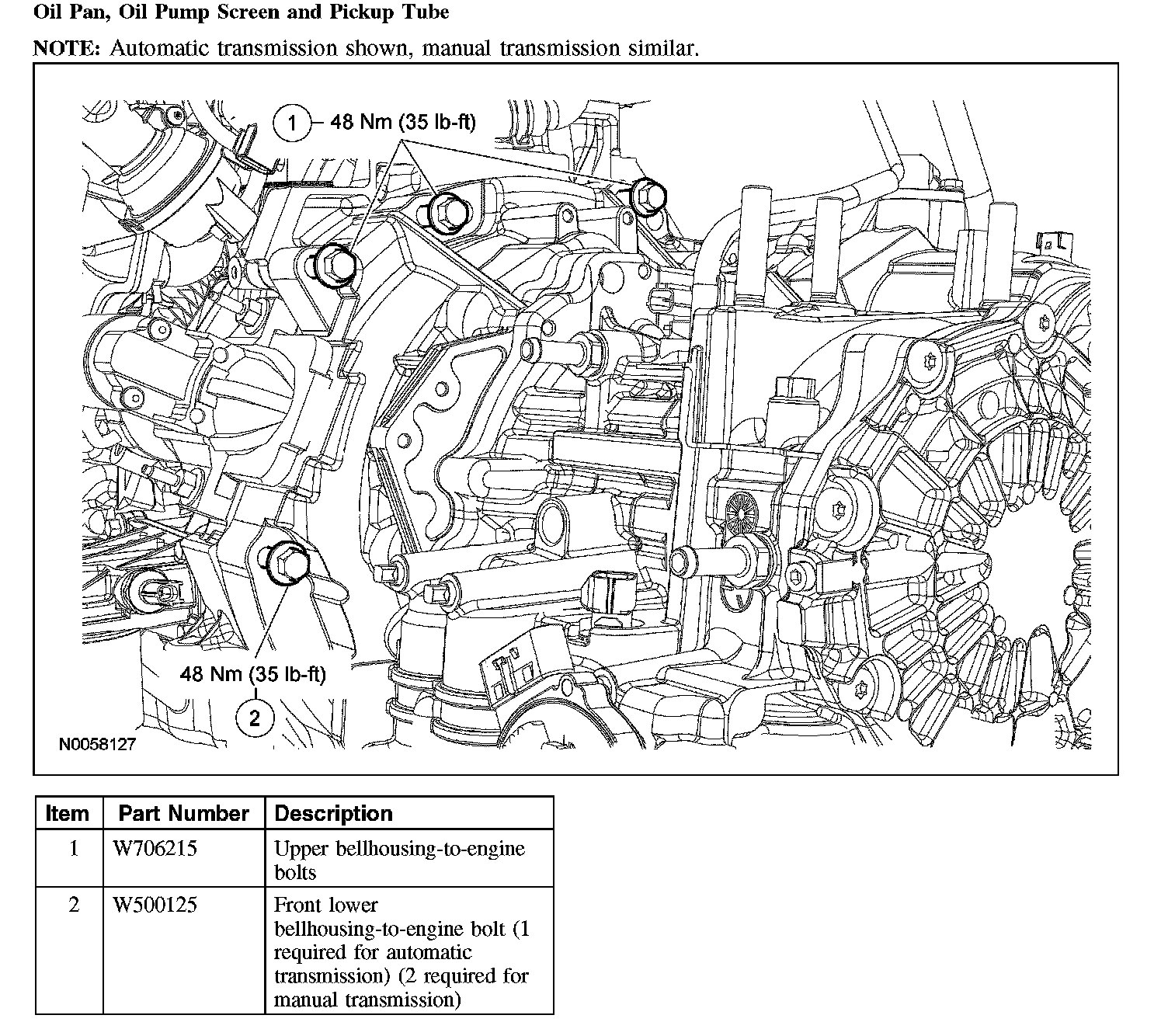

Oil Pan, Oil Pump Screen and Pickup Tube:

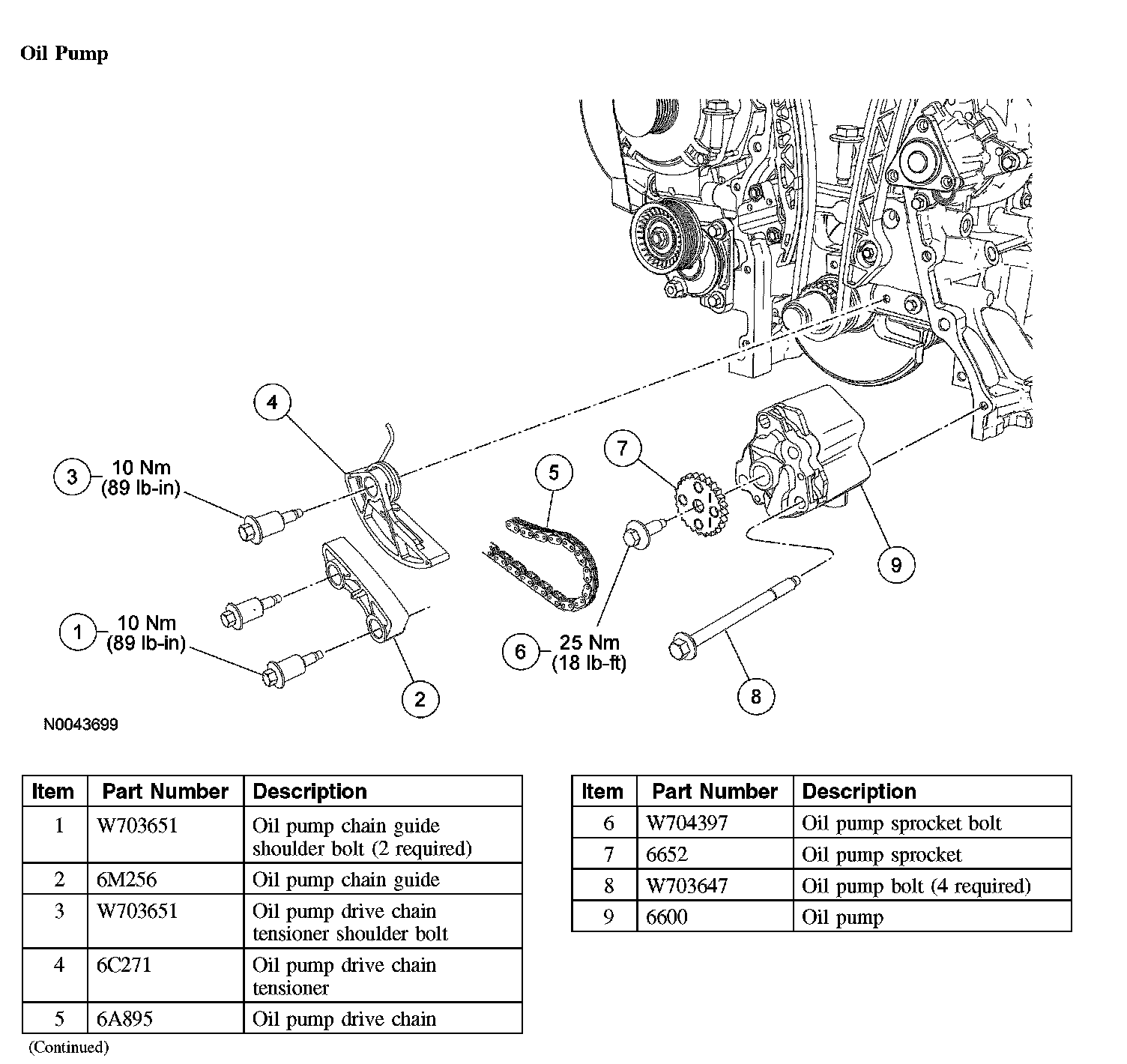

Oil Pump:
