Exhaust System

Exhaust System - Exploded View

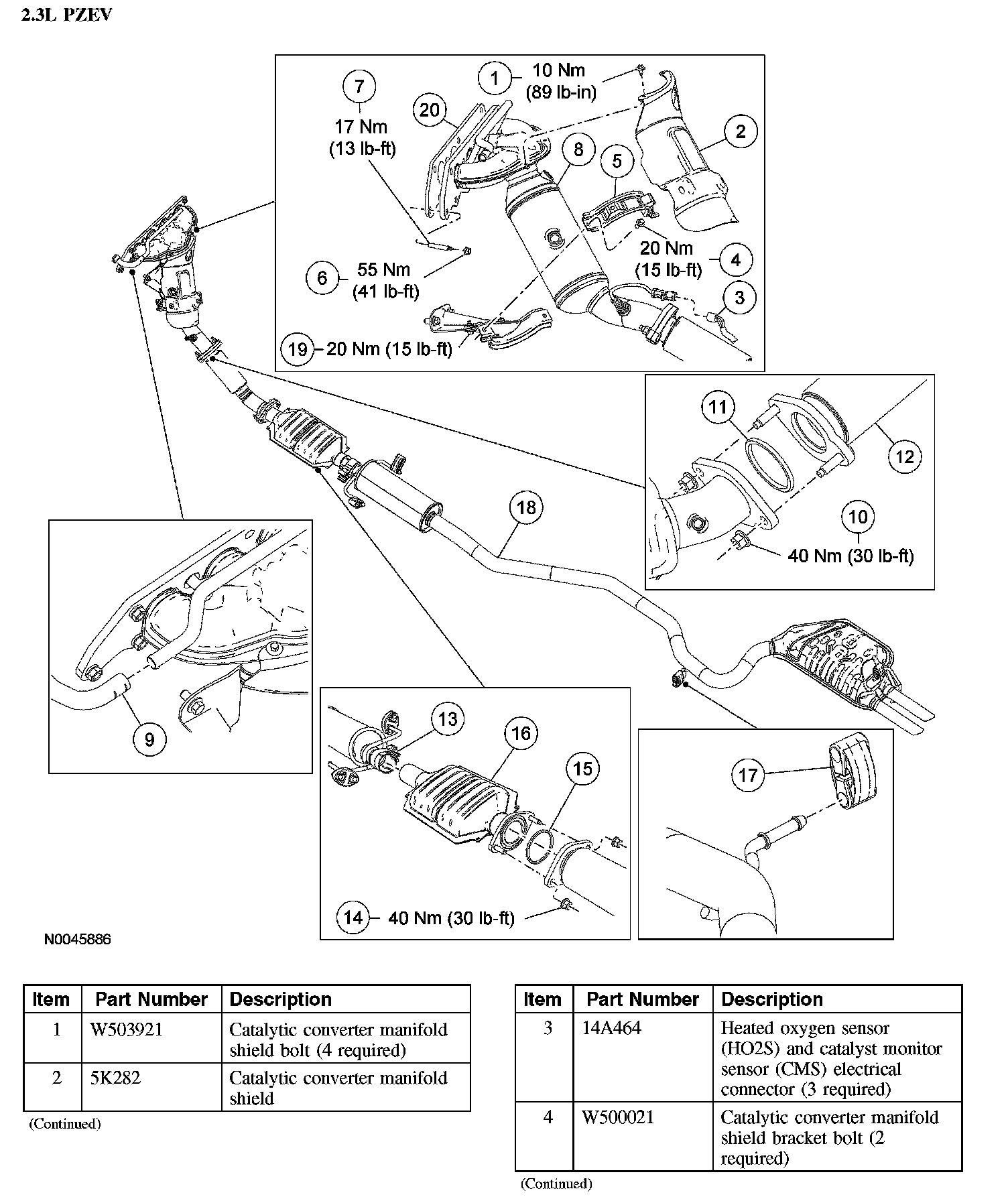

2.3L PZEV (Part 1):

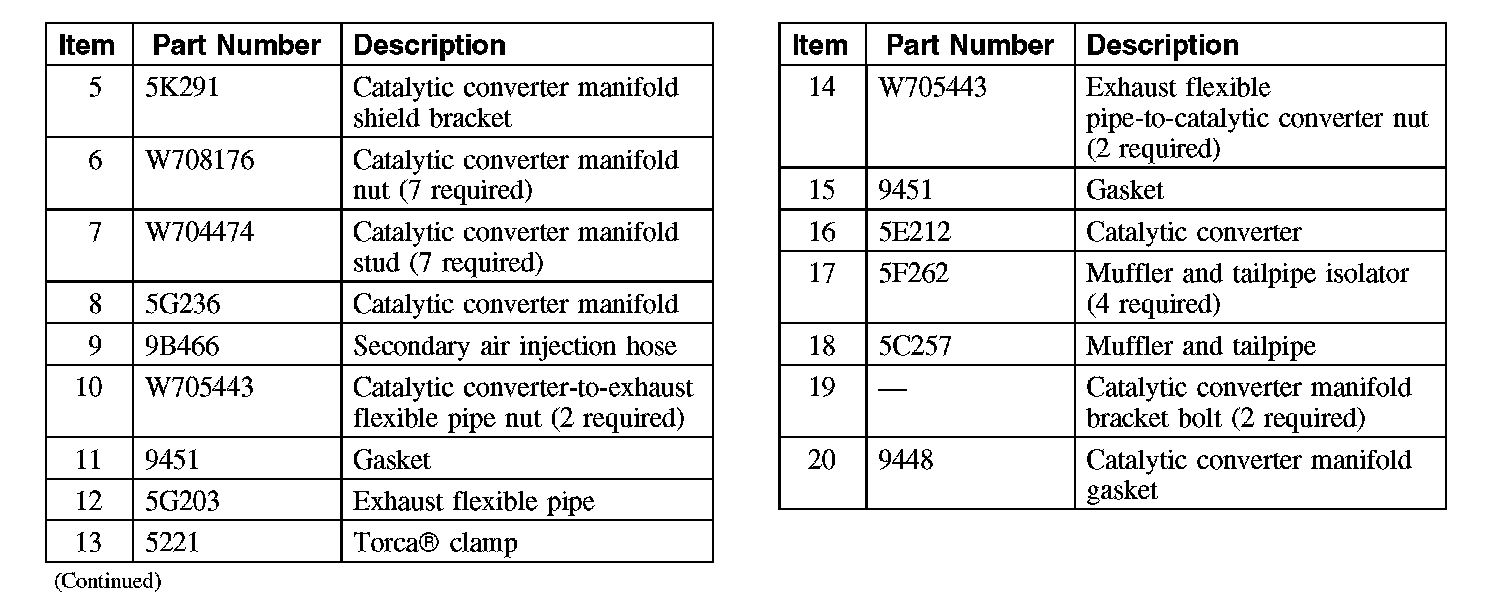

2.3L PZEV (Part 2):

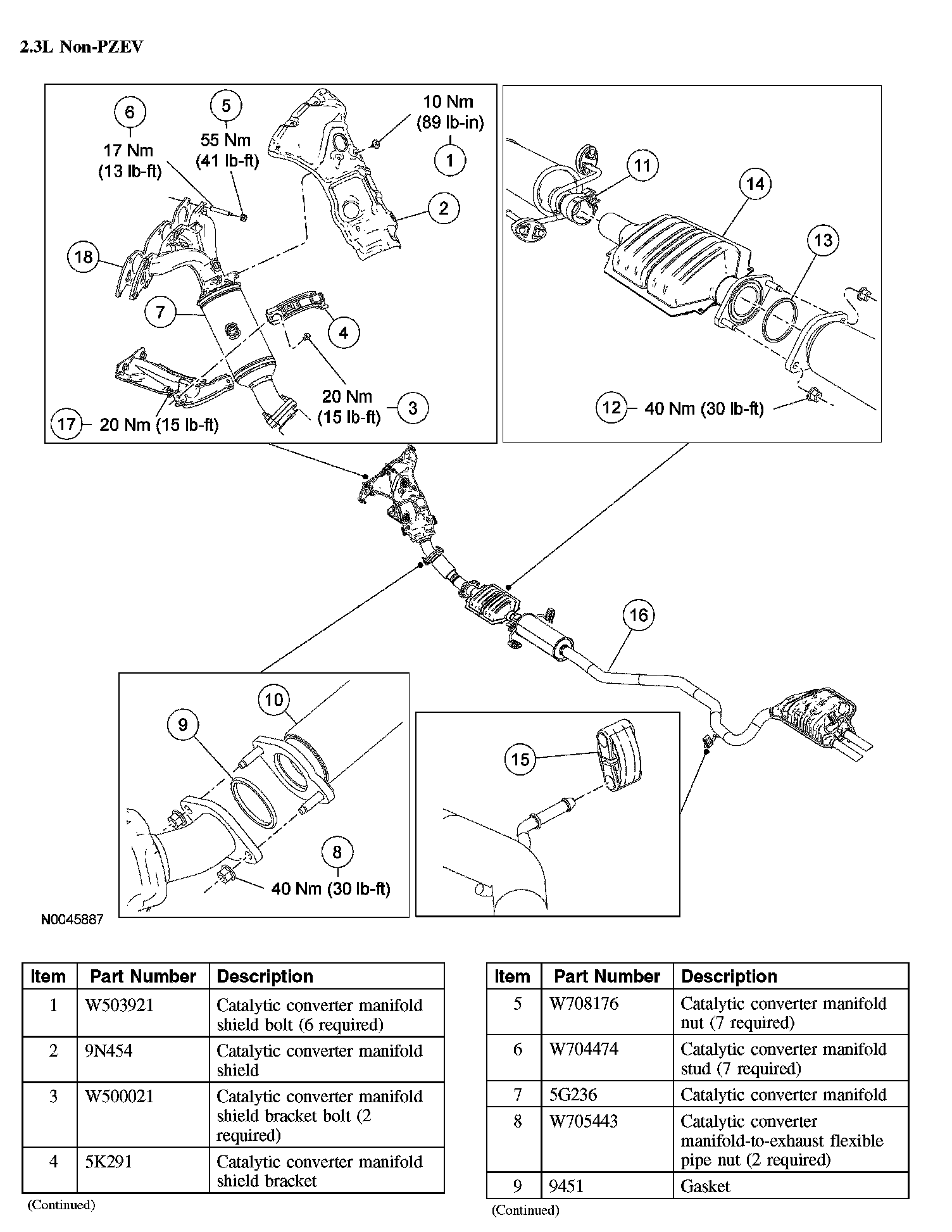

2.3L Non-PZEV (Part 1):

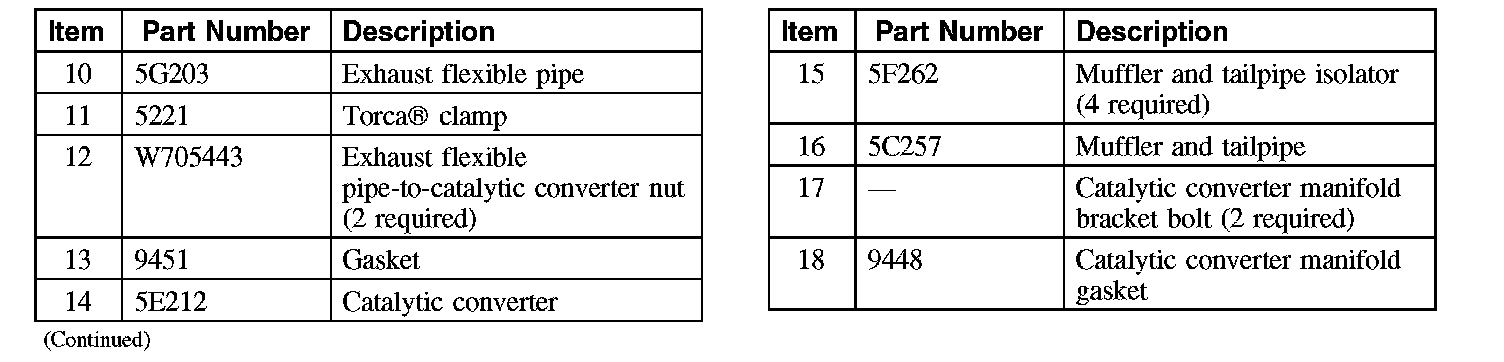

2.3L Non-PZEV (Part 2):

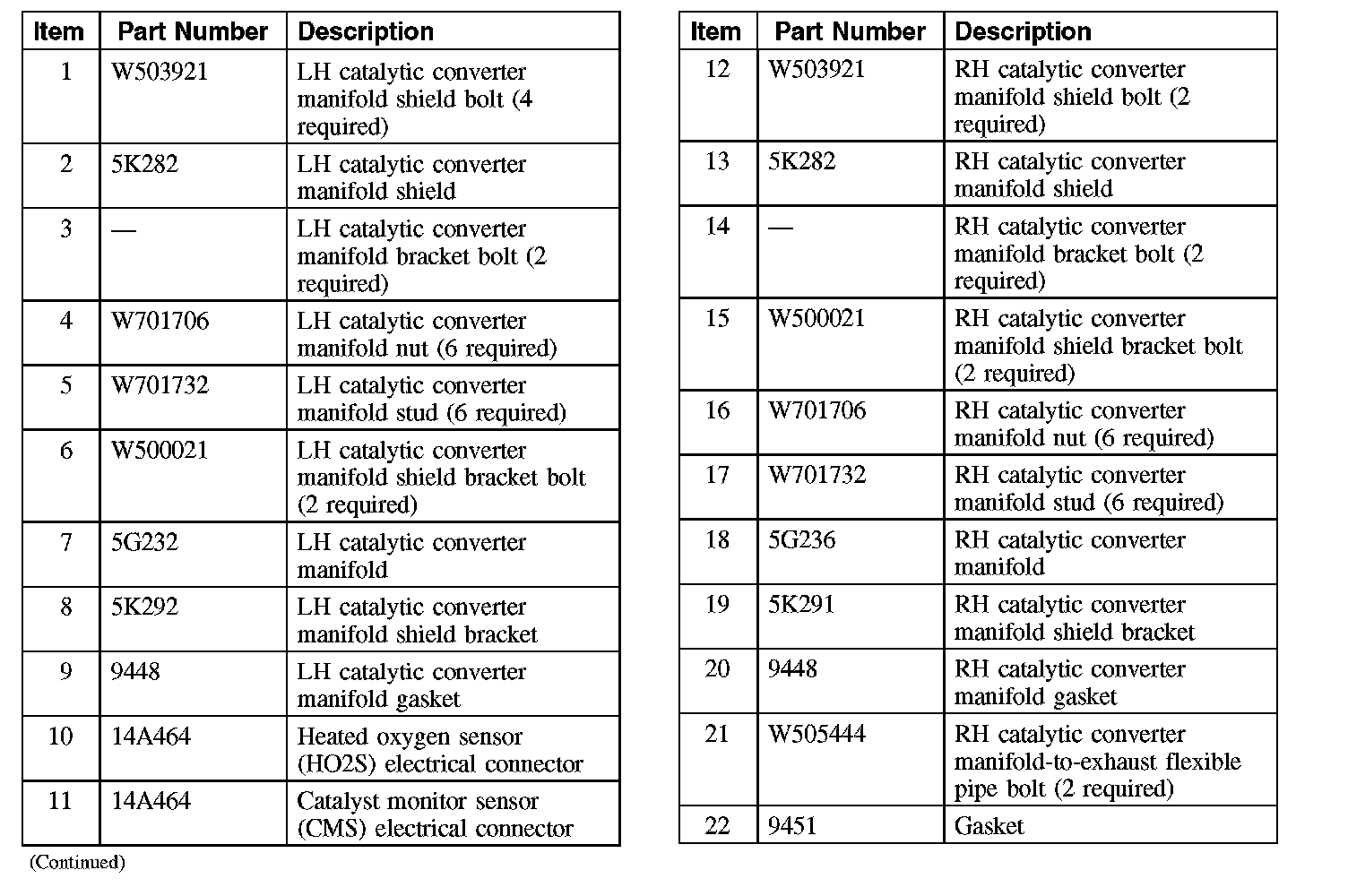

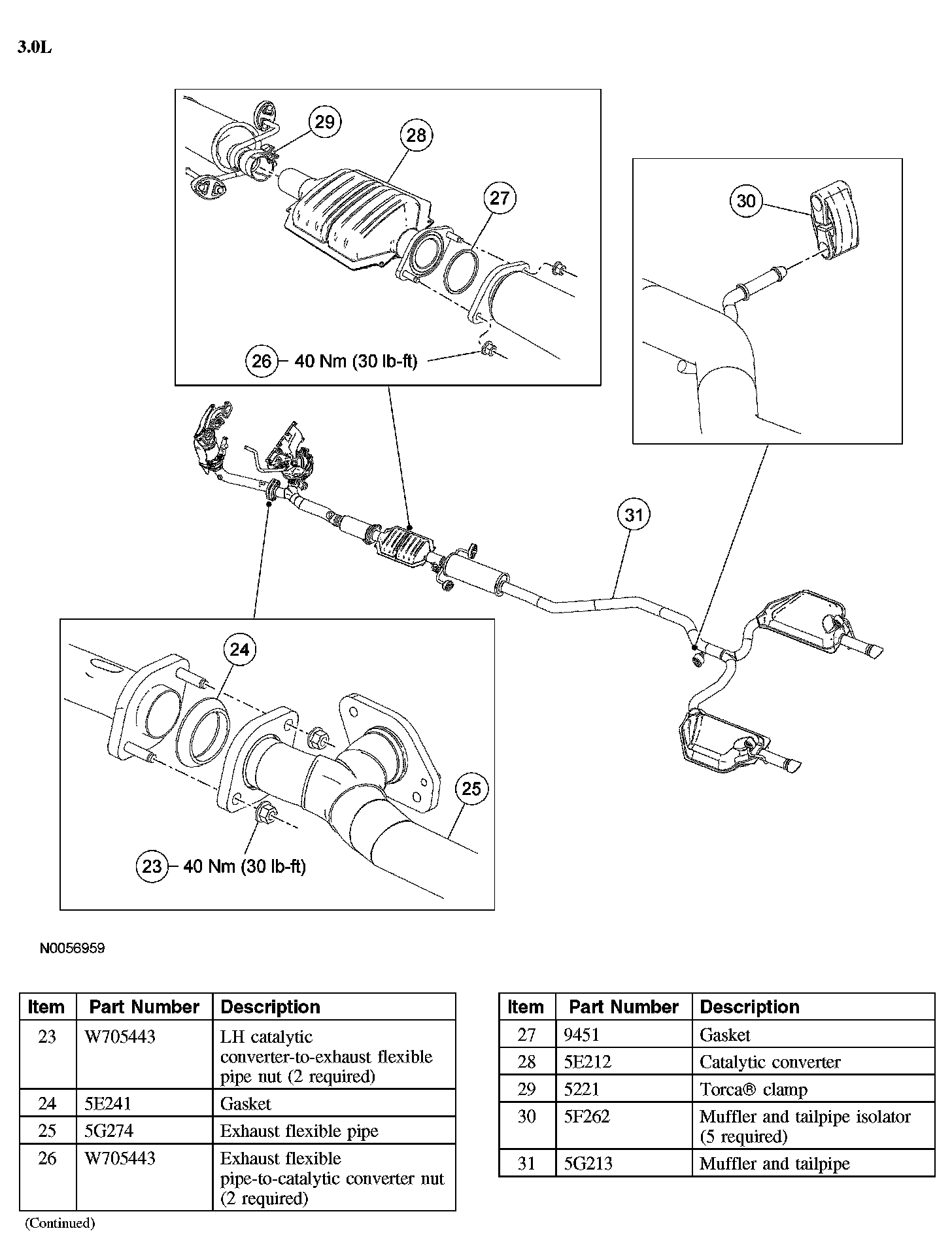

3.0L (Part 1):

3.0L (Part 2):

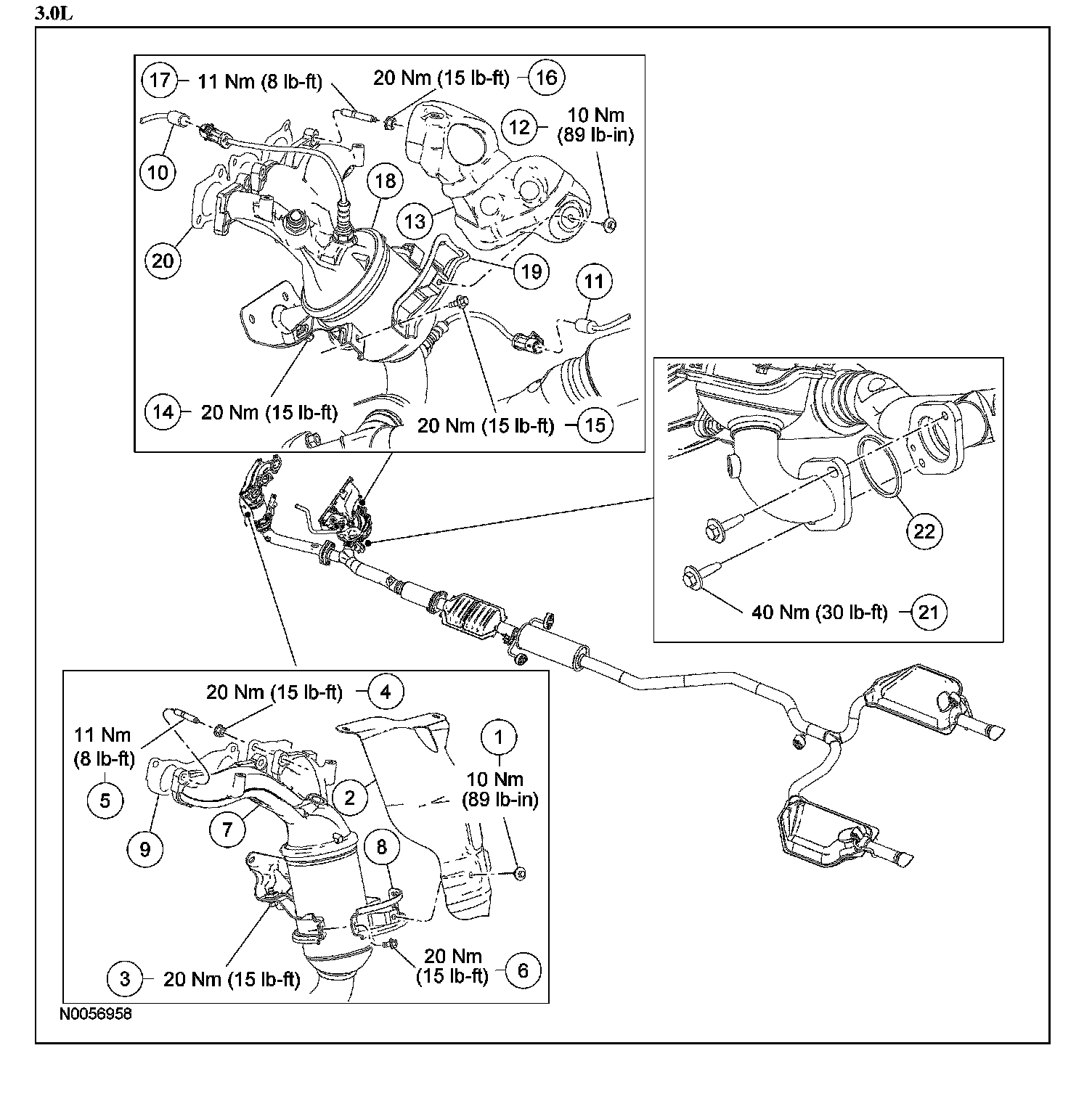

3.0L:

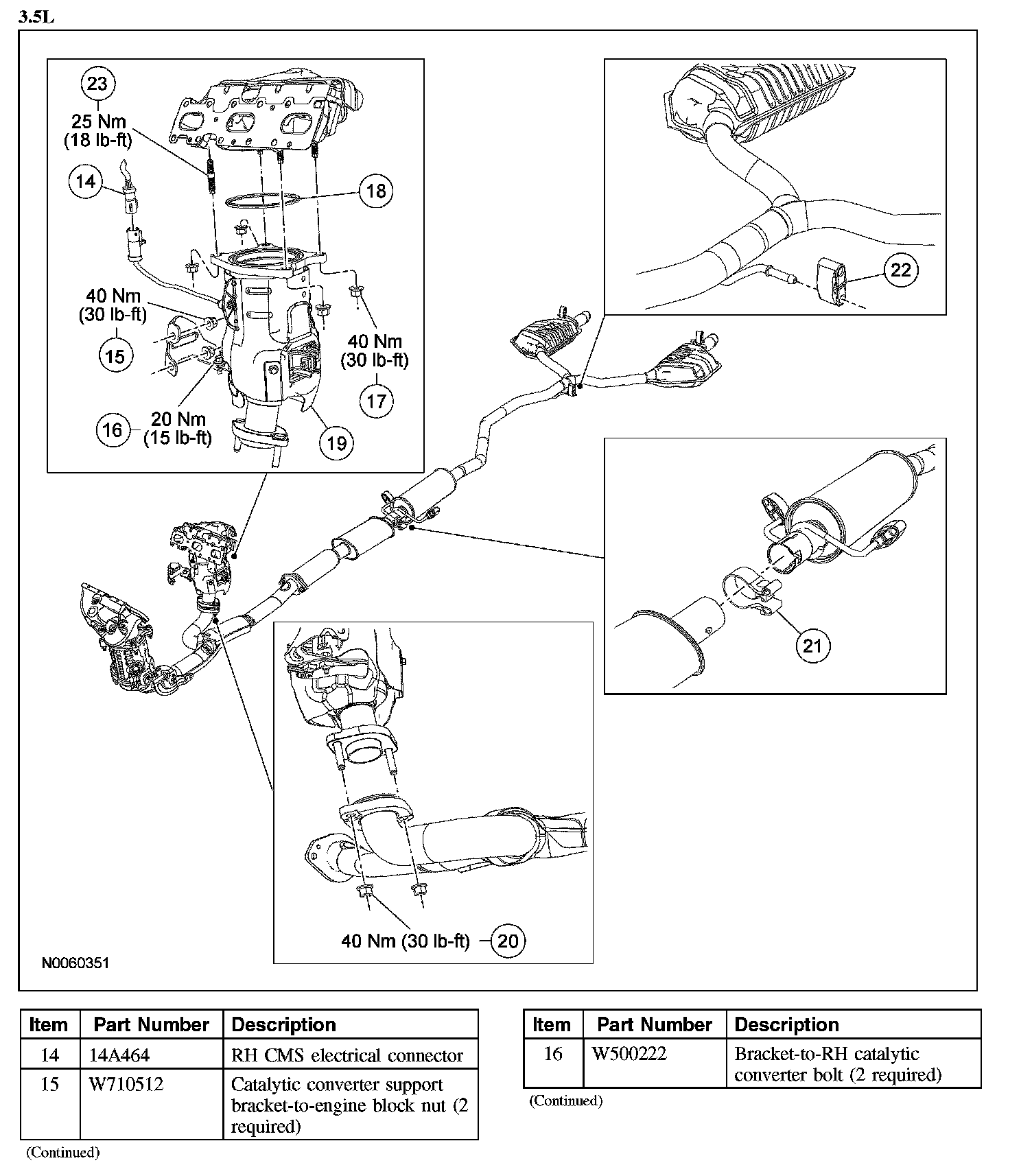

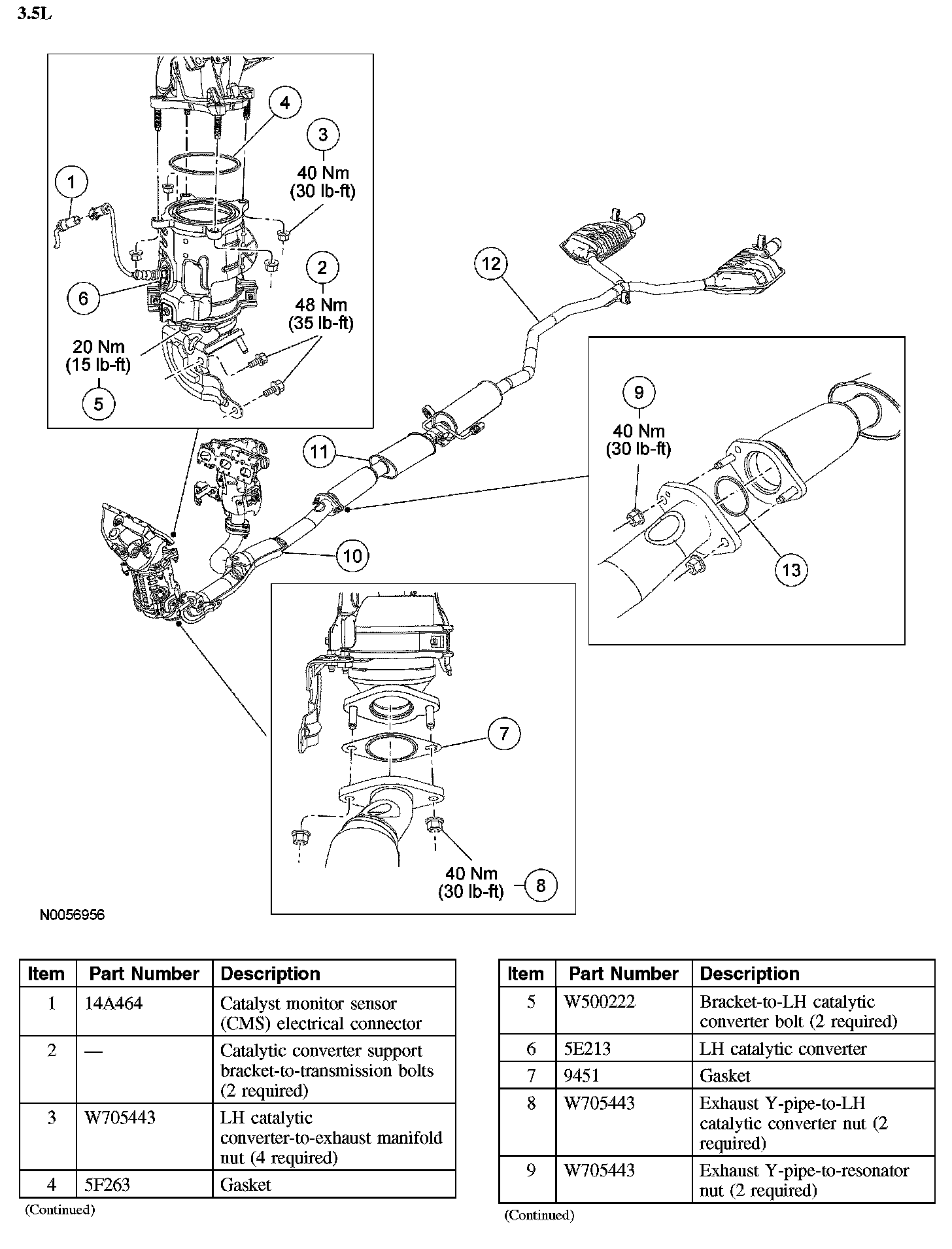

3.5L (Part 1):

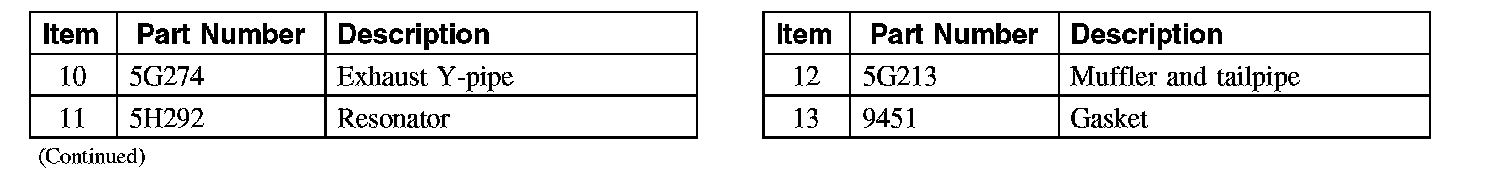

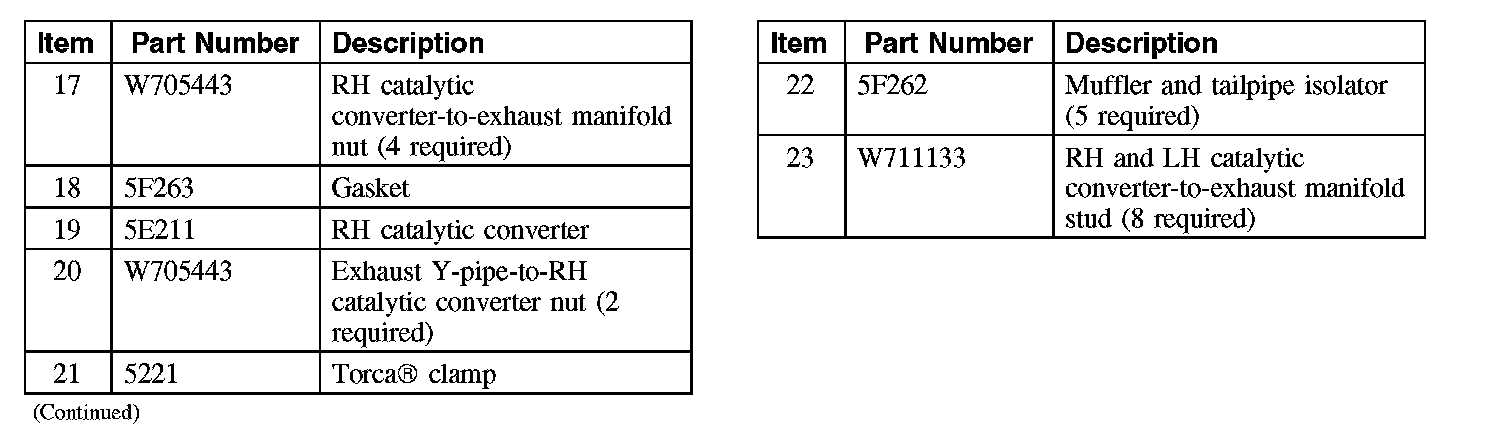

3.5L (Part 2):

3.5L (Part 1):

3.5L (Part 2):

1. For additional information, refer to the procedures.
