Control Assembly: Service and Repair

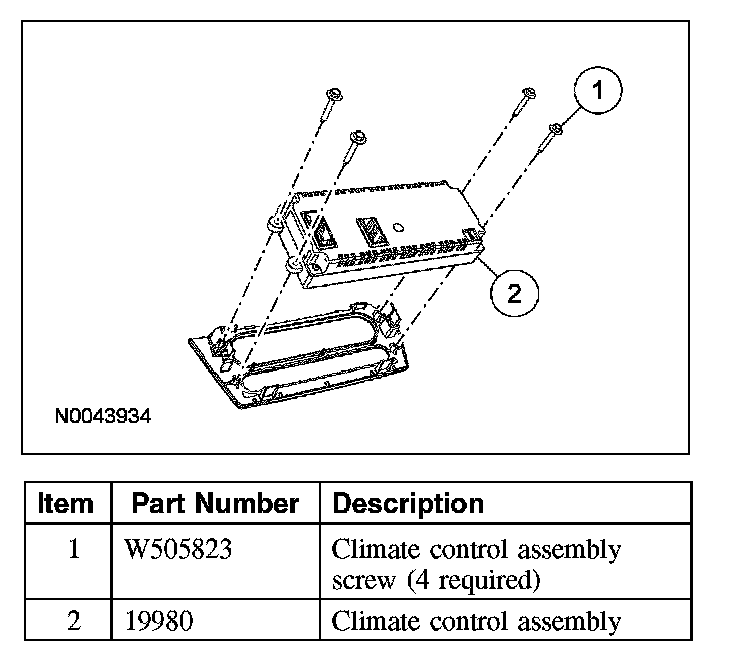

CLIMATE CONTROL ASSEMBLY







Removal and Installation
1. Remove the instrument panel lower center finish panel.
2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.
4. To install, reverse the removal procedure.
