Test C: The Anti-Lock Brake System (ABS) Module Does Not Respond To The Scan Tool

PINPOINT TEST C: THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE DOES NOT RESPOND TO THE SCAN TOOL

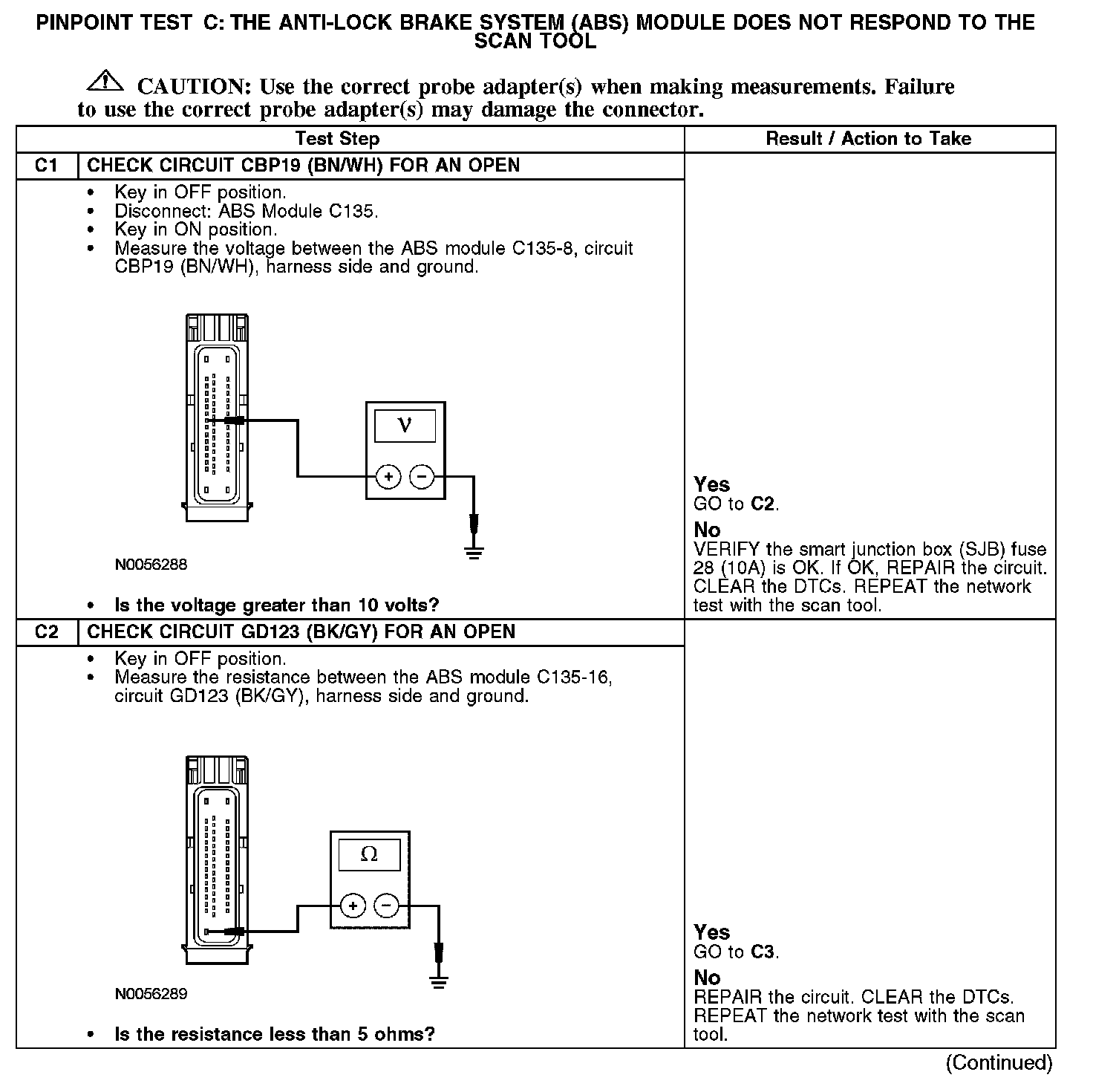

C1-C2:

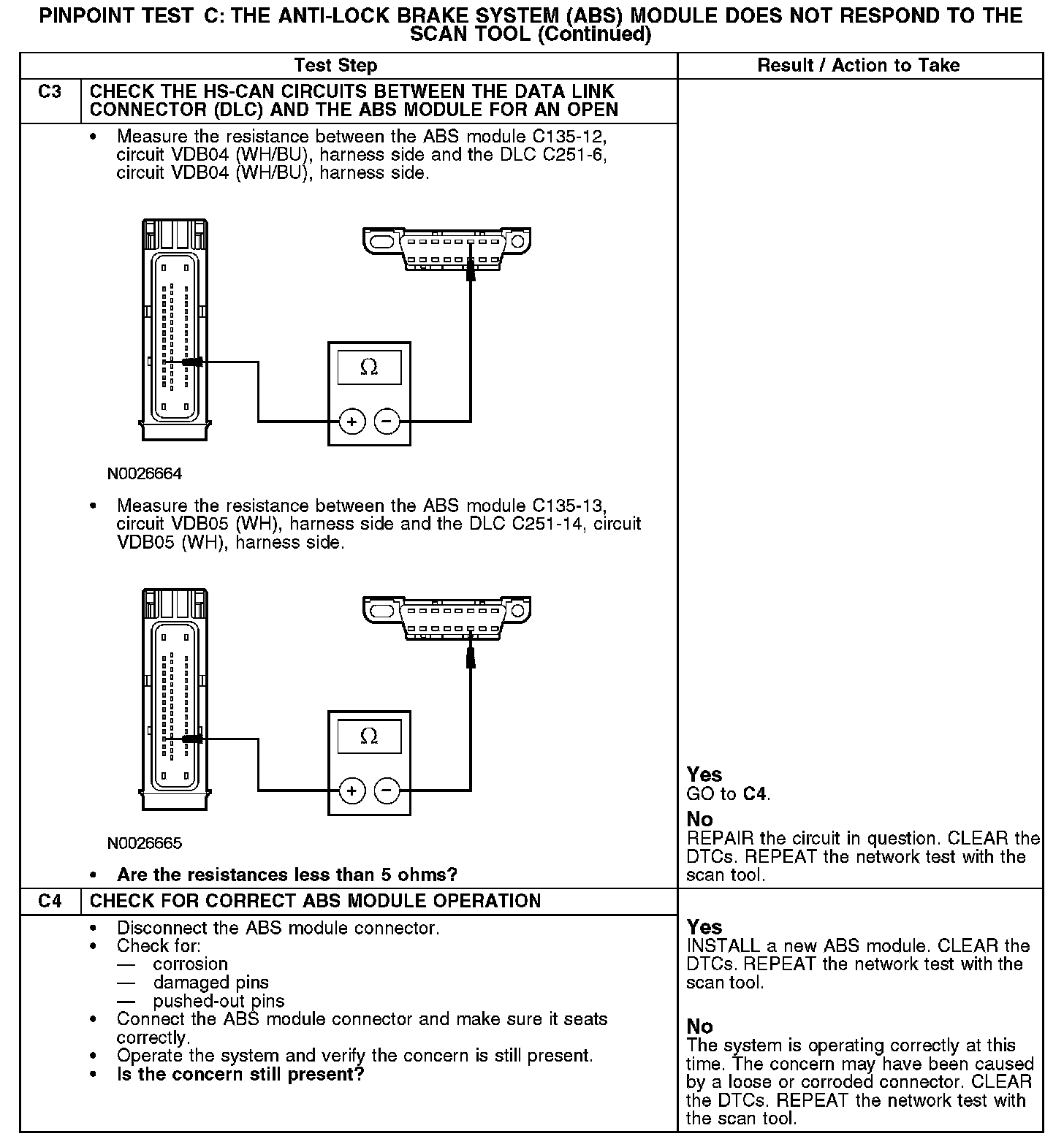

C3-C4:

Normal Operation
The ABS module communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the network connection to the ABS module. The ABS module shares the HS-CAN network with the powertrain control module (PCM), the transmission control module (TCM), the restraints control module (RCM), the four wheel drive (4WD) control module (if equipped), the occupant classification sensor module and the instrument cluster. Voltage for the ABS module is provided by circuit CBP19 (BN/WH). Ground is provided by circuit GD123 (BK/GY).

Possible Causes
- Fuse
- Circuit CBP19 (BN/WH) open
- Circuit GD123 (BK/GY) open
- Circuit VDB04 (WH/BU) open (HS-CAN +)
- Circuit VDB05 (WH) open (HS-CAN -)
- ABS module
