Oil Pump, Engine

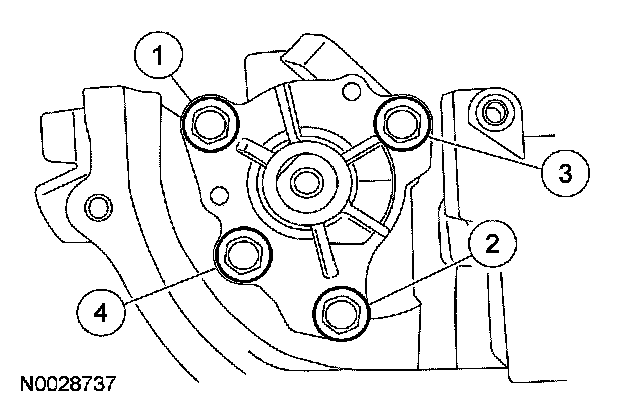

Oil PumpInstall the oil pump assembly. Tighten the 4 bolts in the sequence shown in 2 stages:
^ Stage 1: Tighten to 10 Nm (89 inch lbs.)
^ Stage 2: Tighten to 20 Nm (15 ft. lbs.)
Install the oil pump assembly. Tighten the 4 bolts in the sequence shown in 2 stages:
^ Stage 1: Tighten to 10 Nm (89 inch lbs.)
^ Stage 2: Tighten to 20 Nm (15 ft. lbs.)
