Torque Specifications

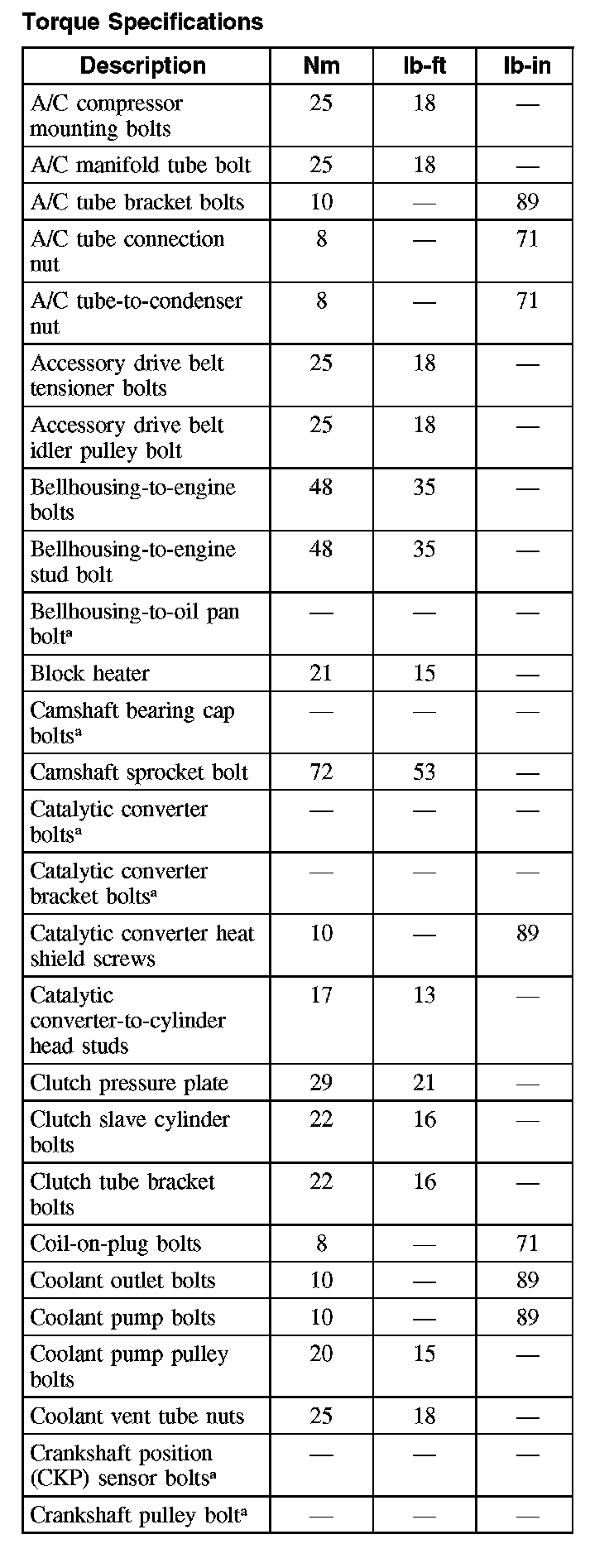

Torque SpecificationsTorque Specifications:

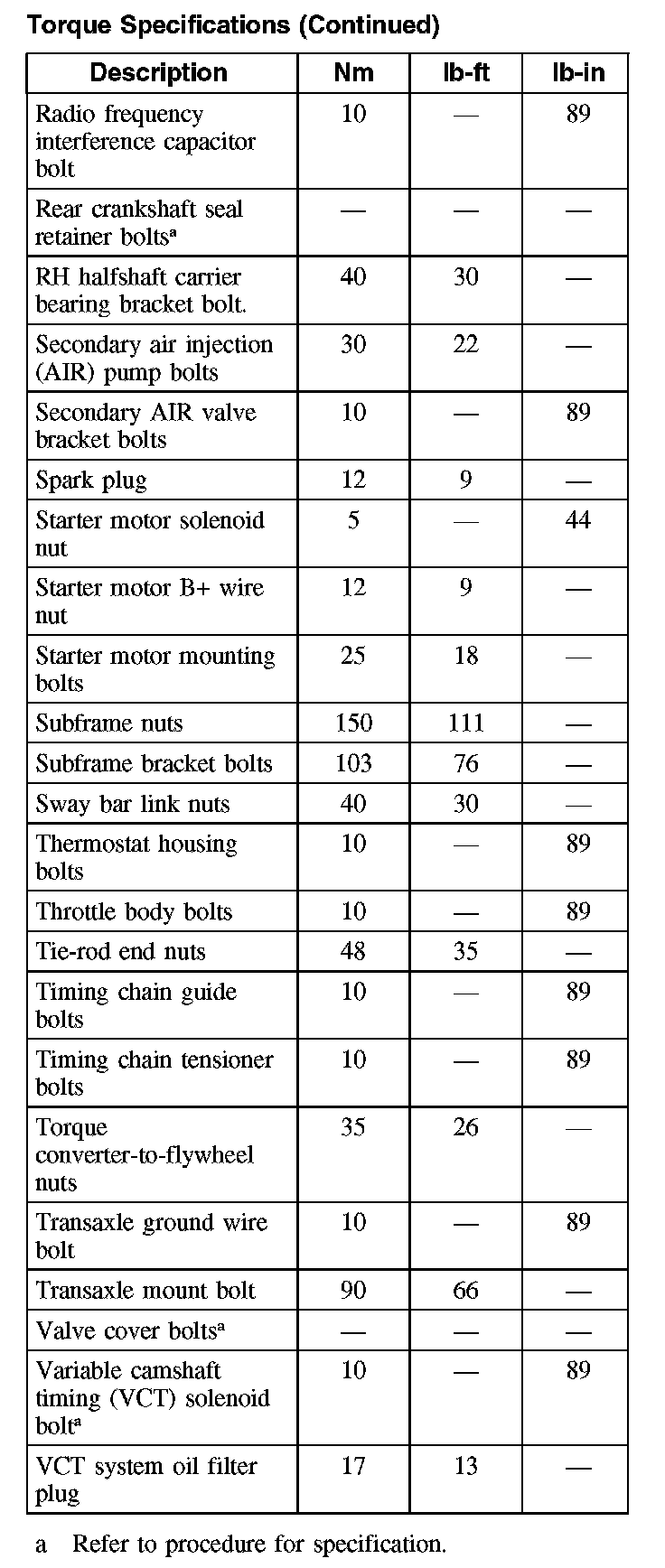

Torque Specifications:
Torque Specifications:
Torque Specifications:
Exhaust Manifold
CAUTION: Failure to tighten the catalytic converter manifold nuts to specification before installing the converter bracket bolts will cause the converter to develop an exhaust leak.
CAUTION: Failure to tighten the catalytic converter manifold nuts to specification a second time will cause the converter to develop an exhaust leak.
NOTE: Make sure to tighten the nuts in the sequence in 2 stages.

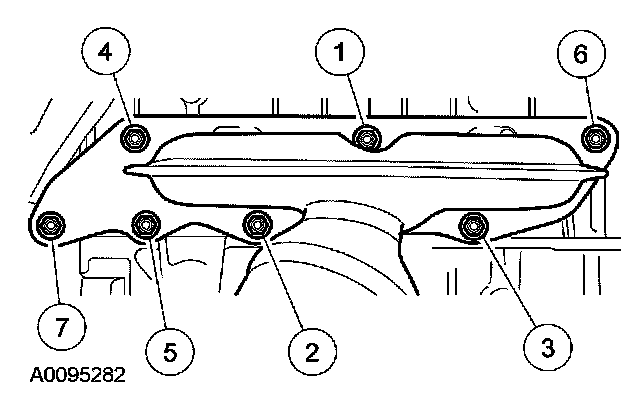

Tighten the 7 new nuts in the sequence shown, in 2 stages.
^ Stage 1: Tighten to 55 Nm (41 ft. lbs.).
^ Stage 2: Tighten to 55 Nm (41 ft. lbs.).
