FNR5 - Automatic Transaxle/Transmission

Transmission Control Module (TCM)

Transmission Control Module:

Removal

1. NOTE: The transmission control module (TCM) is located under the LH side of the instrument panel.

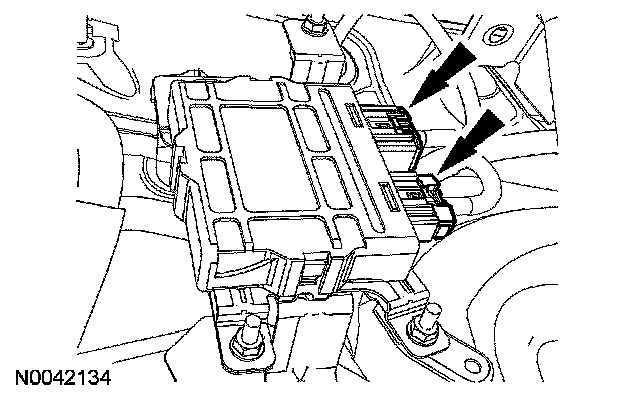

Disconnect the 2 electrical connectors.

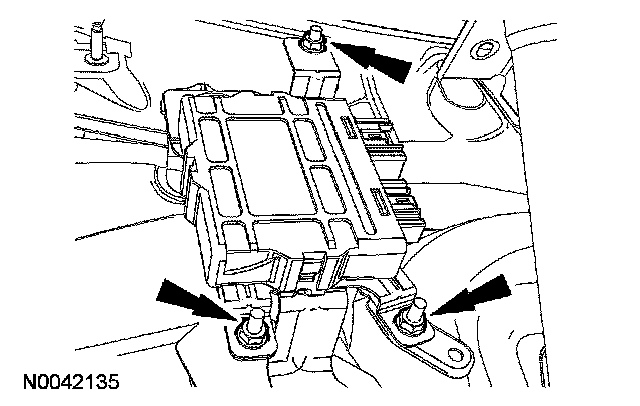

2. Remove the 3 nuts and remove the TCM.
- To install, tighten to 10 Nm (89 inch lbs.).





Installation
1. To install, reverse the removal procedure.
