Anti-Lock Brake System (ABS) Module: Notes

NOTE: Standard anti-lock brake system (ABS) shown, ABS with traction control similar.

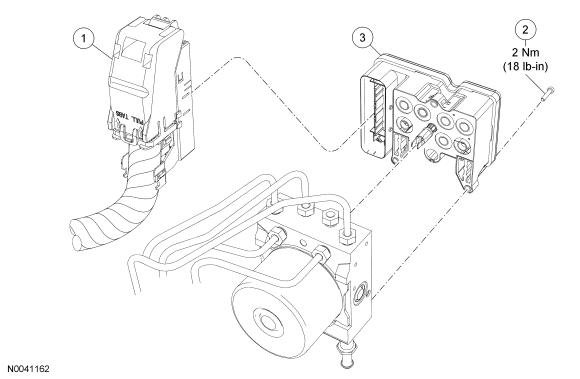

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Anti-lock brake system (ABS) module electrical connector
2	-	ABS module screw (3 required)
3	2C346	ABS module
