External Controls

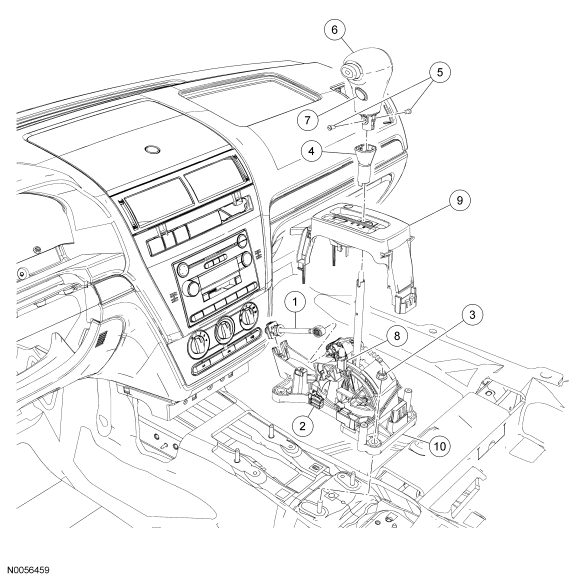

| Item | Part Number | Description |
|---|---|---|
| 1 | 7E395 | Selector lever cable |
| 2 | 14489 | Selector lever electrical connector |
| 3 | W520102 | Selector lever nut (4 required) |
| 4 | - | Lower selector lever knob bezel |
| 5 | - | Selector lever knob bolts |
| 6 | 7L010 | Selector lever knob |
| 7 | - | Transmission control (TC) switch (3.5L engine) (part of 7L010) (MKZ only) |
| 8 | - | PRNDL light |
| 9 | 7E034 | PRNDL bezel |
| 10 | 7K004 | Selector lever assembly (Items 4-10) |
The transaxle selector lever control linkage consists of:
- a selector lever cable that connects the transaxle range selector lever to the floor selector lever assembly.
- a brake shift interlock actuator that is integral to the floor selector lever assembly.
The floor selector lever assembly:
- locks the transaxle range selector lever in the PARK position when the ignition switch is in the lock position.
- requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the lock position.
The MKZ transmission control (TC) switch is a momentary contact switch located on the selector lever knob that allows the driver to cancel the operation of OVERDRIVE.
