Selector Lever Bezel: Installation

Vehicles equipped with a TC switch

  1. Route the TC switch wiring harness through the selector lever knob bezel and the PRNDL bezel.
  2. All vehicles

    CAUTION: Be sure that the override lever is inserted in the override lever guide or the shift interlock override button will not work correctly.
    NOTE: Selector lever removed for clarity.
  3. Install the PRNDL bezel, selector lever knob and knob bezel on the selector lever.
    • Position the override lever in the override lever guide.
    • Make sure that the 3 locking tabs are locked in place.

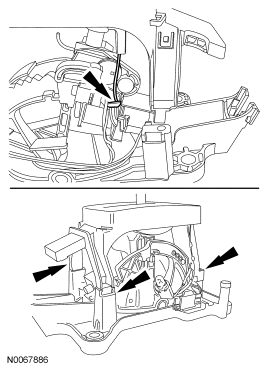

  4. Fig 1: Identifying PRNDL Bezel, Selector Lever Knob & Knob Bezel
    GF0029912Courtesy of FORD MOTOR CO.

    Vehicles equipped with a TC switch

  5. Connect the TC switch electrical connector and install the wiring harness retainer on the selector lever housing.
  6. Fig 2: Locating Transmission Control (TC) Switch Electrical Connector
    GF0029910Courtesy of FORD MOTOR CO.

    Vehicles equipped with LED illumination

  7. Connect the LED electrical connector.
  8. Fig 3: Locating LED Electrical Connector
    GF0029909Courtesy of FORD MOTOR CO.

    Vehicles equipped with a light bulb

  9. Connect the light to the PRNDL bezel.
  10. Fig 4: Locating Light From PRNDL Bezel
    GF0029908Courtesy of FORD MOTOR CO.

    All vehicles

    CAUTION: Do not overtighten the selector lever knob bolts or damage to the selector lever or knob may occur.
  11. Install the selector lever knob and 2 new bolts.
    • Tighten to 2 Nm (18 lb-in).
  12. Fig 5: Locating Bolts
    GF0029907Courtesy of FORD MOTOR CO.
  13. Slide the lower selector lever knob bezel up and snap it into place.
  14. Fig 6: Sliding Lower Shift Knob Bezel Up
    GF0029913Courtesy of FORD MOTOR CO.

    Fusion/Milan

  15. Connect the power outlet electrical connector.
  16. Fig 7: Locating Power Outlet Electrical Connector
    GF0029905Courtesy of FORD MOTOR CO.
  17. Install the power outlet trim panel in the center console.
  18. Fig 8: Locating Power Outlet Trim Panel
    GF0029904Courtesy of FORD MOTOR CO.

    All vehicles

  19. Install the upper console panel.
  20. Fig 9: Locating Upper Console Panel
    GF0029903Courtesy of FORD MOTOR CO.
  21. Install the PRNDL trim ring.
  22. Fig 10: Locating PRNDL Trim Ring
    GF0029902Courtesy of FORD MOTOR CO.
