Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module (2.3L) | Right front of engine compartment. See Figure. |
| ABS Control Module (3.0L) | Right front of engine compartment. See Figure. |
| ABS Control Module (3.5L) | Right front of engine compartment. See Figure. |
| All Wheel Drive Control Module | Left kick panel. See Figure. |

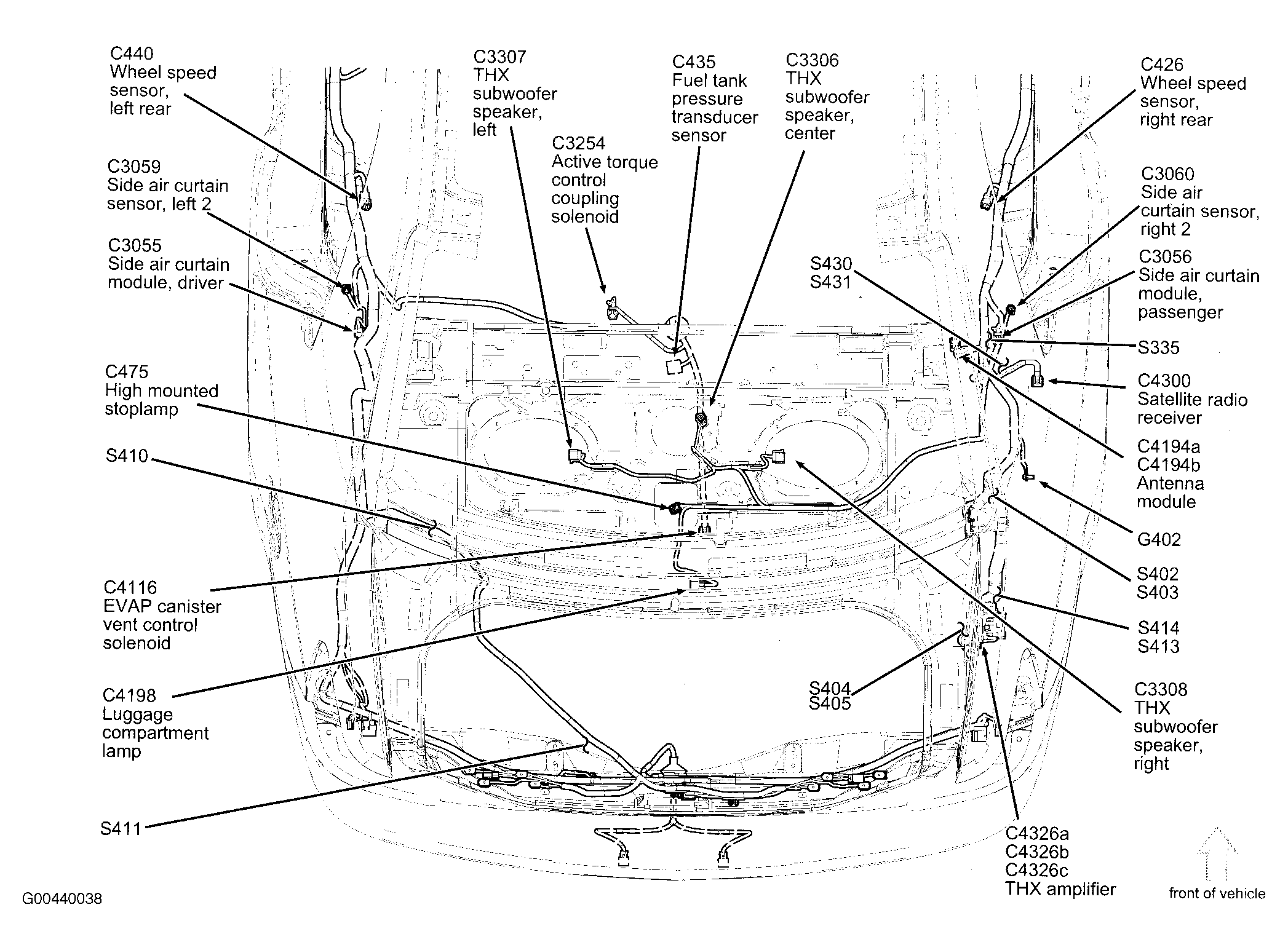

| Antenna Module (MKZ) | Right rear of trunk. See Figure. |
| Blower Motor Speed Controller (Front) | Right side of dash. See Figure. |
| Compass Module | Front center of roof. See Figure. |
| Compass Module (W/ Moonroof) | In roof harness. See Figure. |
| Digital Signal Processing (DSP) Module | Right rear of trunk compartment. See Figure. |
| Driver's Door Module | Front of driver's door. See Figure. |

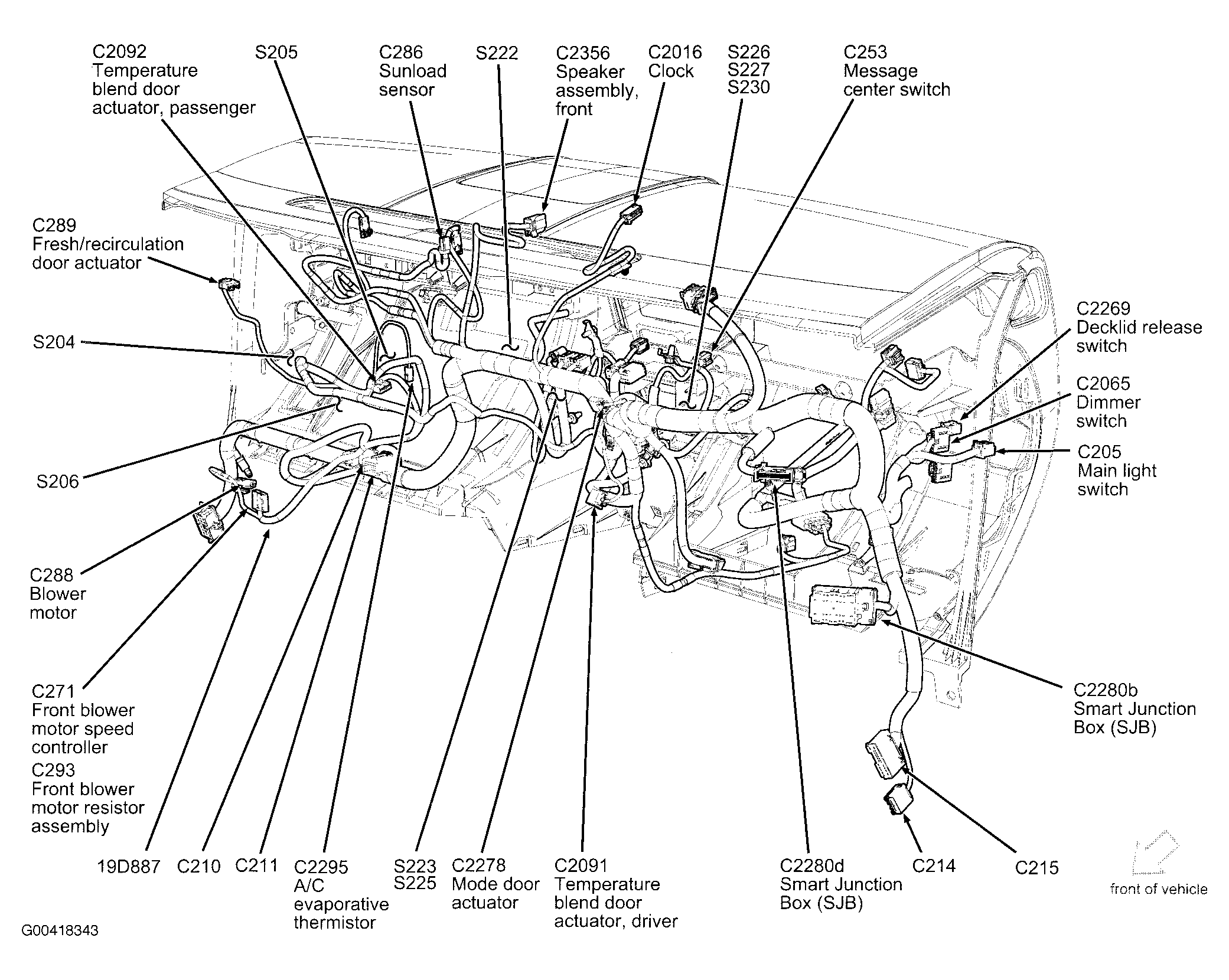

| Dual Automatic Temperature Control (DATC) Module | Center of dash. See Figure. |
| Electronic Automatic Temperature Control (EATC) Module | Center of dash. See Figure. |
| Electronic Throttle Control (EATC) Module (3.5L) | Right side of engine. See Figure. |
| Heated / Cooled Seat Module | Under seat bottom. See Figure. |
| Heated Seat Module | Under seat bottom. See Figure. |
| Intake Manifold Runner Control (IMRC) Module | Top of intake manifold. See Figure. |
| Manual Climate Control Module | Center of dash. See Figure. |
| Memory Module | Under driver's seat. See Figure. |
| Passive Anti-Theft Transceiver Module | Left side of dash. See Figure. |

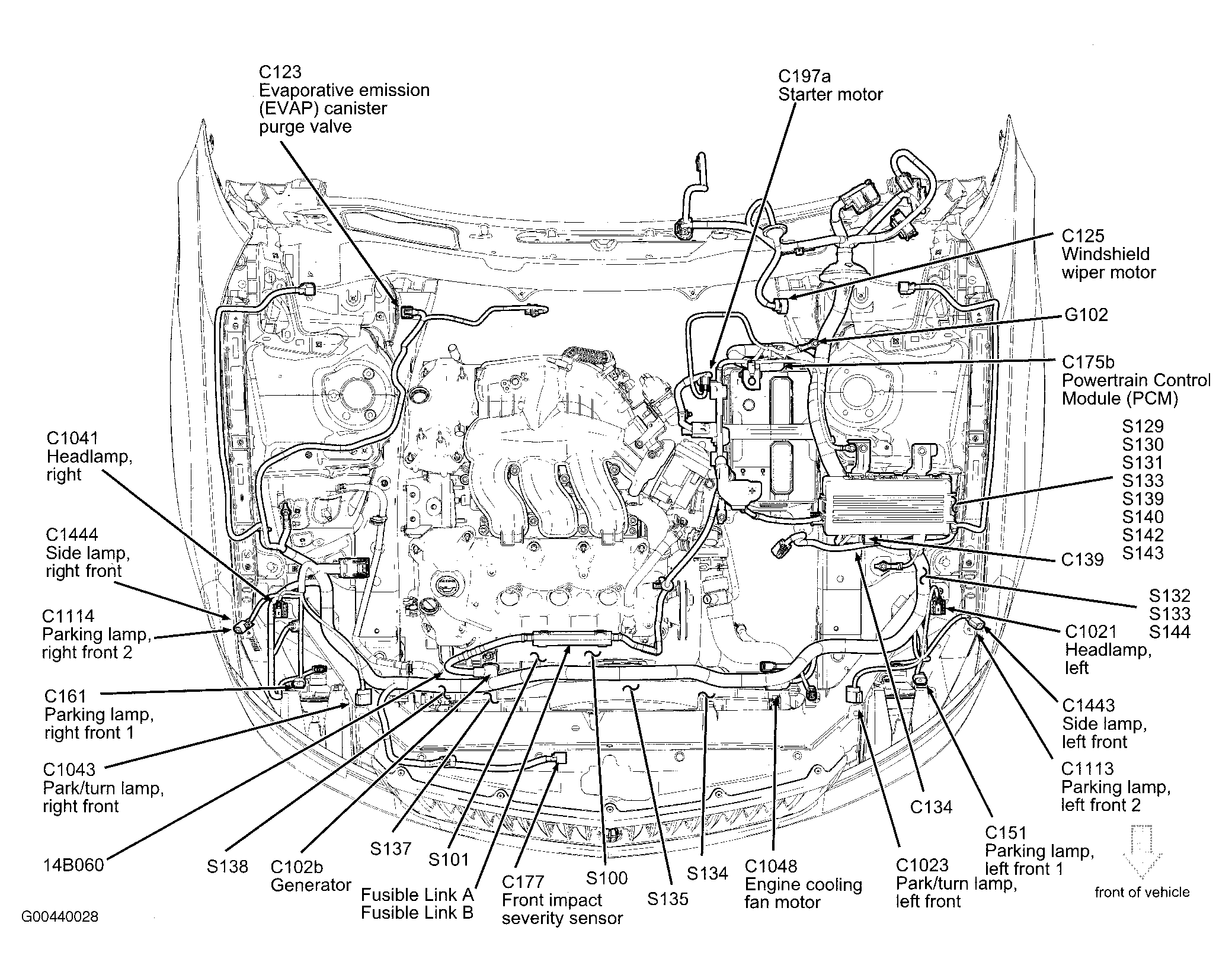

| Powertrain Control Module (PCM) (2.3L) | Left rear of engine compartment. See Figure. |
| Powertrain Control Module (PCM) (3.0L) | Left rear of engine compartment. See Figure. |
| Powertrain Control Module (PCM) (3.5L) | Left rear of engine compartment. See Figure. |

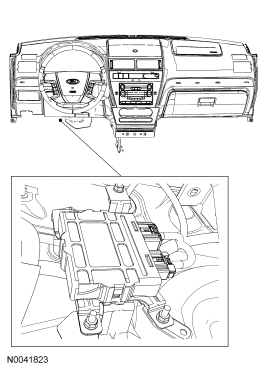

| Restraints Control Module (RCM) | Under center console. See Figure. |
| Roof Opening Panel Module | In roof harness. See Figure. |
| Side Air Curtain Module (Driver's) (Fusion) | Base of left "C" pillar. See Figure. |
| Side Air Curtain Module (Driver's) (Milan) | Base of left "C" pillar. See Figure. |
| Side Air Curtain Module (Driver's) (MKZ) | Base of left "C" pillar. See Figure. |
| Side Air Curtain Module (Passenger's) (Fusion) | Base of right "C" pillar. See Figure. |
| Side Air Curtain Module (Passenger's) (Milan) | Base of right "C" pillar. See Figure. |
| Side Air Curtain Module (Passenger's) (MKZ) | Base of right "C" pillar. See Figure. |

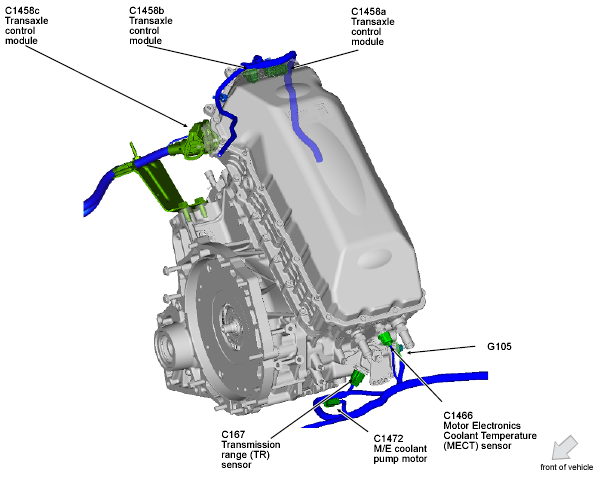

| Transaxle Control Module (AW21) | On transaxle. See Figure. |
| Transmission Control Module (FNR5) | Under instrument panel, LH side. See Figure. |
