Restraints Control Module Connectors

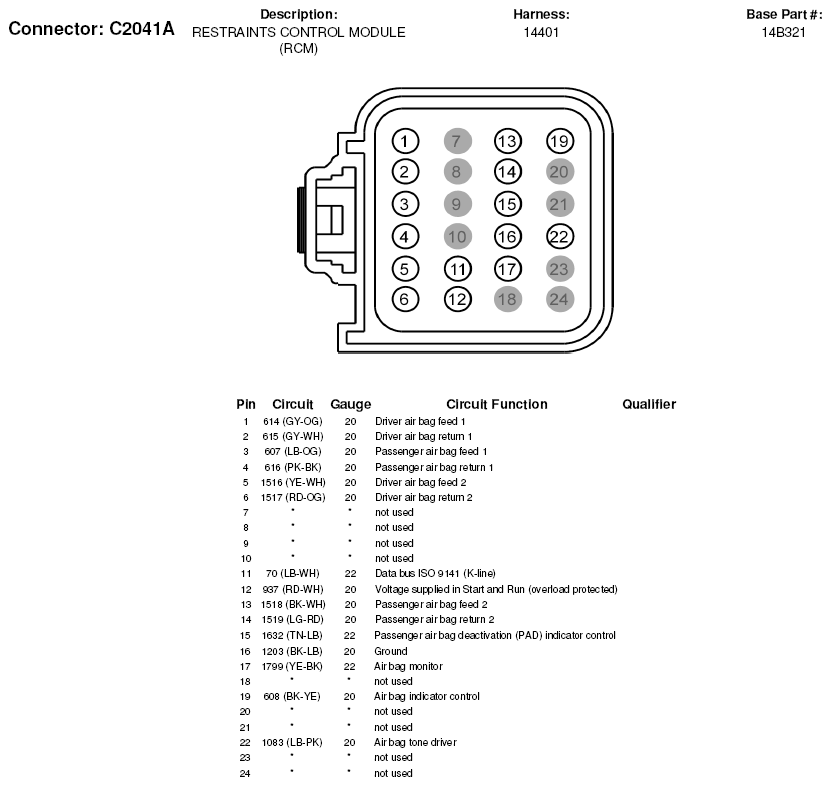

Fig 1: Restraints Control Module Connector End View (C2041A)
G05183339Courtesy of FORD MOTOR CO.

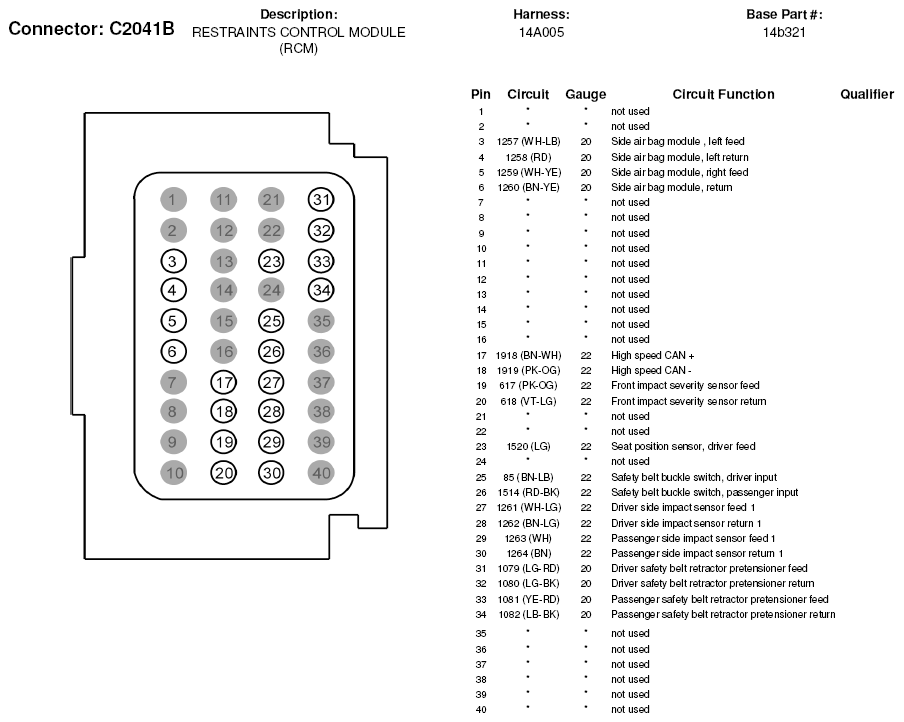

Fig 2: Restraints Control Module Connector End View (C2041B)
G05183340Courtesy of FORD MOTOR CO.
