Restraints Control Module (RCM): Notes

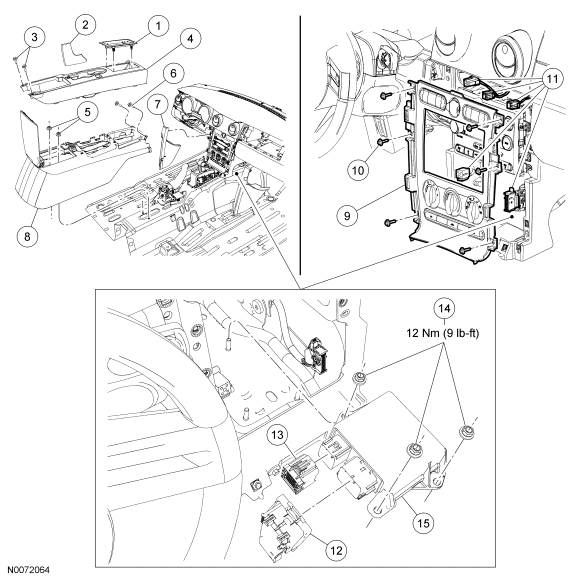

Fig 1: Restraints Control Module (RCM) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	F7E391	Shift lever bezel
2	466K48	Floor console mat
3	W505004	Floor console finish panel screws (2 required)
4	63044F06	Floor console finish panel
5	W711098	Floor console nuts (2 required)
6	W707628	Floor console screw (2 required)
7	04608 RH/ 04609 LH	Center stack wings
8	045A06	Floor console
9	6304302	Instrument panel center finish panel
10	W705314	Instrument panel center finish panel screw (6 required)
11	-	Instrument panel center finish panel electrical connectors (5 required) (part of 14401)
12	-	Restraints control module (RCM) large connector (part of 14A005)
13	-	RCM small connector (part of 14401)
14	W520111	RCM nuts (3 required)
15	14B321	RCM
