Exhaust System - Exploded View

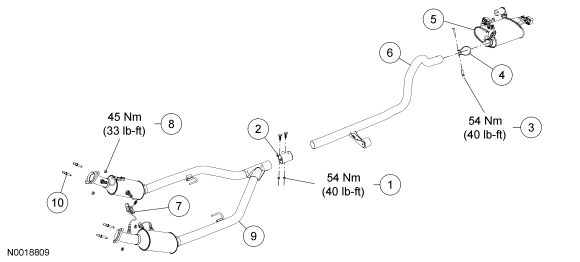

Fig 1: Exploded View Of Exhaust System With Torque Specifications - 4.0L (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Exhaust coupler nuts (2 required) (part of 5A281)
2	5A281	Exhaust coupler
3	-	Exhaust clamp nut (part of 5230)
4	5270	Exhaust clamp
5	5230	Muffler
6	5A212	Intermediate pipe
7	-	HO2S electrical connectors
8	N811485-S	Catalytic converter-to-manifold nuts (4 required)
9	5F250	Catalytic converter assembly (Y-pipe)
10	W709209-S	Exhaust manifold studs (4 required)

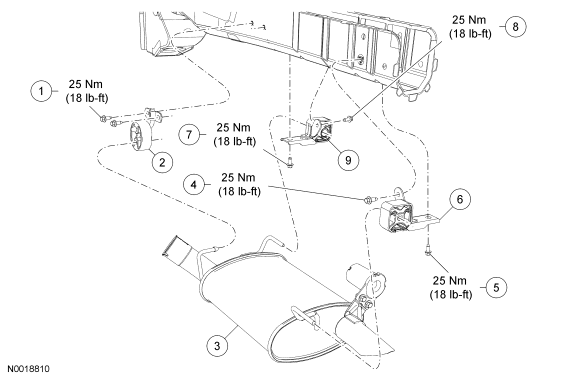

Fig 2: Exploded View Of Exhaust System With Torque Specifications - 4.0L (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707079-S	RH rear isolator bolt (2 required)
2	5A262	RH rear isolator
3	5230	Muffler
4	W707079-S	Front isolator top bolt
5	W707079-S	Front isolator bottom bolt
6	5A246	Front isolator
7	W707079-S	LH rear isolator bottom bolt
8	W707079-S	LH rear isolator top bolt
9	5A246	LH rear isolator

NOTE: 4.6L shown, 5.4L similar.

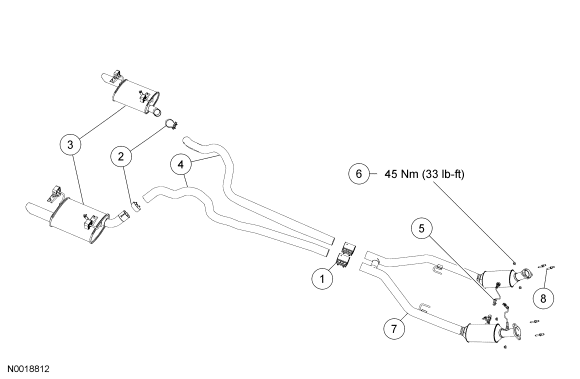

Fig 3: Exploded View Of Exhaust System With Torque Specifications - 4.6L (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5A281	Exhaust coupler
2	5270	Exhaust clamp
3	5230/5232	Muffler (RH/LH)
4	5A212/5A213	Intermediate pipe (RH/LH)
5	-	HO2S electrical connectors
6	N811485-S	Catalytic converter-to-manifold nuts (4 required)
7	5F250	Catalytic converter assembly (H-pipe)
8	W709209-S	Exhaust manifold studs (4 required)

Fig 4: Exploded View Of Exhaust System With Torque Specifications - 4.6L (2 Of 2)

Courtesy of FORD MOTOR CO.
