Child Safety Seat Tether Anchor - LATCH: Notes

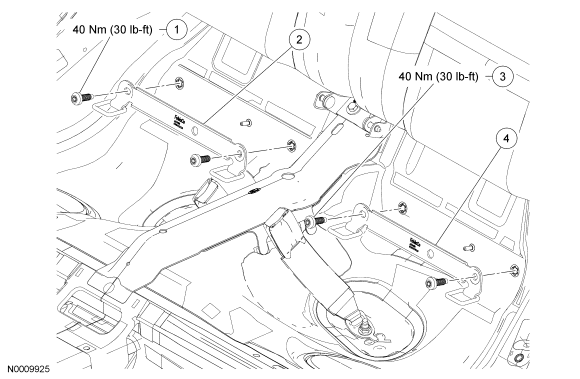

Fig 1: Child Safety Seat Tether Anchor - Latch With Torque Specifications
GF0014908Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W700833- S437MXD Lower Anchors and Tethers for Children (LATCH) bolt (2 required)
2 601B28 LATCH
3 W700833- S437MXD LATCH bolt (2 required)
4 601B28 LATCH
