Forward Clutch: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) | |
| Protector, Piston Seal | 307-051 (T74P-77548-A) | |
| Gauge, Forward Clutch Seal | 307-434 |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

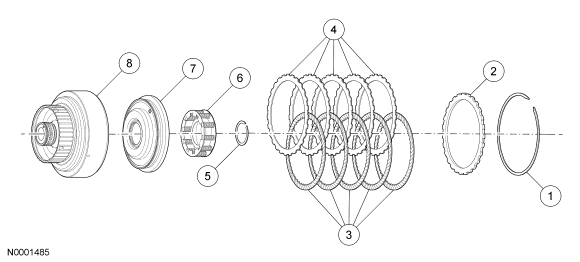

| Item | Part Number | Description |
|---|---|---|
| 1 | 7D483 | Forward clutch retaining ring (select fit) |
| 2 | 7B066 | Forward clutch pressure plate |
| 3 | 7B164 | Forward clutch internal plates - friction (vehicle-dependent) |
| 4 | 7B442 | Forward clutch external plates - steel (vehicle-dependent) |
| 5 | E860109 | Forward clutch retaining ring |
| 6 | 7G229 | Forward clutch spring assembly |
| 7 | 7A262 | Forward clutch piston |
| 8 | 7A360 | Forward clutch cylinder assembly |
