Digital Transmission Range (TR) Sensor: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000909
 Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)

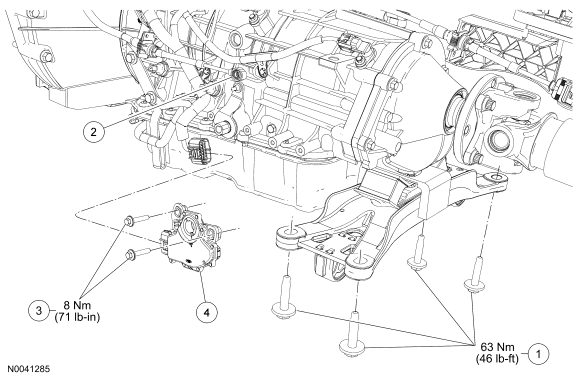

Fig 1: Exploded View Of Digital Transmission Range (TR) Sensor With Torque Specifications
GF0000934Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704971 Transmission crossmember-to-floor pan screws
2 7E395 Transmission selector lever cable
3 W500015 Digital transmission range (TR) sensor screws
4 7F293 Digital TR sensor
