Transmission Support Crossmember: Notes

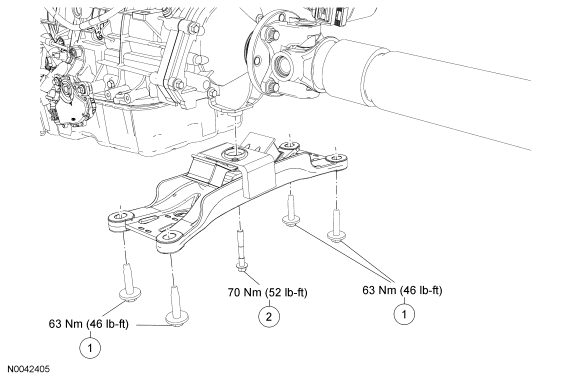

Fig 1: Exploded View Of Transmission Support Crossmember With Torque Specifications
GF0000935Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Transmission crossmember-to-floor pan screws
2 - Transmission insulator-to-extension housing center screw
