Identification Codes: Notes

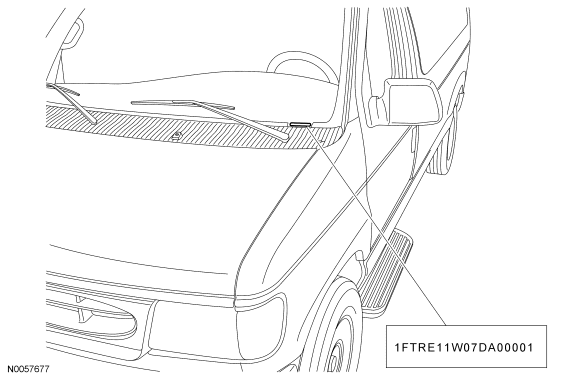

Fig 1: Vehicle Identification Number (VIN) Locator
GF0011165Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label.

Fig 2: Identifying VIN Number
GF0011166Courtesy of FORD MOTOR CO.
Item Description
1 World manufacturer identifier (WMI)
2 Brake type and gross vehicle weight rating (GVWR)
3 Vehicle line, series and body type
4 Engine type
5 Check digit
6 Model year
7 Assembly plant
8 Production sequence number
