Trunk / Liftgate

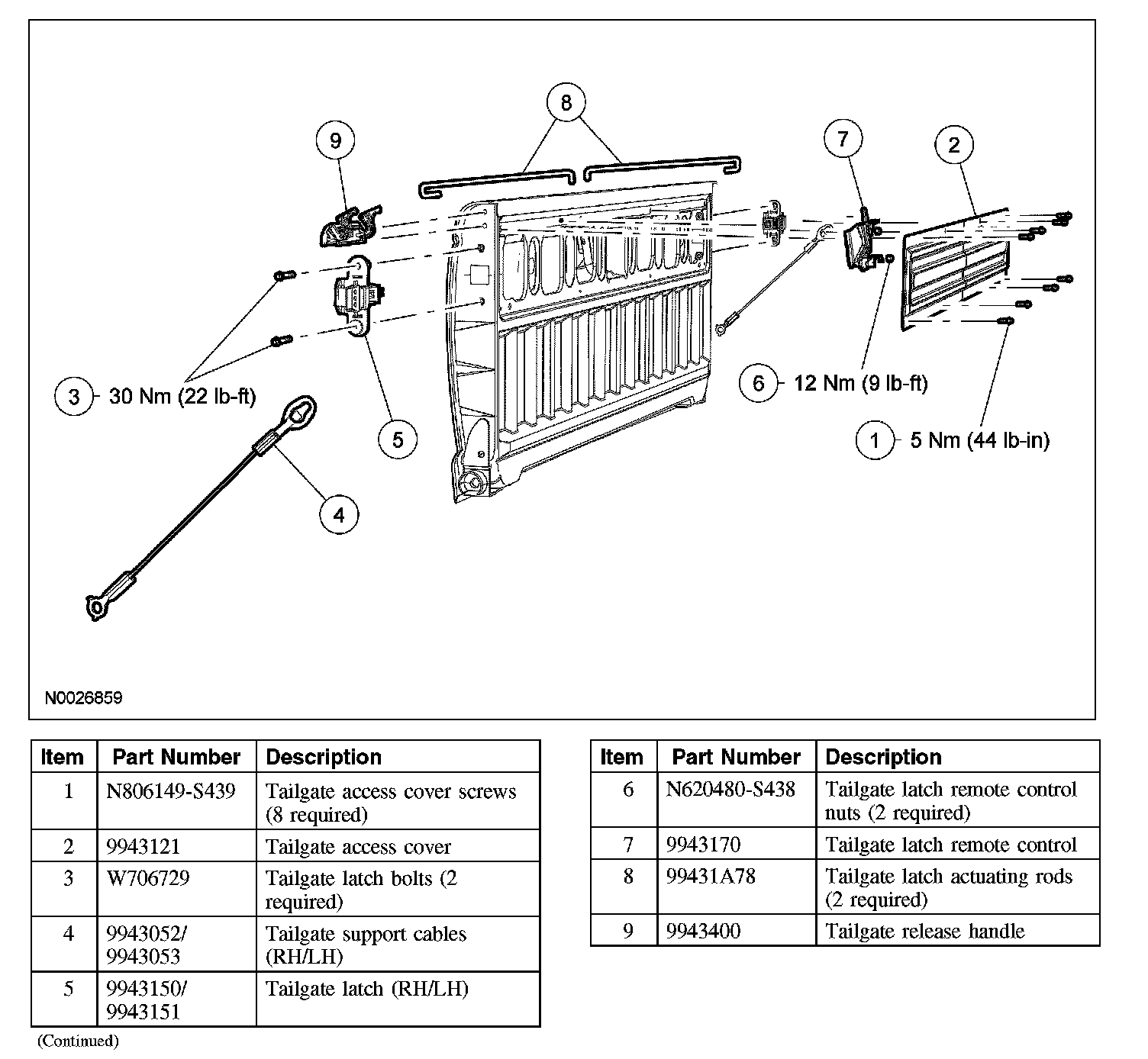

TAILGATE HANDLE, LOCK AND LATCHES - EXPLODED VIEW







Removal and Installation
1. For additional information, refer to the procedures.
