System Specifications

Torque Specifications

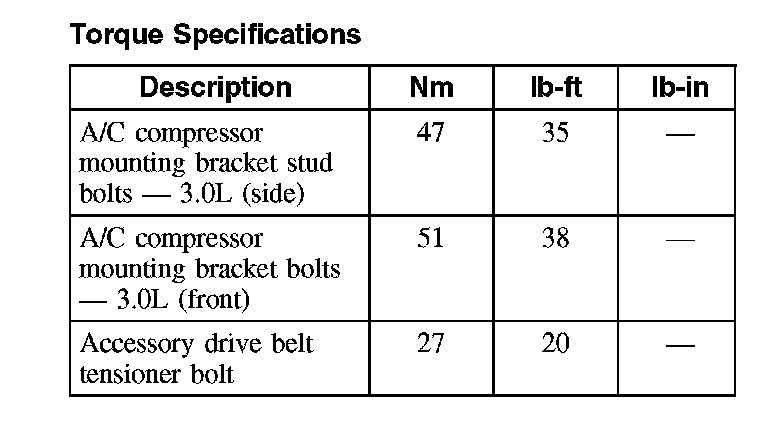

Torque Specifications (Part 1):

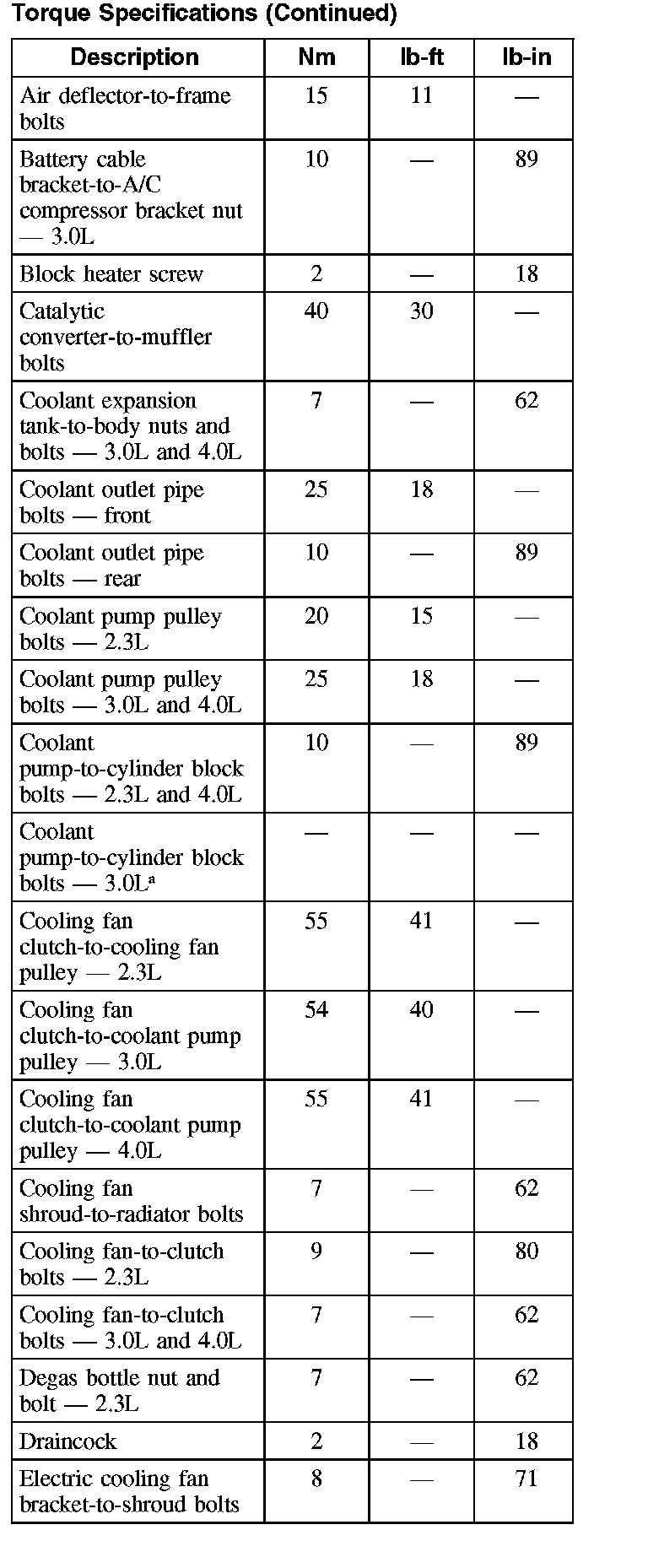

Torque Specifications (Part 2):

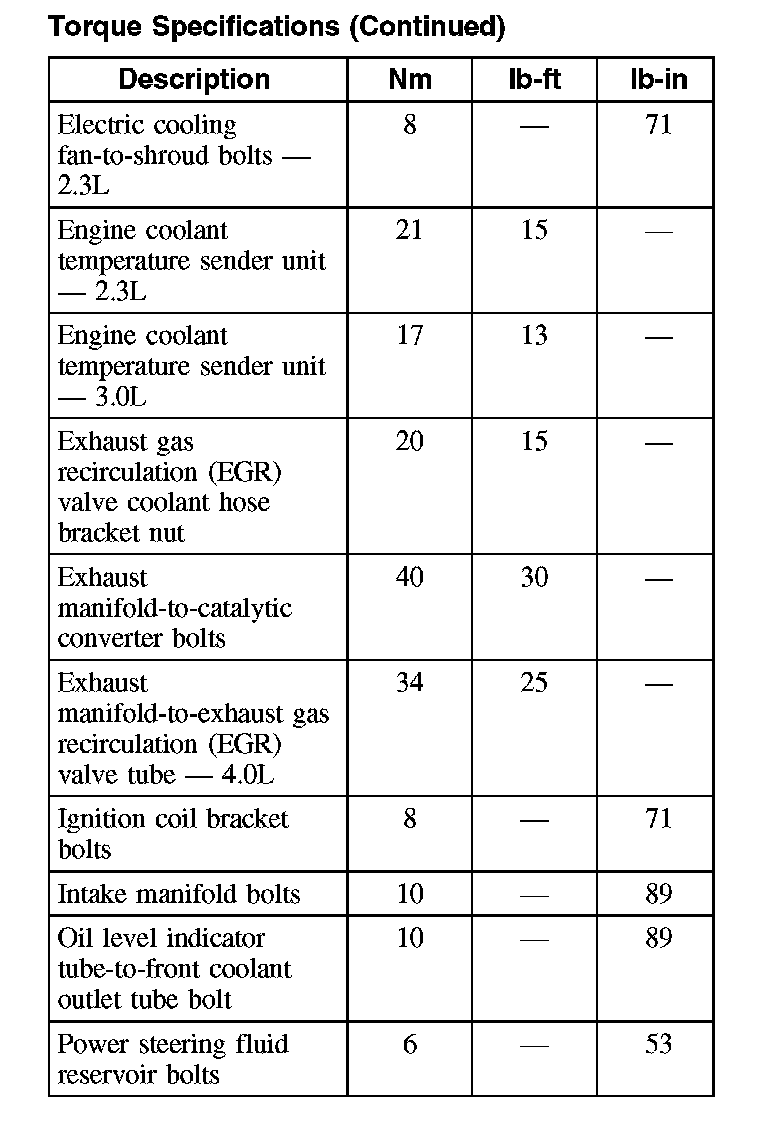

Torque Specifications (Part 3):

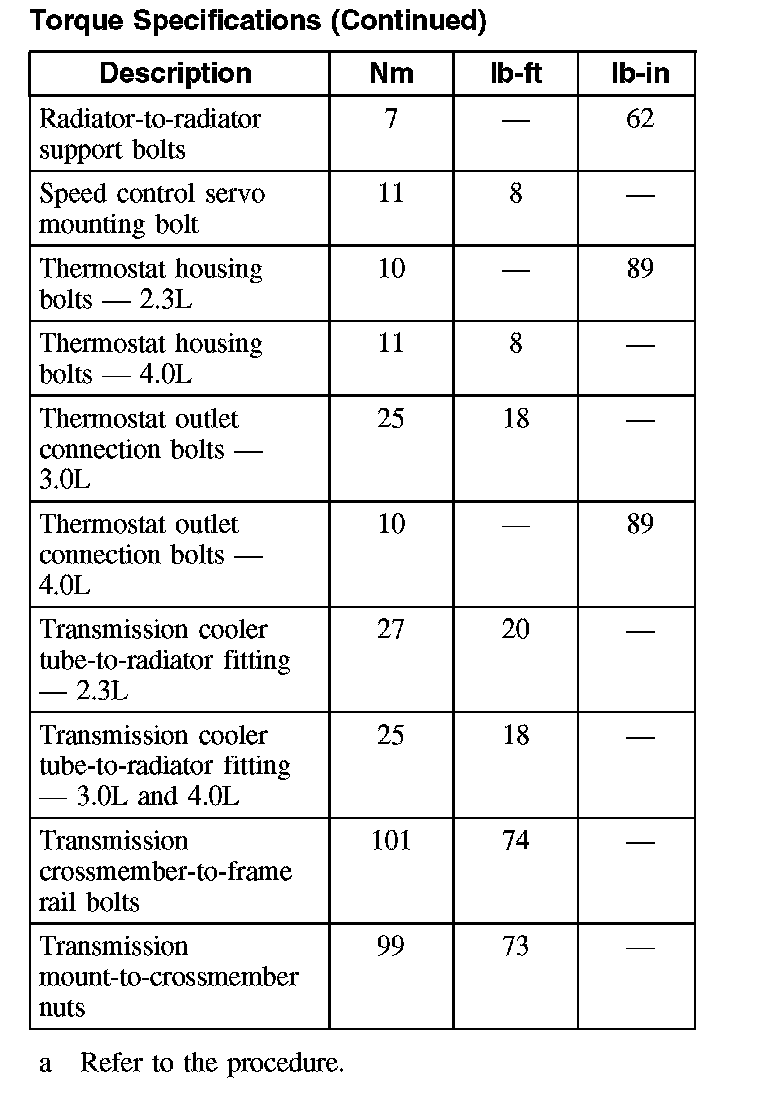

Torque Specifications (Part 4):
