Ignition Switch: Service and Repair

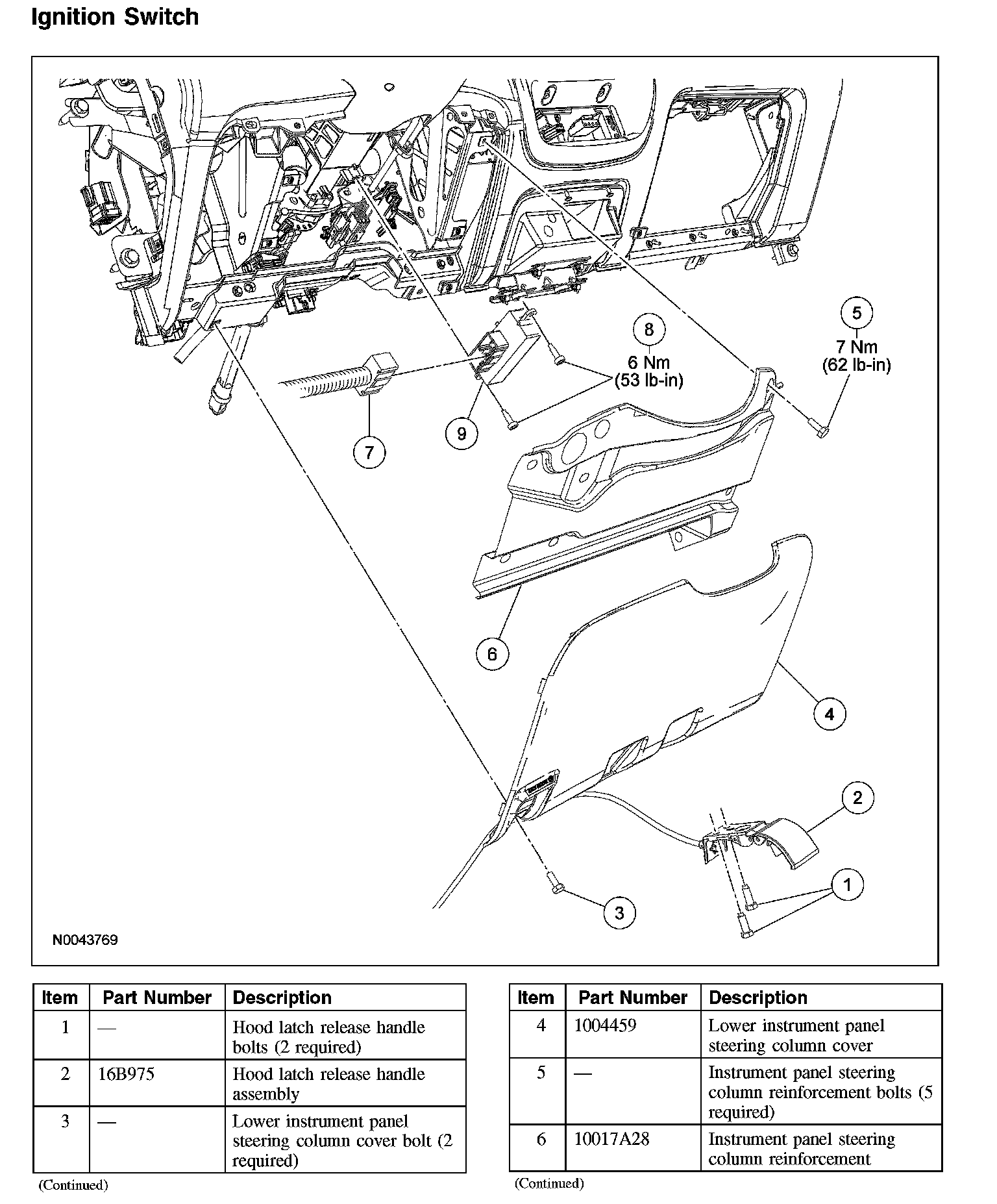

Ignition SwitchIgnition Switch (Part 1):

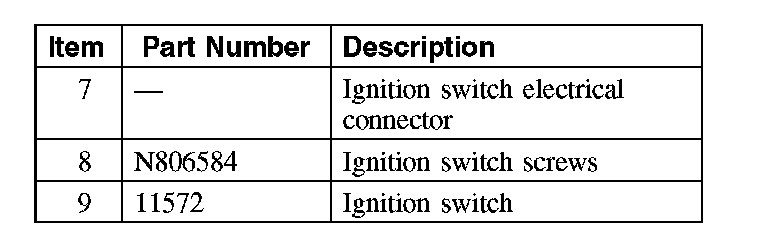

Ignition Switch (Part 2):
Removal and Installation
1. Depower the supplemental restraint system (SRS). For additional information, refer to Air Bag Systems.
2. Remove the 2 bolts and position the hood latch release handle aside.
3. Remove the screws and the lower instrument panel steering column cover.
4. Remove the 3 instrument panel steering column opening cover reinforcement bolts and the reinforcement panel.
^ To install, tighten to 7 Nm (62 inch lbs.)
5. Disconnect the ignition switch electrical connector.
6. NOTE: The ignition switch should be in the OFF position.
Remove the 2 ignition switch screws and the ignition switch.
^ To install, tighten to 6 Nm (53 inch lbs.)
7. To install, reverse the removal procedure.
8. Repower the supplemental restraint system (SRS). For additional information, refer to Air Bag Systems.
