Master window adjust switch (14540): Schematic

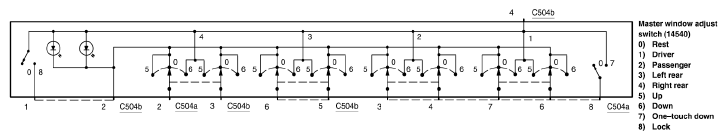

Fig 1: Master Window Adjust Switch (14540) - Schematic

G05177862

Courtesy of FORD MOTOR CO.
