Seat Backrest - Front: Notes

NOTE: Driver seat shown, passenger seat similar.

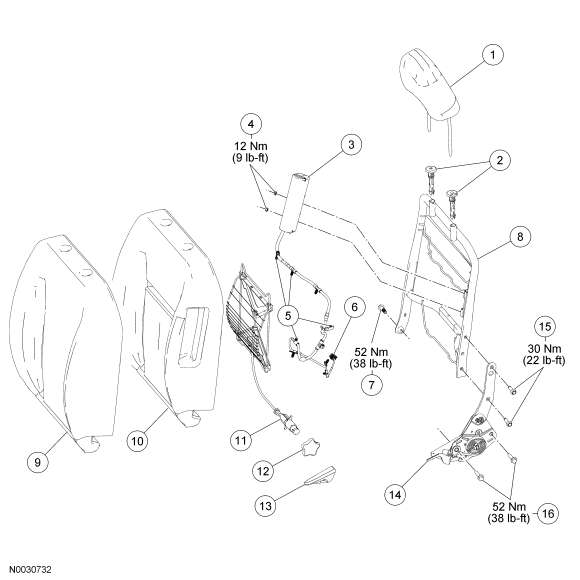

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Headrest assembly
2	610A16	Headrest guides (2 required)
3	611D10	Side airbag module assembly (if equipped)
4	-	Side airbag module nuts (2 required) (part of 611D10) (if equipped)
5	-	Side airbag module wiring harness retainers (part of 611D10) (if equipped)
6	-	Side airbag module wiring harness electrical connector (part of 611D10) (if equipped)
7	617D74	Backrest pivot bolt
8	61018	Backrest frame assembly
9	64416	Backrest trim cover
10	64810	Backrest foam pad
11	65500	Lumbar adjuster assembly (if equipped)
12	62622	Lumbar adjuster knob (if equipped)
13	620A90	Recliner handle
14	62649/62648	Recliner assembly
15	W705486	Recliner-to-backrest frame bolts (2 required)
16	N804266	Recliner-to-seat track bolts (2 required)
