Seat - Front: Notes

NOTE: Driver seat shown, passenger seat similar.

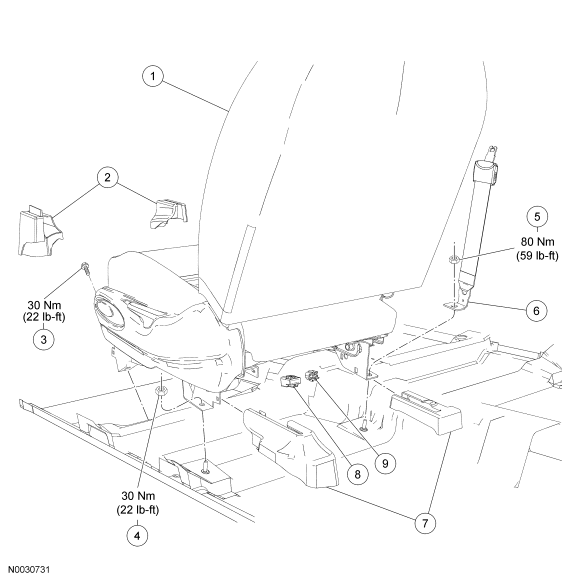

Fig 1: Front Seat Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front seat
2	-	Seat-to-floor bolt covers, driver seat (2 required) (part of 61749/61748)
3	N802188	Seat-to-floor bolt (2 required)
4	N800937	Seat-to-floor nut, outboard
5	N800251	Seat-to-floor nut, inboard
6	611B60	Front center seat safety belt and buckle assembly (if equipped)
7	-	Seat-to-floor nut covers (2 required) (part of 61749/61748)
8	-	Front seat wiring harness electrical connector (part of 14A699)
9	-	Side air bag module wiring harness electrical connector (if equipped) (part of 611D10)
