Hydraulic Control Unit (HCU): Notes
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |

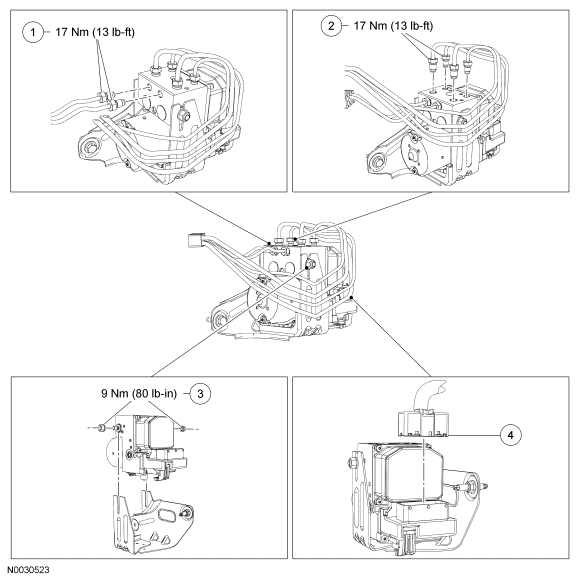

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake master cylinder-to-hydraulic control unit (HCU) tube fittings |
| 2 | - | HCU output tube fittings |
| 3 | N800251-S | HCU-to-bracket mounting nuts |
| 4 | - | HCU electrical connector |
