Exhaust Gas Recirculation (EGR) System Components - Exploded View

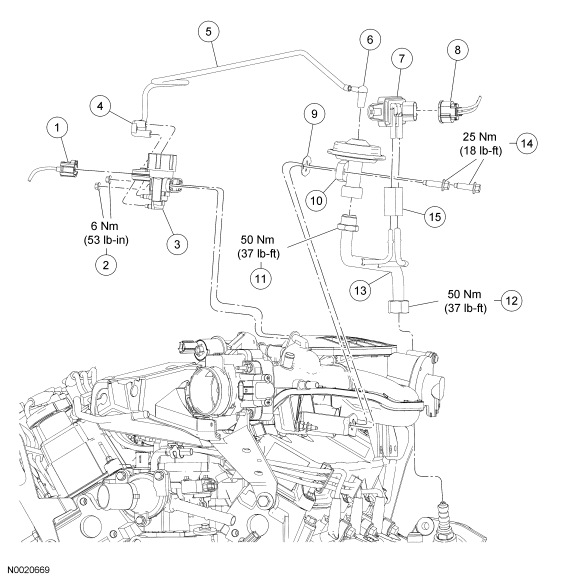

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Exhaust gas recirculation (EGR) vacuum regulator valve electrical connector |
| 2 | N620479 | EGR vacuum regulator valve nuts (2 required) |
| 3 | 9J489C | EGR vacuum regulator valve |
| 4 | - | Vacuum tube connector-to-EGR vacuum regulator valve (part of 9E498) |
| 5 | 9E498 | EGR vacuum tube |
| 6 | - | Vacuum tube connector-to-EGR valve (part of 9E498) |
| 7 | 9E444A | Differential pressure feedback EGR sensor |
| 8 | 14A464 | Differential pressure feedback EGR sensor electrical connector |
| 9 | 9D476B | EGR valve gasket |
| 10 | 9E444A | EGR valve |
| 11 | - | Exhaust manifold-to-EGR valve tube fitting (part of 9D477E) |
| 12 | - | Exhaust manifold-to-EGR valve tube nut (part of 9D477E) |
| 13 | 9D477E | Exhaust manifold-to-EGR valve tube |
| 14 | W500224 | EGR valve bolts (2 required) |
| 15 | 9P761A | Differential pressure feedback EGR sensor vacuum hoses (2 required) |
- For additional information, refer to the appropriate procedures.
