Positive Crankcase Ventilation (PCV) System Components - Exploded View

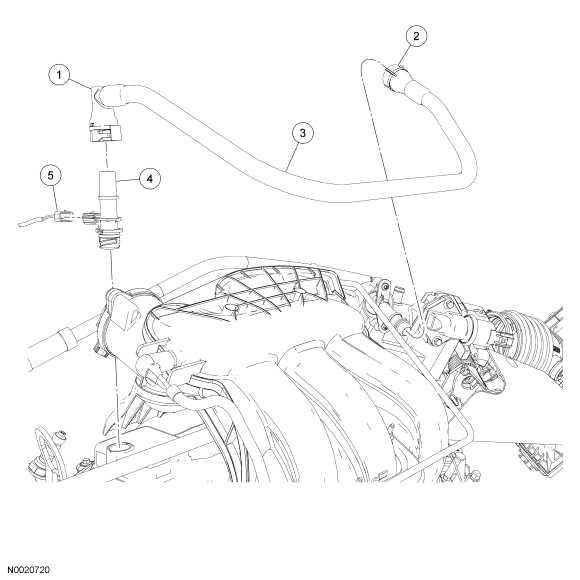

Fig 1: Exploded View Of Positive Crankcase Ventilation (PCV) System Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Crankcase ventilation tube-to-positive crankcase ventilation (PCV) valve quick connect coupling (part of 6758)
2	-	Crankcase ventilation tube-to- intake manifold quick connect coupling (part of 6758)
3	6758	Crankcase ventilation tube
4	6A666	Positive crankcase ventilation (PCV) valve
5	14A464	PCV valve electrical connector

1. For additional information, refer to the appropriate procedures.
