Cylinder Head - RH: Notes

Material

Item Specification
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -

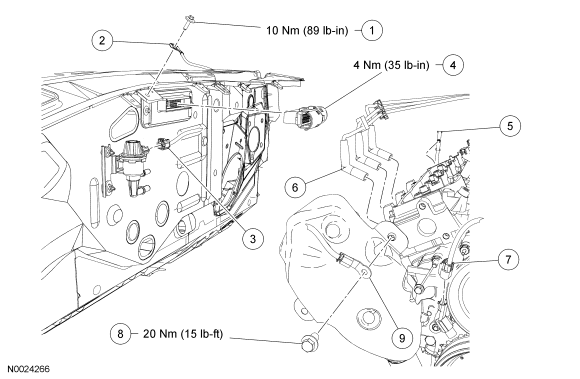

Fig 1: Exploded View Of Firewall Components With Torque Specifications
GF0019580Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N808779 Ground wire bolt
2 - Ground wire (part of 12B637)
3 14A464 Evaporative emissions (EVAP) canister purge valve electrical connector (part of 12B637)
4 14A464 Powertrain control module (PCM) electrical connector (part of 12B637)
5 14A163 Wiring retainer (part of 12B637)
6 12280 RH spark plug wire (3 required)
7 14A464 Crankshaft position (CKP) sensor electrical connector (part of 12B637)
8 N605799 Catalytic converter heat shield-to-RH cylinder head bolt
9 14B060 Ground wire

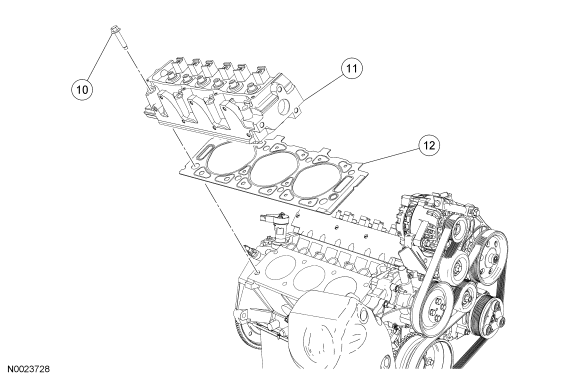

Fig 2: Exploded View Of Right Cylinder Head With Torque Specifications
GF0019581Courtesy of FORD MOTOR CO.
Item Part Number Description
10 W705608 RH cylinder head bolt (8 required)
11 6049 RH cylinder head
12 6051 RH cylinder head gasket
