Oil Level Indicator and Tube: Notes

Material

Item Specification
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

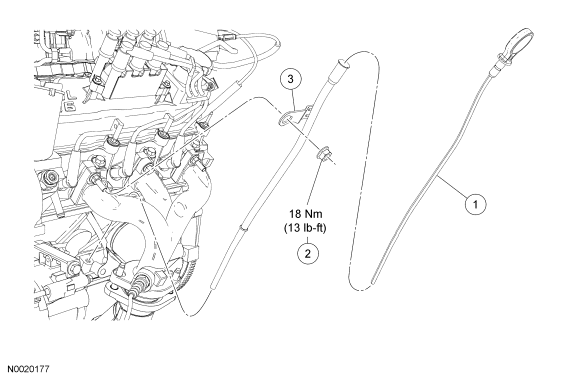

Fig 1: Exploded View Of Oil Level Indicator & Tube With Torque Specifications
GF0019572Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6750 Oil level indicator
2 N621939 Oil level indicator tube nut
3 6754 Oil level indicator tube
